Assembly

Step 4: Assemble the Leg Extension

Parts

• Leg Extension (#24)

• Leg Extension Cross Tube (#25)
Hardware

• (2) 3/8” x 3” Hex Head Bolt (#4)

• (4) 3/8” Washers (#10)

• (2) 3/8” Nut (#11)
Tools
• (2) Adjustable Wrenches (not included)

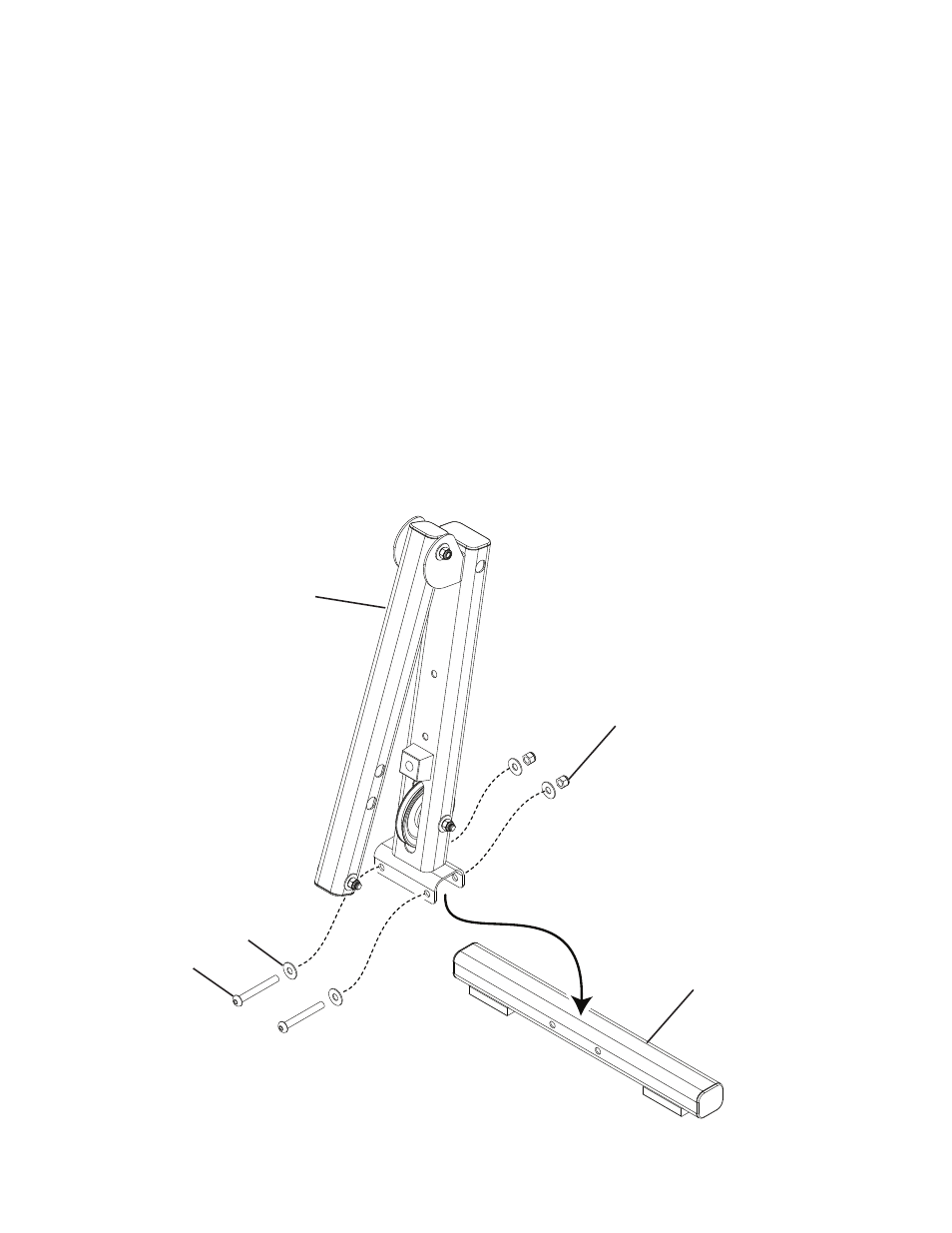

4-1 Set the bracket end of the Leg Extension onto the Leg Extension Tube and align the bolt holes.
4-2 Install and tighten the hardware.
Note: Do not unwrap the cable from the pulley.

Assembly Manual
