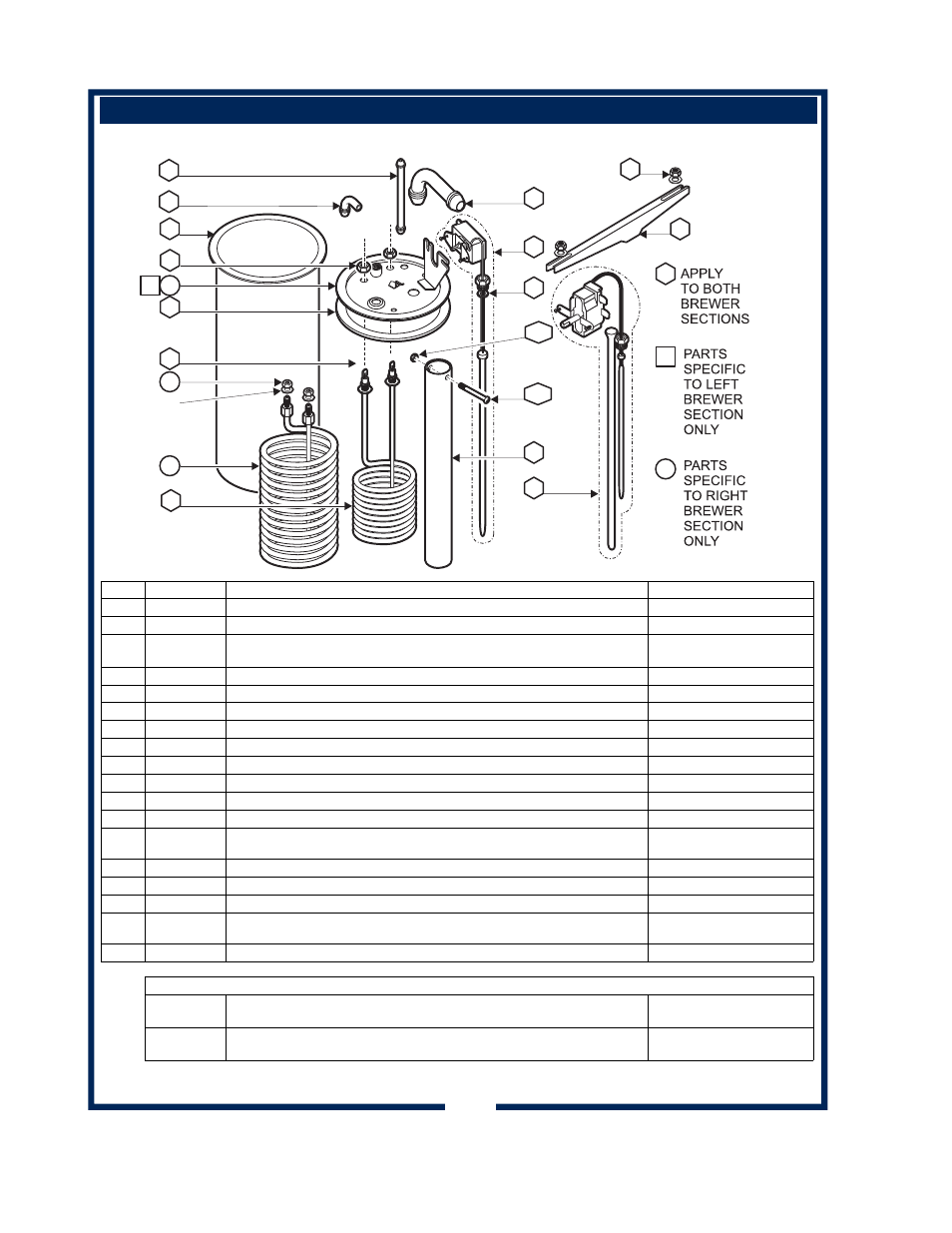

EXPLODED VIEW & PARTS LIST
HOT WATER TANK ASSEMBLY
18
625
75873
Owner
s M
anual G
ourmet
1000 Dual
Airpo
t Br
ewers
68
56
57
56
61
50
52
55
66
66a
13
66b
59
60
14
ALTERNATE
50
62
62
54
67
58
ITEM
PART NO.
DESCRIPTION
USED ON
13
8043-5
HOLD-DOWN STRAP
BOTH SIDES
14
83457
NUT, HEX 8-32 KEPS
BOTH SIDES
50
8512-51
86280
THERMOSTAT (BLACK BODY - INCL. SEAL & MOUNTING SCREWS)
THERMO (ALT) (GRAY BODY - INCL. TUBE & MOUNTING SCREWS)
BOTH SIDES
52
8512-41
SEAL WASHER, THERMO CAP TUBE (ONLY)
BOTH SIDES
54
8043-12
TANK COVER GASKET
BOTH SIDES
55
8043-28
NUT HEX 1/2-20 BRASS
BOTH SIDES
56
8043-30
SEAL GASKET, ELEMENT OR WATER COIL
BOTH SIDES
57
8941-21
NUT HEX 7/16-20 BRASS
RIGHT SIDE ONLY
58
8540-6
HOT WATER COIL
RIGHT SIDE ONLY
59
8043-8
TUBE, BASIN OUTLET/TANK INLET, SILICONE
BOTH SIDES
60
8043-15
TUBE, VENT, SILICONE
BOTH SIDES
61
8043-11
ELBOW, TANK OUTLET, SILICONE
BOTH SIDES
62
8512-45
8514-68
TAN COVER, PLATE ONLY, 6 HOLES
TAN COVER, PLATE ONLY, 8 HOLES
LEFT SIDE
RIGHT SIDE
66
8043-24
WATER INLET TUBE
BOTH SIDES
66a
8543-74
NUT, HEX 4-40 SS
BOTH SIDES
66b
8543-73
SCREW 4-40 x 1 PAN HEAD
BOTH SIDES
67
8549-1
8716-1
HEATING ELEMENT (120V, 2000W)
HEATING ELEMENT (240V, 3500W)
8790, 8792
8791, 8793
68
8043-10
TANK BODY
BOTH SIDES
8549WF-
300
INCLUDES: MOUNTED THERMO, 120V 2000W HEATING ELEMENT &
HOT WATER COIL)
8790, 8792
8716-300
INCLUDES: MOUNTED THERMO, 230V 3800W HEATING ELEMENT &
HOT WATER COIL)
8791, 8793
TANK COVER ASSEMBLY
