8
System Diagrams (cont.)
SPEAKER OUT SPEAKER IN
16V DC
IN
SUB
OUT
+ - - + + + - - + - + -
12V Trigger /
Video Pass
Through
12V Trigger /
Video In
TV (local source)
LCAi220 (external connections)
LCAi220 (in-wall connections)
Local Speakers
16VDC
Power Supply
(Included
w/LCAi220)
RVC90i
Volume
Control
LCApi
(Included
w/LCAi220)
Powered
Subwoofer
(optional)
Central Music Source (Room 2 output)

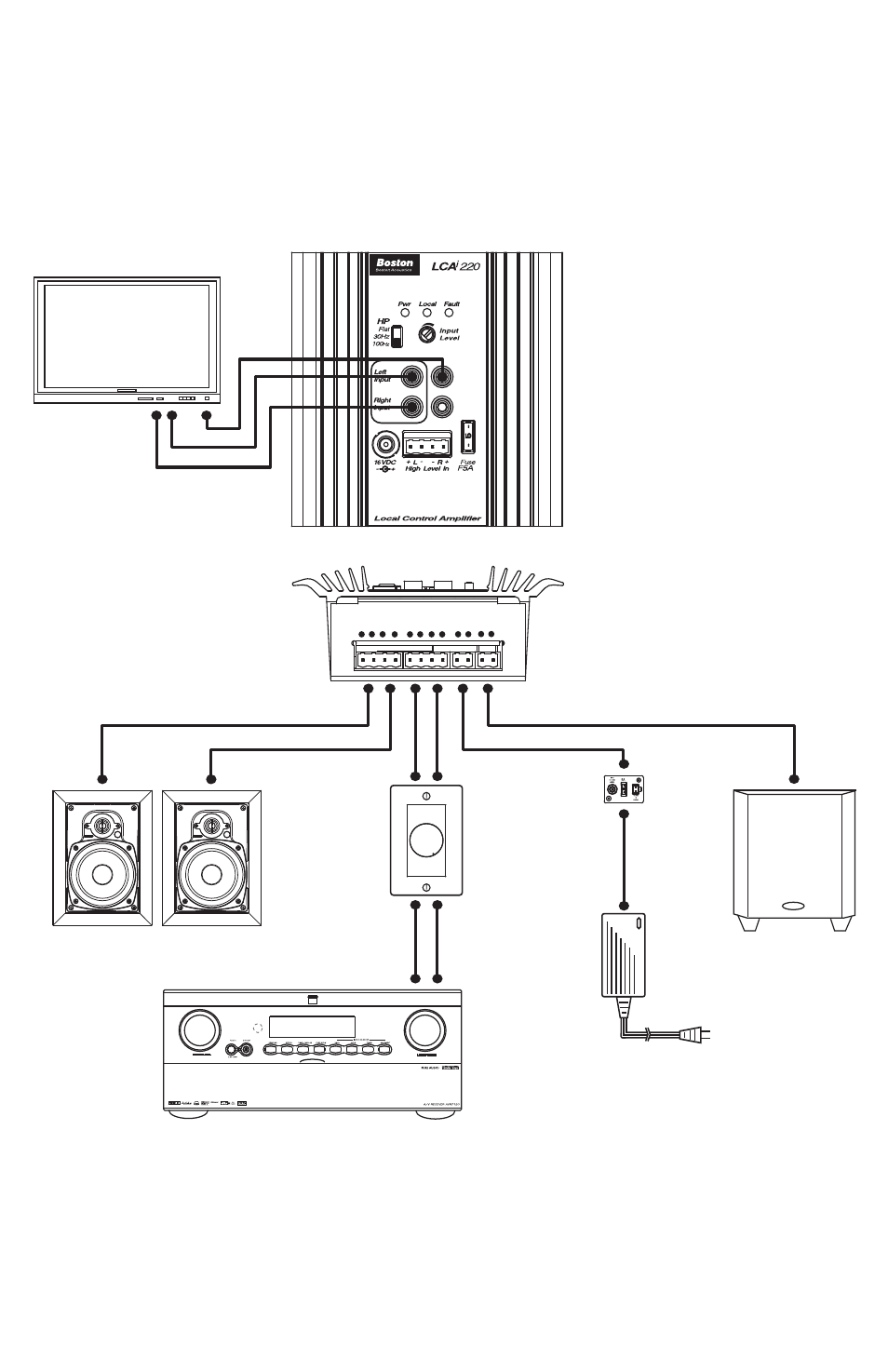

System 2; Simple Configuration - Rear Power Input
This example is similar to the System 1 diagram except the power supply from the LCAi220 is
connected to the rear input with the power routed from a central location (usually located with
the central music source equipment). Also a RVC90i volume control is added for volume
control of the central music source when the LCAi220 is in bypass mode.
