Figure #5
11
Figure #6
Installing / Rear Connections
(cont.)

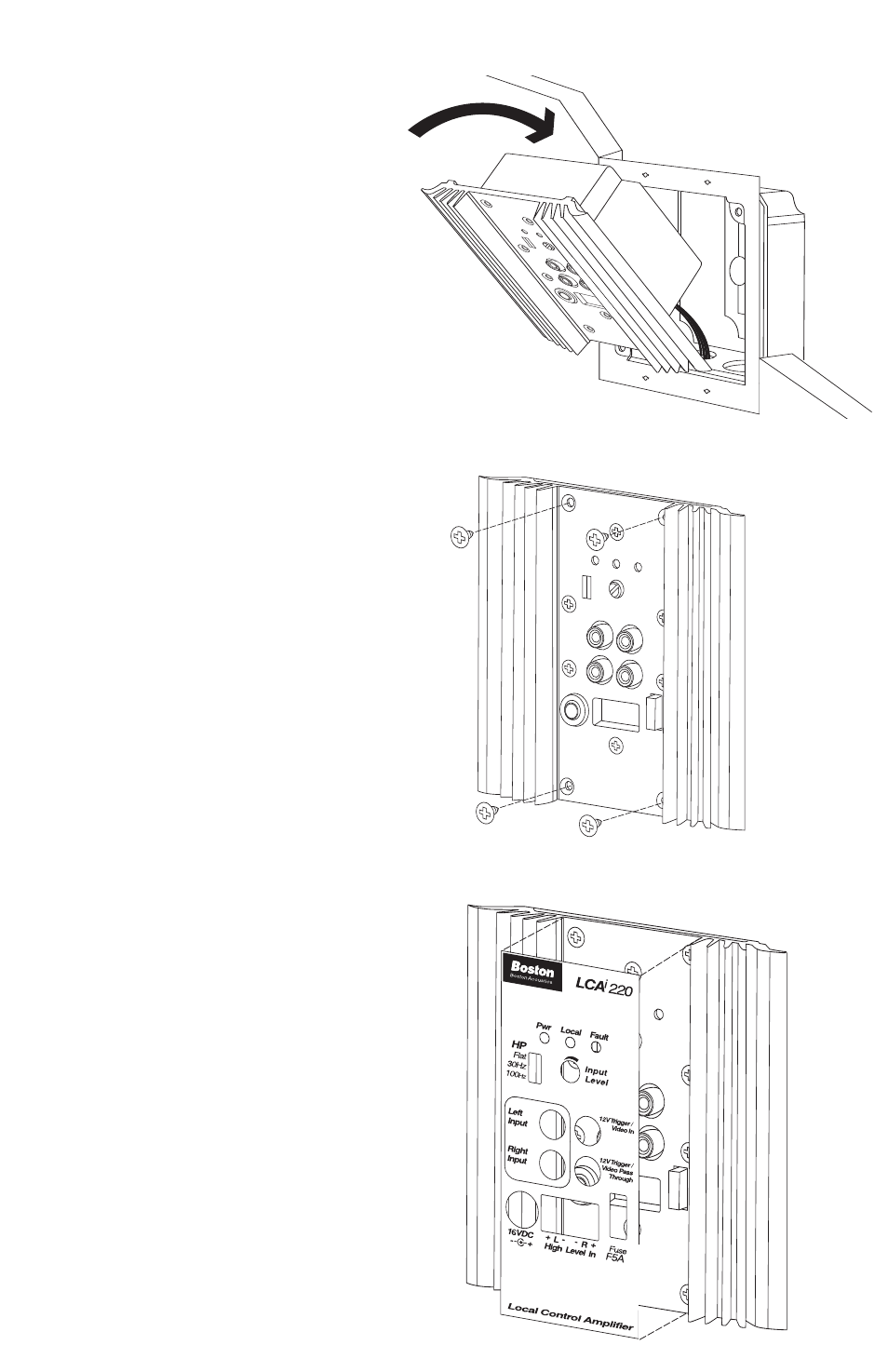

5. Install the LCAi220 into the junction
box bottom first. Proceed slowly
making sure not to pinch any of the
wires. (Figure #5)
6. Fasten the LCAi220 to the bracket
using the four 1 ⁄
4
-inch (7mm) screws.
(Figure #6)
7. Install the faceplate label to the
LCAi220. (Figure #7)
Figure #7
