THE BADGER ® -RADIX ® User Guide
February 2007
Page 65 of 73
Programming DIALOG Modules
To program Badger Meter’s previous version of touch product, Badger DIALOG
® , select

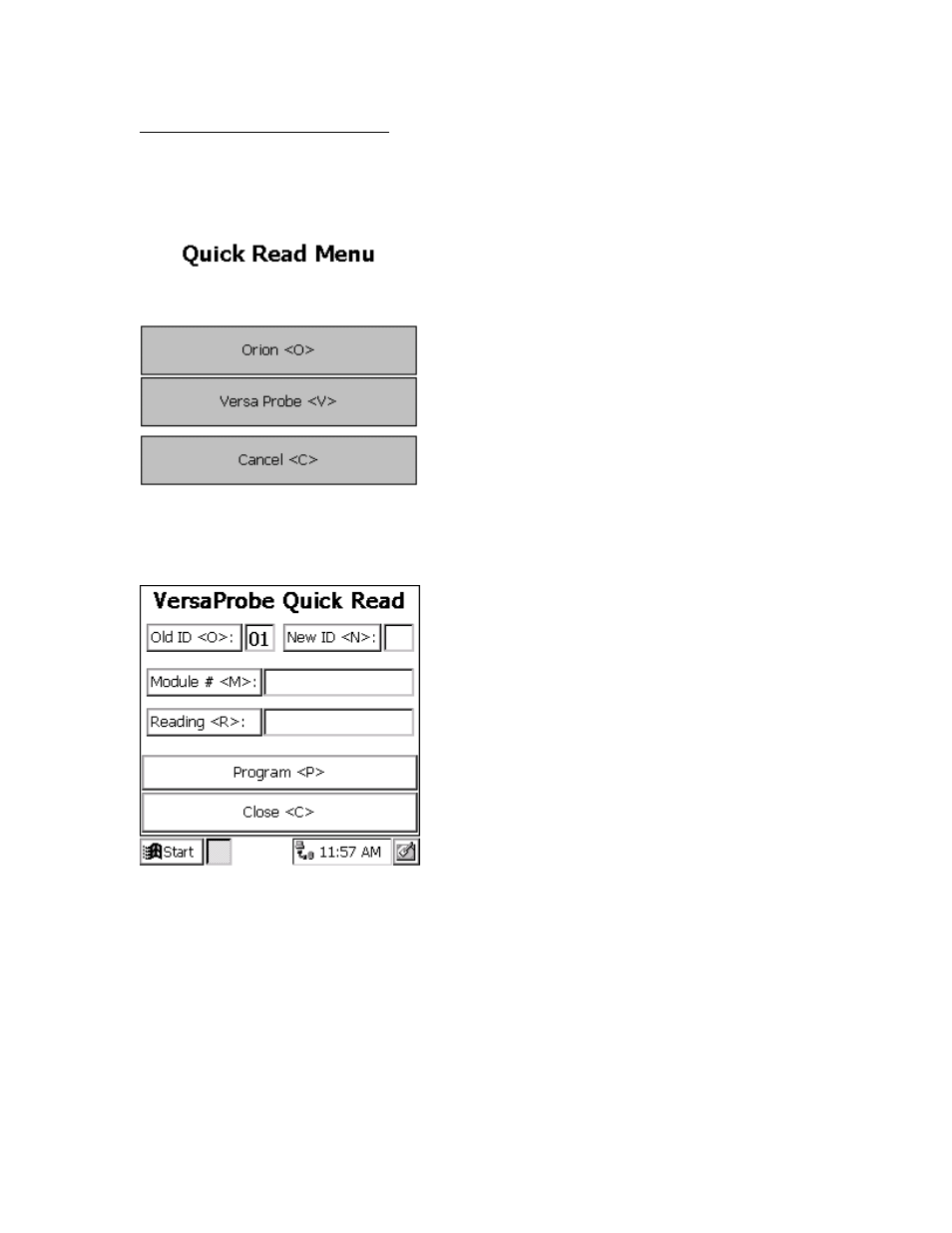

Quick Read/Program Meters to display the choice of technologies from the Badger-Radix
Main Menu.
Choose the technology of the meter reading module. Choose VersaProbe “V” since that
wand is the one used in Programming Badger DIALOG modules. You’ll see this screen.
To program a Badger DIALOG module’s reading and clear its tamper status, you must
first get the specific information about that module. The easiest way to do that is to
perform a Quick Read. Connect the VersaProbe™ to the Badger-Radix, place the sensor
on the module, and squeeze and release the trigger on the probe. The probe will read the
module and display the current status on the screen.
