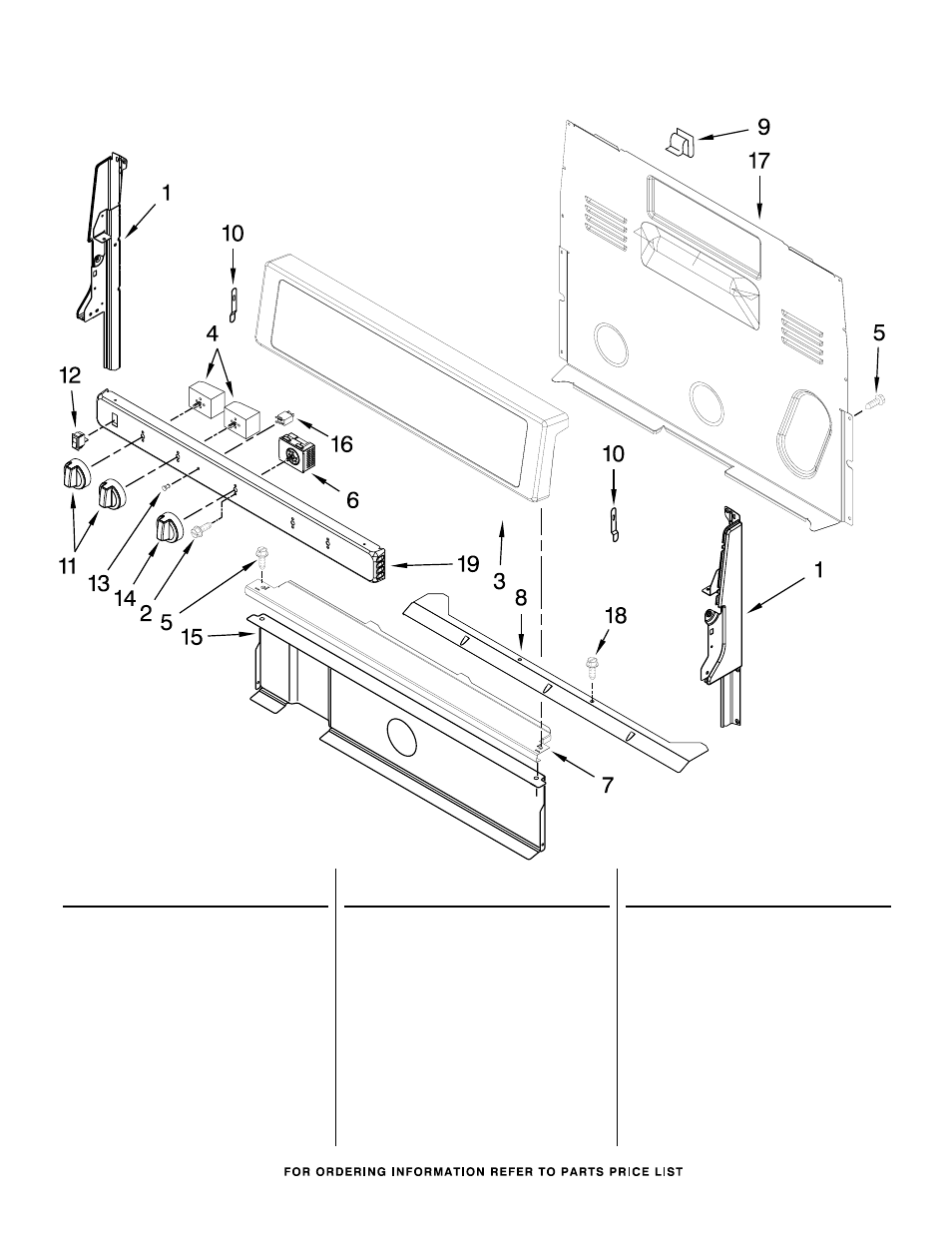

CONTROL PANEL PARTS
For Models: WFC340S0AW0, WFC340S0AB0, WFC340S0AS0
(White) (Black) (Stainless)
W10489549
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 Endcap
W10184433 White Left
W10184434 White Right
W10184437 Black Left
W10184438 Black Right
2 3400882 Screw
3 Panel, Console
W10370110 White
W10370109 Black
W10339409 Stainless
4 Switch, Infinite
3148953 Use W/ 8" Element
3148951 Use W/ 6" Element
5 3196178 Screw
6 W10363198 Switch, Selector
7 W10182322 Bracket,
Console Mounting
8 W10356438 Shield, Wiring
9
8273564 Clip
10 3196200 Clip, Spring
11 Knob, Infinite
W10339448 White
W10339449 Black
12 Switch, Rocker
3149360 White
3148564 Black
13 3196068 Lens, Indicator
14 Knob, Thermostat
W10430815 White
W10430816 Black
15 W10134247 Shield, Heat
16
8523265 Indicator, 125V
17 8272473 Cover, Upper Rear
18 3196169 Screw
19 Panel, Manifold
W10356276 White
W10356277 Black
