Neff I89DK62N0B User Manual
Neff Accessories for water
This manual is related to the following products:
Table of contents
Document Outline

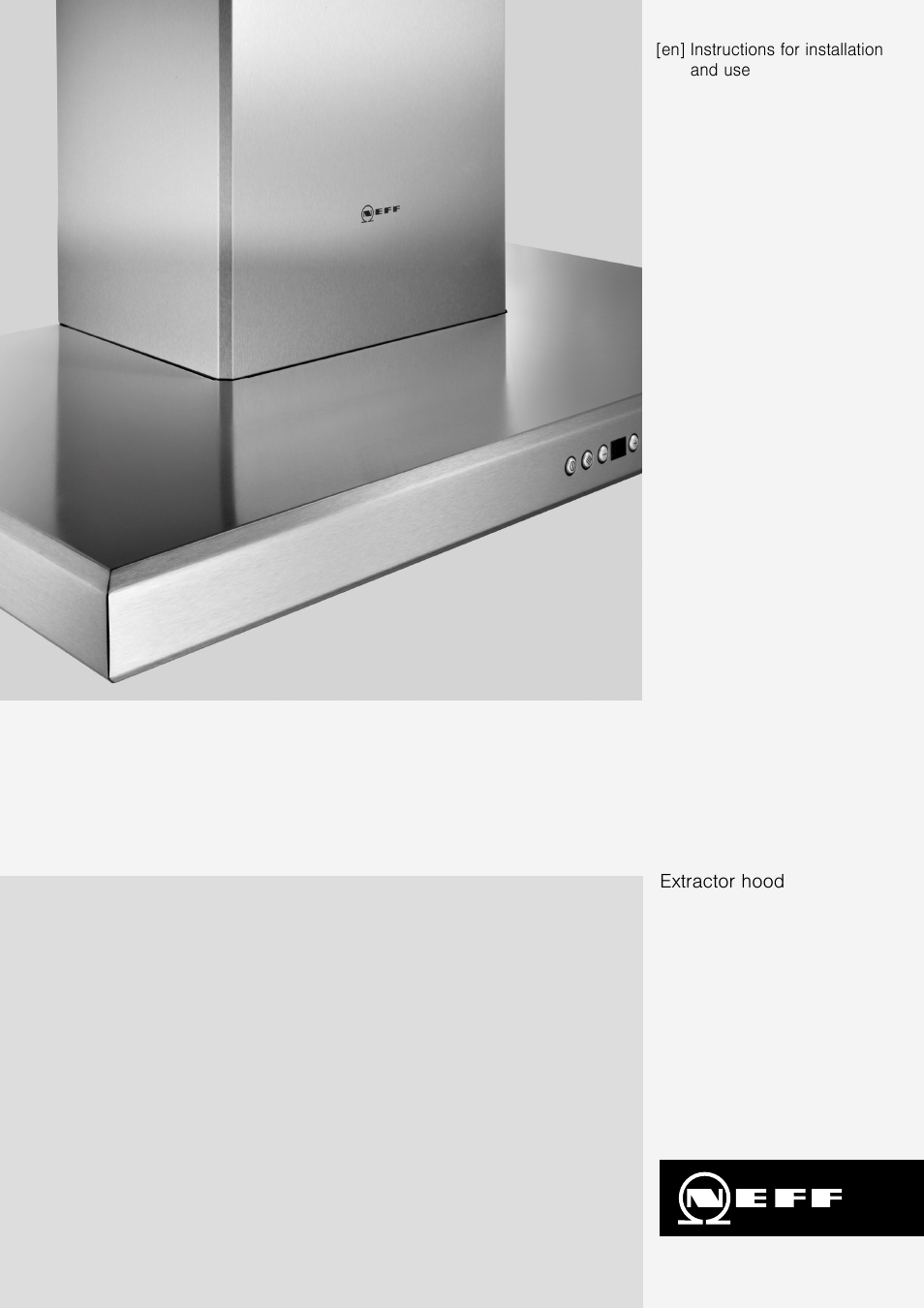

- [en] Instructions for installation and use
- Ú Table of contents[en] Instructions for installation and use
- Instruction manual
- : Important safety information
- Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
- The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
- This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improp...
- This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...
- Children must not play with the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
- Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
- Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
- This appliance is not intended for operation with an external clock timer or a remote control.
- Danger of suffocation!
- Danger of death!
- Risk of poisoning from flue gases that are drawn back in.
- Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.
- Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal- operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air t...
- In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked ...
- Safe operation is possible only when the partial vacuum in the place where the heat- producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that can...
- In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
- Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.
- Risk of fire!
- Risk of burns!
- Risk of injury!
- Risk of electric shock!
- Causes of damage
- Caution!
- Always replace faulty bulbs to prevent the remaining bulbs from overloading.
- Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth.
- Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls.
- Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents.
- Risk of damage from returning condensate. Install the exhaust duct in such a way that it falls away from the appliance slightly (1° slope).
- Unpack the appliance and dispose of the packaging in an environmentally-responsible manner.
- Environmental protection
- Circulating-air mode
- Control panel model 1
- Setting the fan
- Intensive setting
- Fan run-on time
- AirFresh function
- Lighting
- Saturation display
- Audible signal
- Control panel model 2
- Setting the fan
- Intensive setting
- Fan run-on time
- AirFresh function
- Noise reduction function
- Lighting
- Saturation display
- Audible signal
- Cleaning agents
- Cleaning the metal mesh grease filters
- Removing metal mesh grease filter
- 1. Open the lock and fold down the metal grease filter. While doing this, place the other hand under the metal grease filter.
- 2. Take the metal grease filter out of the holder.
- For edge extraction filters, pull the metal grease filter downwards. While doing this, place the other hand under the metal grease filter.
- For additional filters, open the lock and fold down the metal grease filter. While doing this, place the other hand under the metal grease filter.
- Installing the metal mesh grease filter
- Malfunction table
- Replacing bulbs
- LED lights
- Defective LED lights may be replaced by the manufacturer, their customer service or a qualified technician (electrician) only.
- Trust the expertise of the manufacturer, and rest assured that the repair will be carried out by trained service technicians using original spare parts for your domestic appliance.
- Accessories for circulating-air mode
- Notes
- Basic equipment: Starter set for circulating-air mode - narrow
- Throw-away filter
- Basic equipment: Starter set for circulating-air mode - wide
- Throw-away filter
- Basic equipment: CleanAir recirculation module - narrow
- Throw-away filter
- Basic equipment: CleanAir recirculation module - wide
- Throw-away filter
- Installation instructions
- Installation instructions
- : Important safety information
- Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
- The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
- The width of the extractor hood must correspond at least with the width of the hob.
- For the installation, observe the currently valid building regulations and the regulations of the local electricity and gas suppliers.
- When conveying the exhaust air, official and legal regulations (e.g. state building regulations) must be followed.
- Risk of death!
- Danger of death!
- Risk of poisoning from flue gases that are drawn back in.
- Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.
- Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal- operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air t...
- In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked ...
- Safe operation is possible only when the partial vacuum in the place where the heat- producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that can...
- In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
- Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.
- Danger of death!
- Risk of fire!
- Grease deposits in the grease filter may catch fire. The specified safety distances must be observed in order to prevent an accumulation of heat. Observe the specifications for your cooking appliance. If gas and electric hobs are operated together, t...
- Only one side of the appliance may be installed directly next to a high-sided unit or a wall. The distance between the appliance and wall or high-sided unit must be at least 50 mm.
- Risk of injury!
- Risk of electric shock!
- Risk of electric shock!
- Danger of suffocation!
- General information
- Exhaust duct
- Preparing the ceiling
- Electrical connection
- : Risk of electric shock!
- The required connection data can be found on the rating plate inside the appliance; to do this, remove the metal mesh grease filter.
- Length of the cable: approx. 1.30 m
- This appliance complies with the EC interference suppression regulations.
- : Risk of electric shock!
- Installation
- Fitting the upper support frame
- 1. Before fitting, determine the total height of the support frame and mark the screw holes.
- Note
- 2. On the ceiling, mark the centre point of the appliance.
- 3. Using the enclosed template, mark the positions for the screws on the ceiling.
- 4. Drill four 8 mm diameter holes to a depth of 80 mm for the fasteners and press in the wall plugs flush with the ceiling.
- 5. Fasten the upper part of the support frame to the ceiling with 4 screws.
- Note
- Note
- 1. Before fitting, determine the total height of the support frame and mark the screw holes.
- Fitting the upper support frame
- Fitting the lower support frame
- Fitting the appliance
- Connecting the pipes
- Attaching the flue duct
