Operation

21

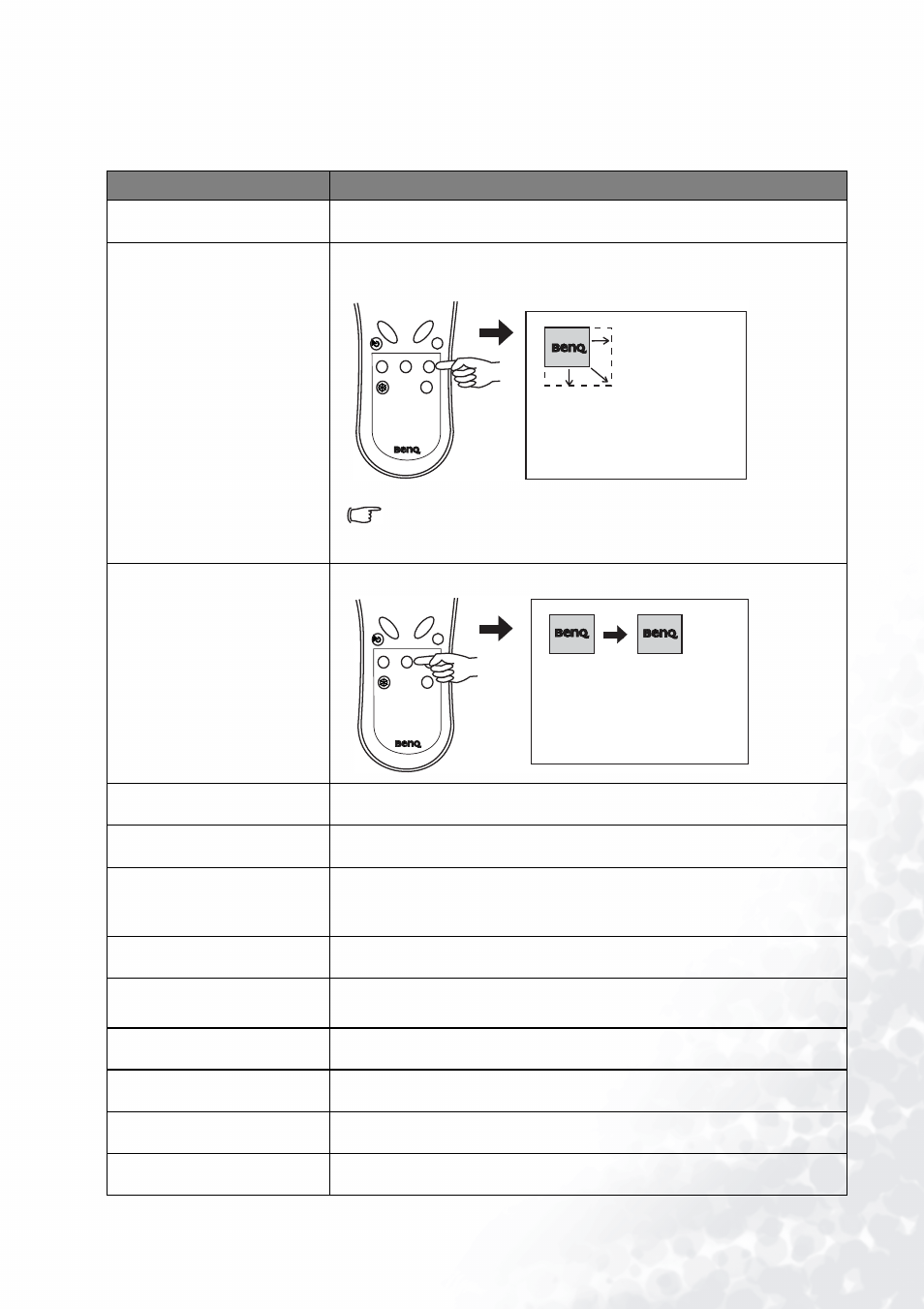

5. PIP Menu

These functions are available only when the input mode is PC and the PIP source is Video or
S-Video.

FUNCTION

DESCRIPTION

PIP Source

Selects the source for the PIP.

PIP Size

Enables use of the

3 / 4 key to scroll through the four

alternatives: Off, Small, Medium, Large.

When the resolution of the PC signal is 1280x1024 (SXGA),

the selected Large PIP size will be reduced to the Medium

size.

PIP Position

Selects a desired position for the PIP.

H Position

Adjusts the horizontal position of the PIP image.

V Position

Adjusts the vertical position of the PIP image.

More Options

Enables use of the

3 / 4 key to select more PIP functions

including Brightness, Contrast, Color, Tint, Sharpness and
System.

Brightness

Adjusts the brightness of the PIP image.

Contrast

Adjusts the degree of difference between dark and light for the PIP
image.

Color

Increases or decreases the color range (R, G, B) of the image.

Tint

Adjusts the image to make it appear more red or blue.

Sharpness

Adjusts the image to make it appear sharper or softer

System

Selects PIP image systems: Auto, NTSC, PAL, SECAM.

PIP-Source

PIP-Pos

PIP-Size

PIP-Source

PIP-Pos

PIP-Size
