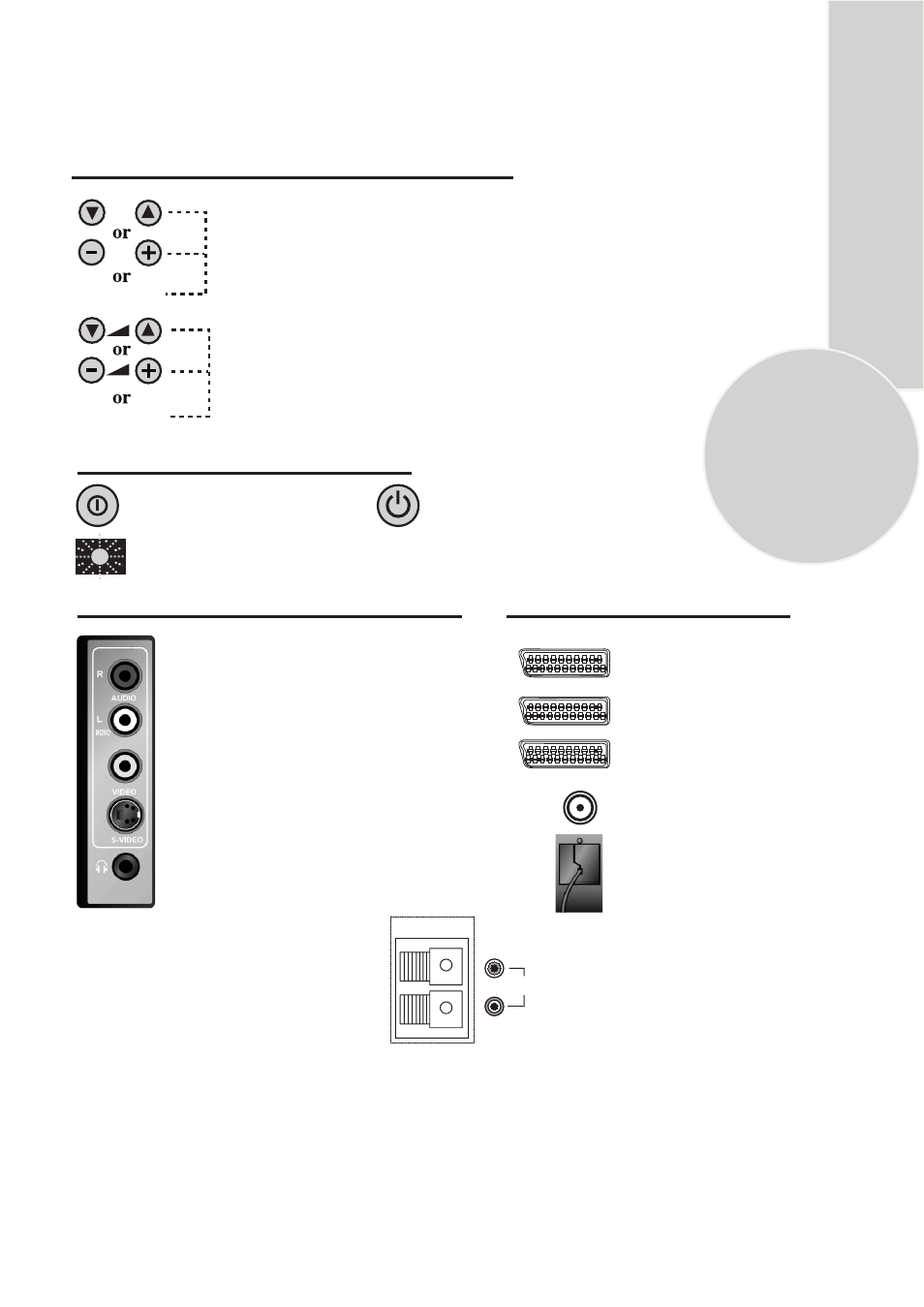

Control Unit
Front Panel
Program Down/Up button
Volume Down/Up button.
General
Program ON/OFF switch Stand by (Depends on model)
Stand by indicator
External Connections: (Front or side)
Right audio RCA (Red)
Left audio RCA/Mono RCA (White)
Video RCA (Yellow)
S-Video connection
Headphone socket
Please note
• See the external connections table on next page for available connections depending the
size and model of your TV set.
• Do not use Video RCA and S-Video connections at the same time, otherwise they will effect
the picture each other.
AV1 scart
(External connections: (Rear)
AV2 scart
Aerial socket
Power cable
AV3 scart (optional)
5
P- P+
V- V+
You may wish to connect
audio amplifier or any
similar devices to audio
out. The output is always
the current channel you
are watching.
AUDIO
OUT
R
L
SUBWOOFER
Optional
It is used for external
subwoofer in 33” televisions
