Underside

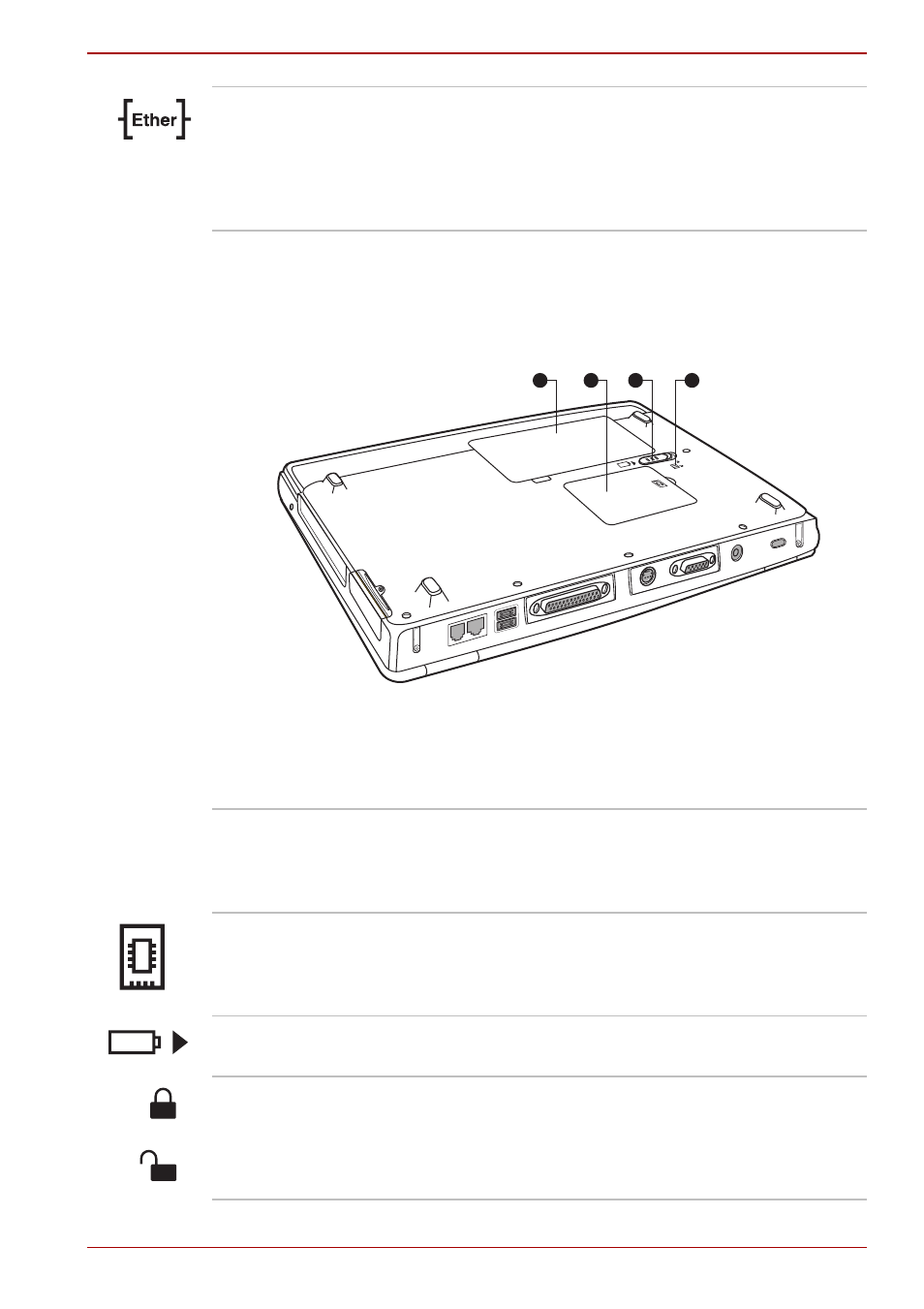

The following figure shows the underside of the computer. Make sure the
display is closed before turning over your computer.
The bottom of the computer
LAN Jack This jack lets you connect to a LAN. The
adapter has built-in support for Ethernet LAN
(10 megabits per second, 10BASE-T) and Fast
Ethernet LAN (100 megabits per second,
100BASE-TX). Two indicators built into the jack
let you see the LAN status.
1 2 3 4
1. Battery Pack
2. Expansion Memory Socket
3. Battery Pack Latch
4. Battery Pack Lock
Battery Pack The battery pack powers the computer when
the AC adapter is not connected. For detailed
information on the battery pack, refer to
Chapter 6, Power and Power-Up Modes.
Expansion Memory
Socket
Use this socket to install a memory module to
increase your computer's memory. Refer to the
Memory Expansion section in Chapter 8,
Optional Devices.
Battery Pack Latch Slide this latch to remove the battery pack. Will
not work if the Battery Pack Lock is engaged.
Battery Pack Lock When you slide this to the locked position, the
battery pack cannot be released even if you have
slid the battery pack latch to the open position.
