Installation

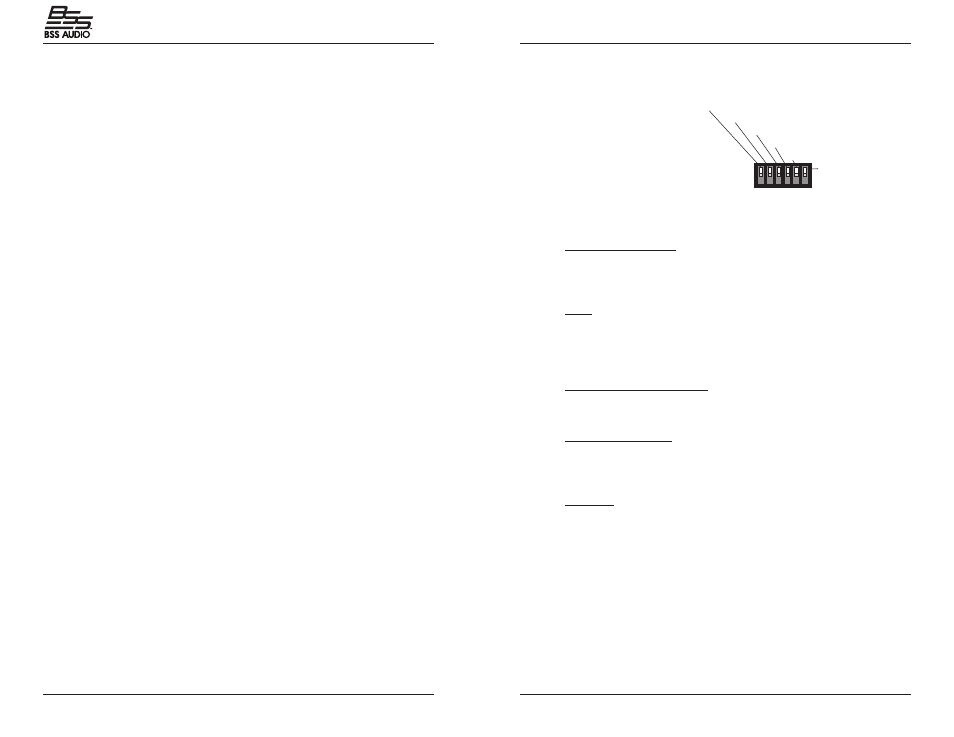

Set the 6-position switch
The 6-position switch is located
on the side of the media
converter.
• Use a small flat blade
screwdriver to set the
recessed switches.
• All switches are shown in
the default position, UP.
Note: Switch positions S2 and S3 work together to configure the media
converter for Pause conditions.
S1 Remote-Fault Detection
up Disabled
down Enable
S2 & S3 work in combination
Pause
10 sw position 2 up and 3 down: Symmetric
01 sw position 2 down and 3 up: Asymmetric
11 sw positions 2 and 3 up: Pause is OFF (default position)
00 sw positions 2 and 3 down: Symmetric and Asymmetric
S4 Transparent Link Pass-Through
up Enable Link Pass-Through
down Disable Link Pass-Through
S5 Fiber Auto-Negotiation
up Disable Fiber Auto-Negotiation for the fiber link
(default setting)
down Enable Fiber Auto-Negotiation for the fiber link
S6 Loop Back
up Disable RX/TX signal loop back (default setting)
down Enable RX/TX signal loop back
2. Pause (symmetric)
3. Pause (asymmetric)
4. Transparent Link Pass-Through
5. Auto-Negotiation
1. Remote Fiber Fault Detect
6. Loop Back
