Part names and functions 02
9
En

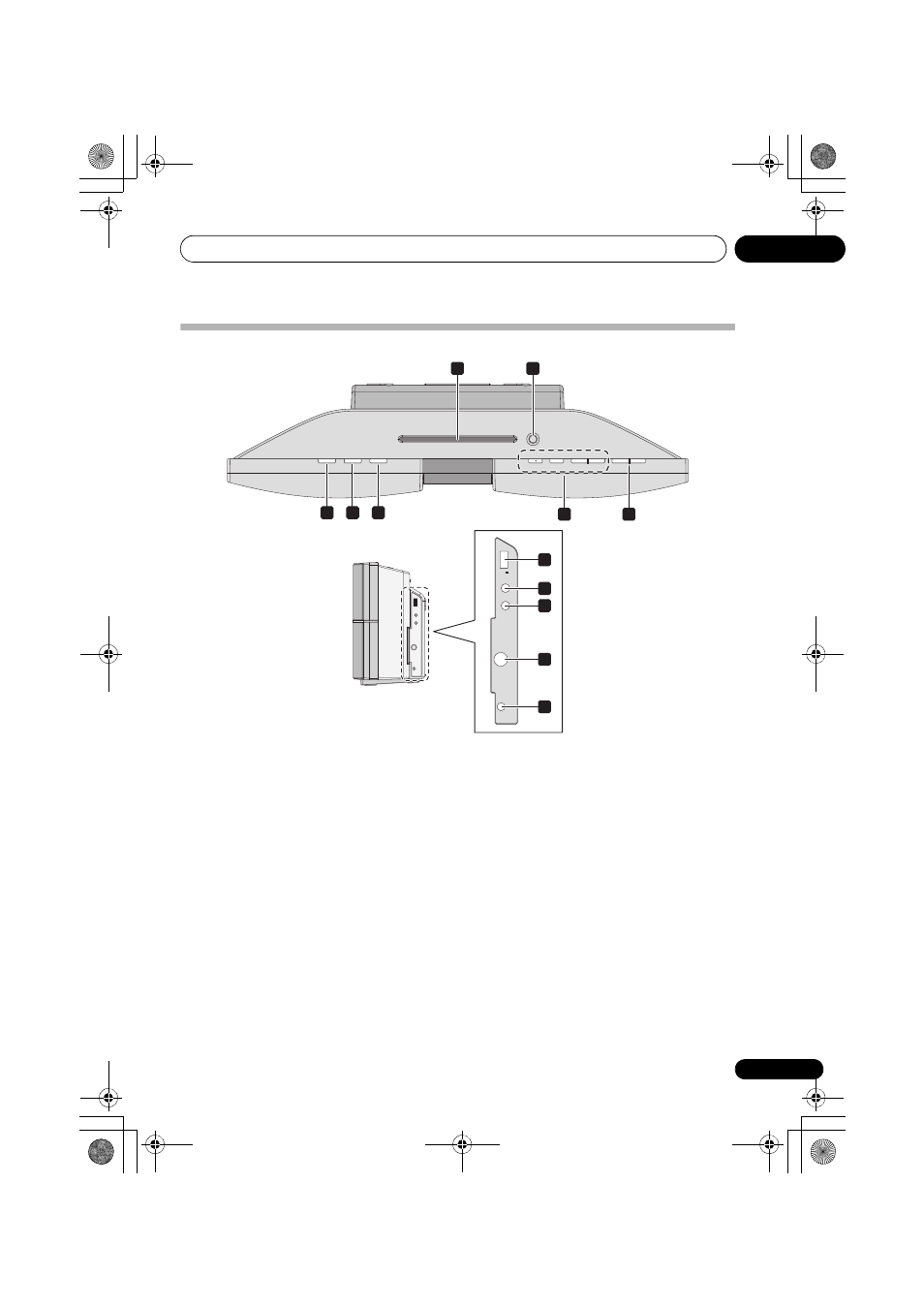

Top panel/Side panel
1  STANDBY/ON button
Switches the unit between standby and on (page 12).
2 INPUT button
Selects the input source.
3 SLEEP button
See Using the sleep timer on page 14.
4 Disc slot
5  EJECT
Eject the disc.
6 Playback control buttons
Select the desired track or file to be played back. Stop current
playback. Stop playback or resume playback from the point
where it was paused.
7 VOLUME –/+
Use to set the listening volume (page 12).
8 USB terminal
Use to connect your USB mass storage device or Apple iPod/
iPhone/iPad as an audio source (pages 16 and 20).
9 Headphone socket
Use to connect headphones. When the headphones are
connected, there is no sound output from the speakers
(page 14).
10 AUDIO IN socket
Use to connect an auxiliary component using a stereo mini-
jack cable (page 25).
11 DAB/FM antenna socket
Connect provided DAB/FM wire antenna here (page 10).
12 DC IN terminal
Plug the supplied AC adapter (page 10).
5 V
2.1 A
PHONES
AUDIO IN
ANTENNA
DC IN
18 V
LABEL SIDE
DISC EJECT 
      STANDBY/ON VOLUME – + INPUT  SLEEP
1
8
9
10
11
12
2 3
4 5
6 7
