Connecting the units English Connecting the units English
Note
• When this unit is installed in a vehicle without ACC
(accessory) position on the ignition switch, red cable
must be wired to the terminal that can detect the
operation of the ignition key. Otherwise, battery drain
may result.
ACC ON
S
T
A
R
T
O
FF
ON
S
T
A
R
T
O
FF
ACC position No ACC position
• Use this unit in other than the following conditions
could result in fire or malfunction.
— Vehicles with a 12-volt battery and negative
grounding.
— Speakers with 50 W (output value) and 4 ohm to 8
ohm (impedance value).
• To prevent short-circuit, overheating or malfunction,
be sure to follow the directions below.
— Disconnect the negative terminal of the battery
before installation.
— Secure the wiring with cable clamps or adhesive
tape. To protect the wiring, wrap adhesive tape
around them where they lie against metal parts.
— Place all cables away from moving parts, such as
gear shift and seat rails.
— Place all cables away from hot places, such as
near the heater outlet.
— Do not pass the yellow cable through a hole into
the engine compartment to connect to a battery.
— Cover any disconnected cable connectors with
insulating tape.
— Do not shorten any cables.
— Never cut the insulation of the power cable of
this unit in order to share the power to other
equipment. Current capacity of the cable is
limited.
— Use a fuse of the rating prescribed.
— Never wire the speaker negative cable directly to
ground.
— Never band together multiple speaker’s negative
cables.
• Control signal is output through blue/white cable
when this unit is powered on. Connect it to an
external power amp’s system remote control or the
vehicle’s auto-antenna relay control terminal (max.
300 mA, 12 V DC). If the vehicle is equipped with a
glass antenna, connect it to the antenna booster
power supply terminal.
• Never connect blue/white cable to external power
amp’s power terminal. Also, never connect it to the
power terminal of the auto antenna. Otherwise,
battery drain or malfunction may result.
• Black cable is ground. This cable and other product’s
ground cable (especially, high-current products such
as power amp) must be wired separately. Otherwise,
fire or malfunction may result if they are accidentally
detached.

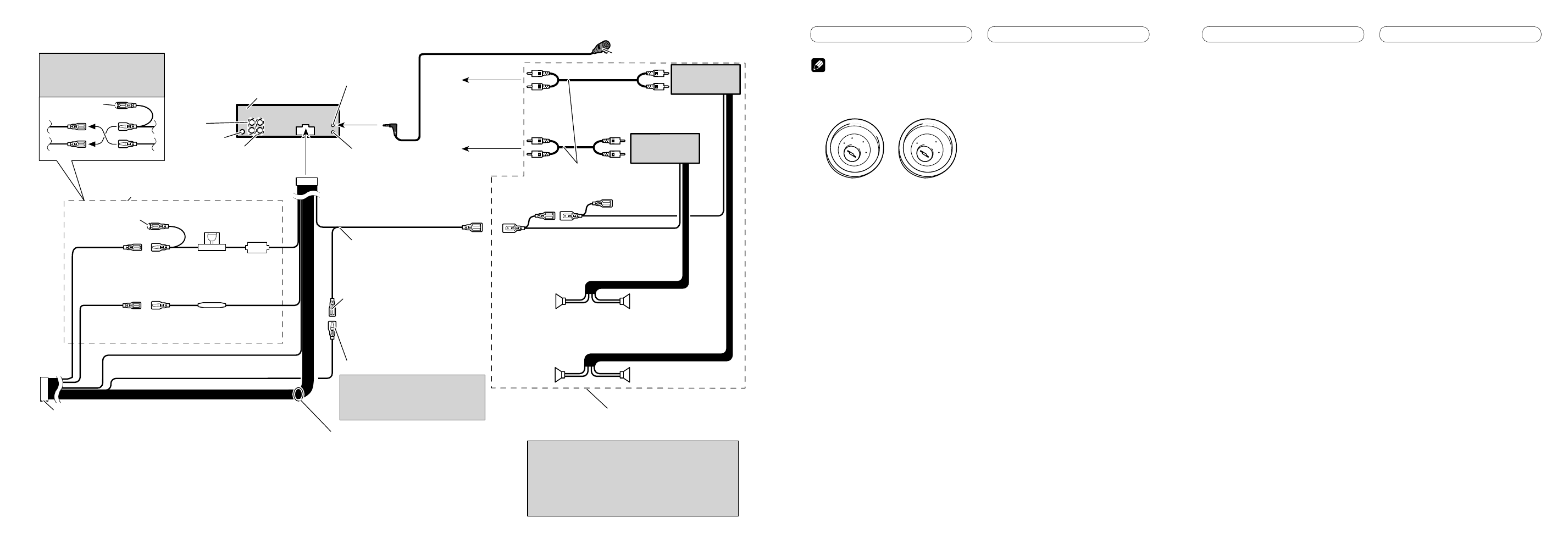

Connection Diagram
1. Microphone input
2. Wired remote input
Hard-wired remote control adaptor can be
connected (sold separately).
3. Rear output or subwoofer output
4. Antenna jack
5. Front output
6. This product
7. Note
Depending on the kind of vehicle, the function
of 3* and 5* may be different. In this case, be
sure to connect 2* to 5* and 4* to 3*.
8. Connect leads of the same color to
each other.
9. Cap (1*)
Do not remove cap if this terminal is not in use.
10. Fuse (10 A)
11. Yellow (3*)
Back-up (or accessory)
12. Yellow (2*)
Connect to the constant 12 V supply terminal.
13. Fuse resister
14. Red (5*)
Accessory (or back-up)
15. Red (4*)
Connect to terminal controlled by ignition
switch (12 V DC).
16. Black (chassis ground)
Connect to a clean, paint-free metal location.
17. ISO connector
Note
In some vehicles, the ISO connector may
be divided into two. In this case, be sure to
connect to both connectors.
18. Blue/white
Connect to system control terminal of the
power amp (max. 300 mA 12 V DC).
19. Blue/white (7*)
Connect to auto-antenna relay control terminal
(max. 300 mA 12 V DC).
20. Blue/white (6*)
The pin position of the ISO connector will differ
depending on the type of vehicle. Connect 6*
and 7* when Pin 5 is an antenna control type.
In another type of vehicle, never connect 6*
and 7*.
21. Speaker leads
White: Front left
White/black: Front left
Gray: Front right
Gray/black: Front right
Green: Rear left or subwoofer
Green/black: Rear left or subwoofer
Violet: Rear right or subwoofer
Violet/black: Rear right or subwoofer
22. To rear output or subwoofer output
23. To front output
24. Connect with RCA cables (sold separately)
25. Power amp (sold separately)
26. System remote control
27. Left
28. Right
29. Front speaker
30. Rear speaker or subwoofer
31. Perform these connections when using the
optional amplifier.
32. Notes
• Change the initial setting of this unit (refer
to the operation manual). The subwoofer
output of this unit is monaural.
• When using a subwoofer of 70 W (2 Ω), be
sure to connect with Violet and Violet/black
leads of this unit. Do not connect anything
with Green and Green/black leads.
33. Microphone
5. Front output
6. This product
4. Antenna jack
3. Rear output
or subwoofer
output
2. Wired remote input
Hard-wired remote control
adaptor can be connected
(sold separately).
31. Perform these connections when
using the optional amplifier.
1*
3* 2*
4* 5*
7. Note
Depending on the kind of vehicle,
the function of 3* and 5* may be
different. In this case, be sure to
connect 2* to 5* and 4* to 3*.
8. Connect leads of the same
color to each other.
9. Cap (1*)
Do not remove cap
if this terminal is not
in use.
11. Yellow (3*)
Back-up (or
accessory)
14. Red (5*)
Accessory
(or back-up)
12. Yellow (2*)
Connect to the constant
12 V supply terminal.
15. Red (4*)
Connect to terminal controlled by
ignition switch (12 V DC).
17. ISO connector
Note
In some vehicles, the ISO connector
may be divided into two. In this case,
be sure to connect to both connectors.
21. Speaker leads
White: Front left
White/black: Front left
Gray: Front right
Gray/black: Front right
Green: Rear left or subwoofer
Green/black: Rear left or subwoofer
Violet: Rear right or subwoofer
Violet/black: Rear right or subwoofer
18. Blue/white
Connect to system control terminal of the
power amp (max. 300 mA 12 V DC).
19. Blue/white (7*)
Connect to auto-antenna relay control
terminal (max. 300 mA 12 V DC).
16. Black (chassis ground)
Connect to a clean, paint-free metal location.
The pin position of the ISO connector will
differ depends on the type of vehicle.
Connect 6* and 7* when Pin 5 is an
antenna control type. In another type of
vehicle, never connect 6* and 7*.
20. Blue/white (6*)
32. Notes
• Change the initial setting of this unit (refer to the
operation manual). The subwoofer output of this unit is
monaural.
• When using a subwoofer of 70 W (2 Ω), be sure to
connect with Violet and Violet/black leads of this unit.
Do not connect anything with Green and Green/black
leads.
23. To front output
22. To rear output
or subwoofer
output
25. Power amp
(sold separately)
28. Right 27. Left
25. Power amp
(sold separately)
24. Connect with RCA cables
(sold separately)
26. System remote control
29. Front speaker 29. Front speaker
30. Rear speaker
or subwoofer
30. Rear speaker
or subwoofer
10. Fuse (10 A)
13. Fuse resister
1. Microphone input
4 m
33. Microphone
