Pioneer FH-P6600R - Manual

+
≠
+
≠
+
≠
+
≠
1*
2*
4*
3*
5*
IP-BUS cable
Blue/white
System remote control
Power amp
(sold separately)
Subwoofer Subwoofer
Front speaker Front speaker
Perform these connections when using a
different amp (sold separately).
Power amp
(sold separately)
Yellow/black
If you use a cellular telephone, connect it via the
Audio Mute lead on the cellular telephone. If not,
keep the Audio Mute lead free of any connections.
Connect leads of the
same color to each
other.
Cap (1*)
When not using this terminal,
do not remove the cap.
ISO connector
Fuse holder Yellow (2*)
To terminal always supplied
with power regardless of
ignition switch position.
Red (4*)
To electric terminal controlled
by ignition switch (12 V DC)
ON/OFF.
Yellow (3*)
Back-up
(or accessory)
Red (5*)
Accessory
(or back-up)
Black (ground)
To vehicle (metal) body.
Orange
To lighting switch terminal.
Note:
In some vehicles, the ISO connector may be
divided into two. In this case, be sure to
connect to both connectors.
Connecting cords
with RCA pin plugs
(sold separately)
Fuse resistor
Fuse resistor
Blue/white (7*)
Blue/white (6*)
Speaker leads
White
White/black
Gray
Gray/black
: Front left +
: Front left ≠
: Front right +
: Front right ≠
Green
Green/black
V
V
iolet
iolet/black
: Rear left +
: Rear left ≠
: Rear right +
: Rear right ≠
To system control terminal
of the power amp (max. 300mA 12V DC).
To Auto-antenna reray control
terminal (max. 300mA 12V DC).
Note:
Depending on the kind of vehicle, the function
of 3* and 5* may be different. In this case, be
sure to connect 2* to 5* and 4* to 3*.
The pin position of the ISO connector
will differ depends on the type of
vehicle.
Connect 6* and 7* when Pin 5 is an
antenna control type. In another type
of vehicle, never connect 6* and 7*.
Multi-CD player
(sold separately)
Front output
Subwoofer output or
Rear output
This Product
Antenna jack
IP-BUS input (Blue)
Note:
• This unit is for vehicles with a 12-volt battery and
negative grounding. Before installing it in a recre-
ational vehicle, truck, or bus, check the battery
voltage.
• To avoid shorts in the electrical system, be sure to
disconnect the ≠ battery cable before beginning
installation.
• Refer to the owner’s manual for details on con-
necting the power amp and other units, then make
connections correctly.
• Secure the wiring with cable clamps or adhesive
tape. To protect the wiring, wrap adhesive tape
around them where they lie against metal parts.
• Route and secure all wiring so it cannot touch any
moving parts, such as the gear shift, handbrake,
and seat rails. Do not route wiring in places that
get hot, such as near the heater outlet. If the insu-
lation of the wiring melts or gets torn, there is a
danger of the wiring short-circuiting to the vehicle
body.
• Don’t pass the yellow lead through a hole into the
engine compartment to connect to the battery.
This will damage the lead insulation and cause a
very dangerous short.
• Do not shorten any leads. If you do, the protection
circuit may fail to work when it should.
• Never feed power to other equipment by cutting
the insulation of the power supply lead of the unit
and tapping into the lead. The current capacity of
the lead will be exceeded, causing overheating.
• When replacing fuse, be sure to use only fuse of
the rating prescribed on the fuse holder.
• Since a unique BPTL circuit is employed, never
wire so the speaker leads are directly grounded or
the left and right ≠ speaker leads are common.
• The black lead is ground. Please ground this lead
separately from the ground of high-current prod-
ucts such as power amps.
If you ground the products together and the
ground becomes detached, there is a risk of dam-
age to the products or fire.
• If the RCA pin jack on the unit will not be used,
do not remove the caps attached to the end of the
connector.
• Speakers connected to this unit must be high-
power types with minimum rating of 45 W and
impedance of 4 to 8 ohms. Connecting speakers
with output and/or impedance values other than
those noted here may result in the speakers catch-
ing fire, emitting smoke, or becoming damaged.
• When this product’s source is switched ON, a
control signal is output through the blue/white
lead. Connect to an external power amp’s system
remote control or the car’s Auto-antenna relay
control terminal (max. 300 mA 12 V DC). If the
car features a glass antenna, connect to the anten-
na booster power supply terminal.
• When an external power amp is being used with
this system, be sure not to connect the blue/white
lead to the amp’s power terminal. Likewise, do
not connect the blue/white lead to the power ter-
minal of the auto-antenna. Such connection could
cause excessive current drain and malfunction.
• To avoid short-circuiting, cover the disconnected
lead with insulating tape. Especially, insulate the
unused speaker leads without fail. There is a pos-
sibility of short-circuiting if the leads are not insu-
lated.
• To prevent incorrect connection, the input side of
the IP-BUS connector is blue, and the output side
is black. Connect the connectors of the same col-
ors correctly.
• If this unit is installed in a vehicle that does not
have an ACC (accessory) position on the ignition
switch, the red lead of the unit should be connect-
ed to a terminal coupled with ignition switch
ON/OFF operations. If this is not done, the vehi-
cle battery may be drained when you are away
from the vehicle for several hours. (Fig. 1)
Fig. 1
No ACC position ACC position
ON
S
T
A
R
T
O
FF
ACC ON
S
T
A
R
T
O
FF

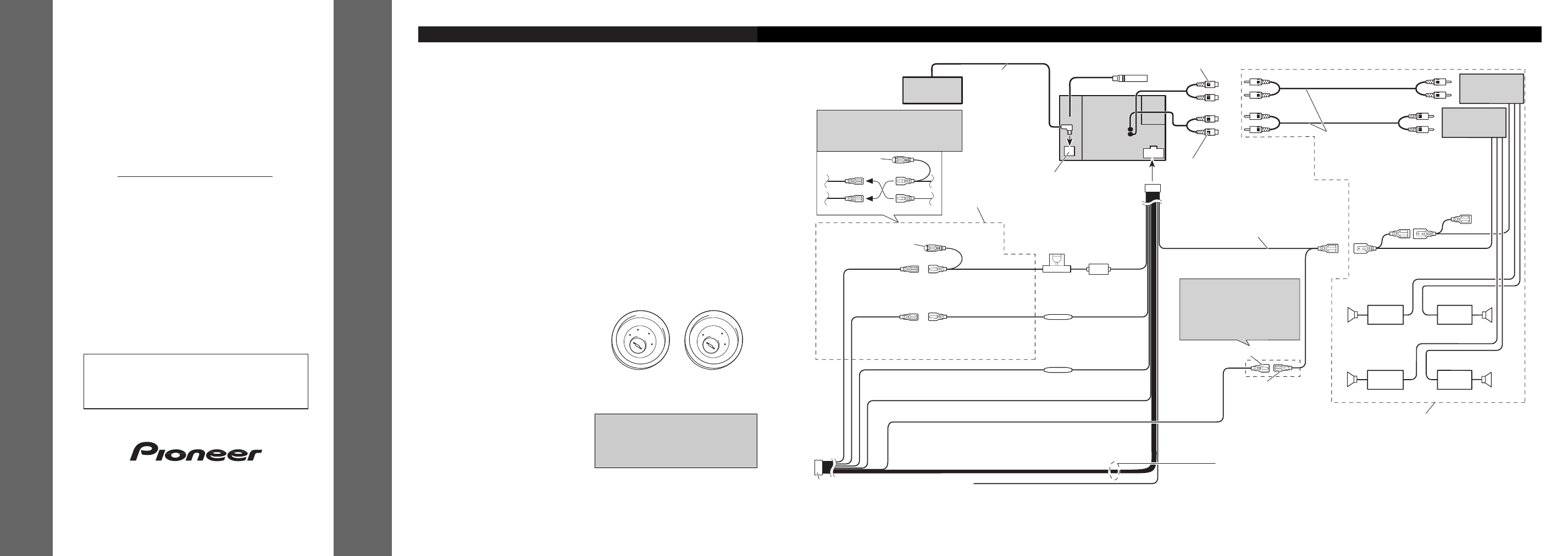

Connecting the Units
INST
ALLA
TION MANUAL
Fig. 2
This product conforms to new cord colors.
Questo prodotto è conforme ai nuovi codici colori.
Los colores de los cables de este producto se confor-
man con un nuevo código de colores.
<00C00T0Q01>
Printed in
EW
FH-P6600R
INST
ALLA
TION MANUAL
• Cords for this product and those for other
products may be different colors even if they
have the same function. When connecting this
product to another product, refer to the supplied
Installation manuals of both products and
connect cords that have the same function.
