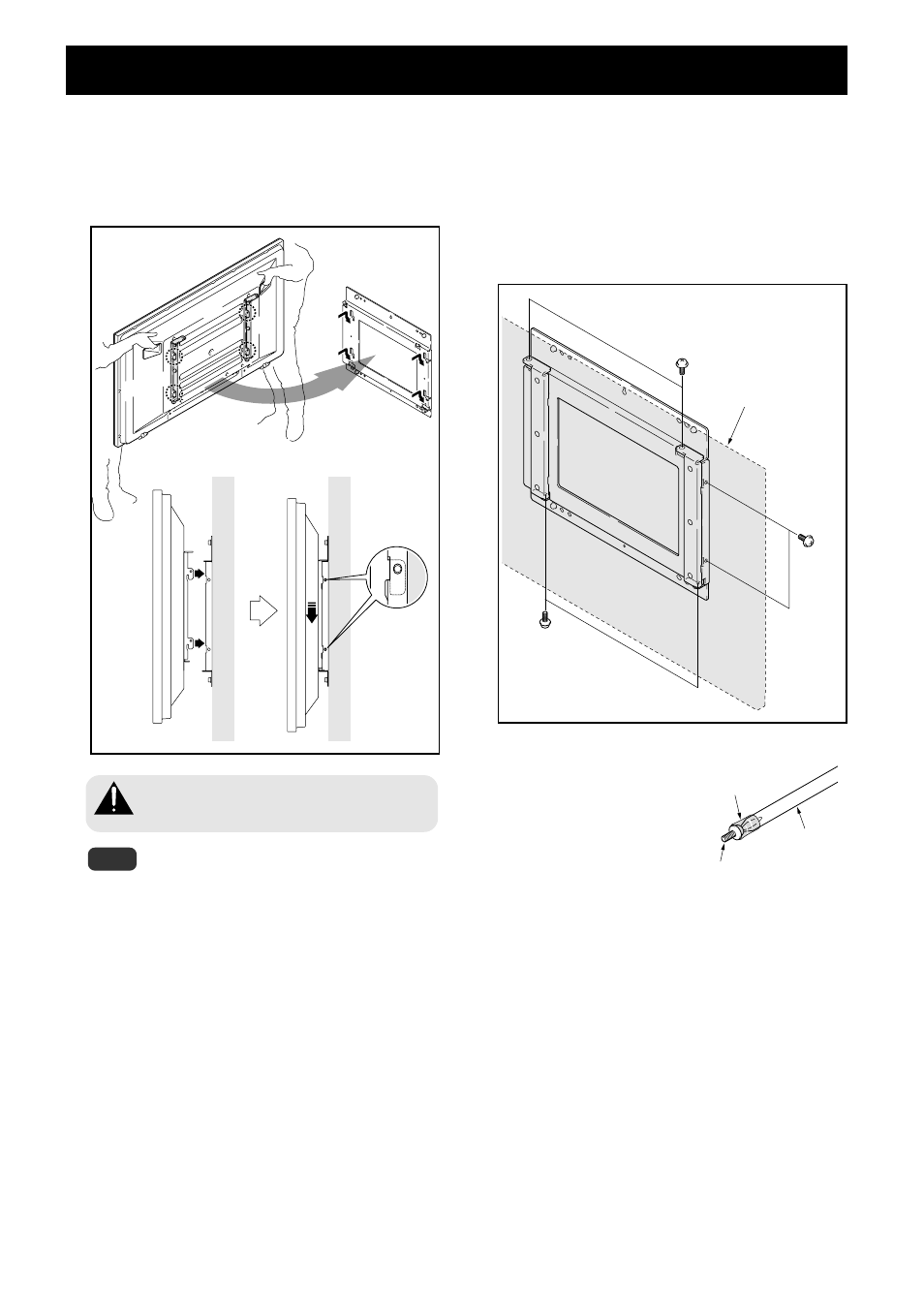

Installation Procedure
5
Hanging the cant hooks of the PDP side
fitting on the wall side fitting (4 locations).
Make sure that the cant hooks are firmly hung and that
the plasma display is attached horizontally in its correct
position.
Hanging the cant hooks of the PDP side
metal fitting on the wall side metal fitting.
6
Fixing the metal fitting with the screws
removed in step 1 (2 locations).
Select the positions to attach the screws from the top,
bottom, or right side.
Attach the screws at two locations on the same plane.
If there is no space above the plasma display, select
locations either below or to the right of the speaker
installation location.
Top attachment
location
Plasma display
It is convenient to attach the
screws using a screw driver
with a magnetized tip. If you
do not have one, you can do
the work easily by attaching
the head of the screw to the
tip of the screw driver with
tape so that the screw does
not fall.
Always have at least two people do this task.
Caution
Note
If speakers are attached, do not hold the speakers to
perform this attachment.
Be careful that the wiring etc. is not caught in the metal
fitting or the plasma display. Be extremely careful if
there is a speaker attached to the bottom, because if
there is, wiring etc. is easily caught between the wall
and the speaker.
Bottom
attachment
location
Right side
attachment
location
Screw driver
Screw
Attached
with tape
