Controls and displays

7

En

01

01

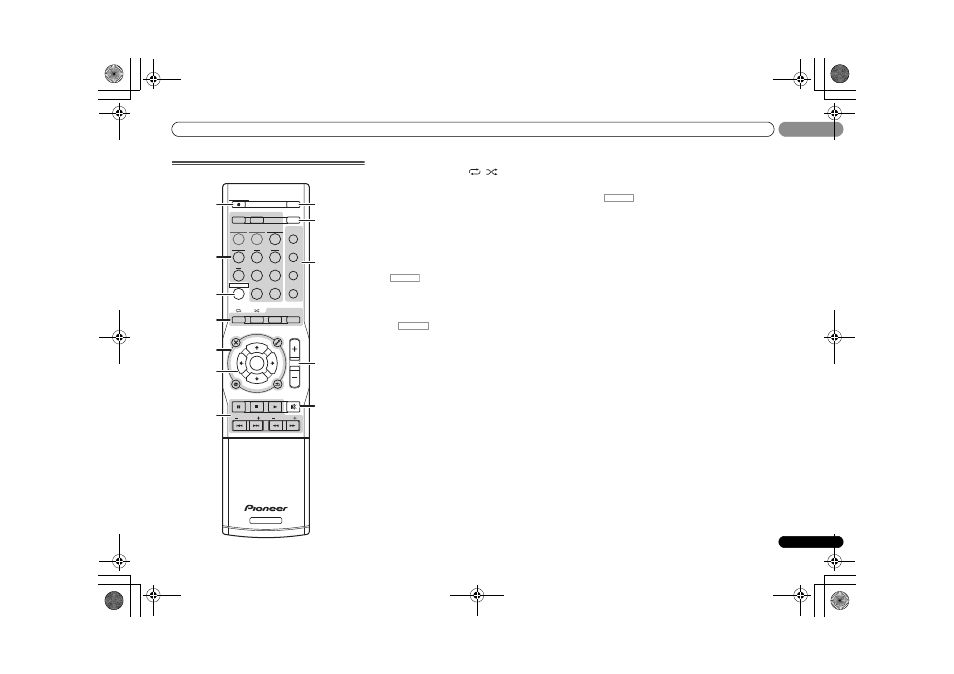

Remote control

The following buttons are not used with this receiver:

-

iPod USB, NETWORK, , ,

iPod CTRL

1

STANDBY/ON

Switches the receiver between standby and on.

2

Input function buttons

Use to select the input source to this receiver (page 18). This
will enable you to control other Pioneer components with the
remote control.

• Switch to one of the underlined devices to use the remote

control to operate that device. As for operating other
devices, the remote control codes for the Pioneer
products are preset. The settings cannot be changed.

3
Switches the remote to control the receiver. Also use this
button to set up surround sound (page 27) or Audio
parameters (page 24).

4

Receiver control buttons

Press

first to access:

SLEEP – Press to change the amount of time before the
receiver switches into standby (

30 min – 60 min – 90 min

– Off). You can check the remaining sleep time at any
time by pressing

SLEEP once.

SP-AB – See Switching the speaker terminal on page 11.

DIMMER – Dims or brightens the display. The brightness
can be controlled in four steps.

STATUS – Switches the display of this unit.

-

The Pre Out setting and Up Mix function settings can be
checked depending on the input selected.

Press

TUNER first to access:

DISP – Press to display the preset name (page 20).

Press

BD or DVD first to access:

AUDIO – Press to change the audio stream/channel of
Blu-ray Disc/DVD.

DISP – Press to display information of a Blu-ray Disc/DVD.

5

Receiver and component control buttons

The following button controls can be accessed after you have
selected the corresponding input function button (

BD, DVD,

etc.).
Press

first to access:

TOOLS – Use to access the Audio options (page 24).

HOME MENU – Press to access the Home Menu
(page 27).

RETURN – Confirm and exit the current menu screen.

Press

TUNER first to access:

TOOLS – Memorizes stations for recall, also used to
change the name (page 20).

Press

BD or DVD first to access:

TOP MENU – Displays the disc ‘top’ menu of a Blu-ray
Disc/DVD.

HOME MENU – Displays the HOME MENU screen.

RETURN – Confirm and exit the current menu screen.

MENU – Displays the TOOLS menu of Blu-ray Disc player.

6

///, ENTER

Use the arrow buttons when setting up your surround sound
system (page 27). Also used to control Blu-ray Disc/DVD
menus/options.

7

Component control buttons

The main buttons (

, , etc.) are used to control a

component after you have selected it using the input function
buttons.
The controls above these buttons can be accessed after you
have selected the corresponding input function button (

BD,

DVD and CD). These buttons also function as described
below.
Press

TUNER first to access:

PTY – Use to search for RDS program types (page 21).

BAND – Switches between AM, FM ST (stereo) and FM
MONO radio bands (page 20).

TUNE +/– – Use to find radio frequencies.

PRESET +/– – Use to select preset radio stations.

8

ECO

Press to select Ecology mode (page 23).

STANDBY/ON

iPod USB NETWORK

AUTO /

DIRECT

ALC /

STANDARD

ADV

SURR

SOUND

WING

AUDIO

DIMMER

TOP

MENU

MENU

TOOLS

VOL

RETURN

PTY

PRESET

BAND

MUTE

HOME MENU

iPod

CTRL

DISP

STATUS

ADAPTER

TUNER

BD

DVD

CD

STB

GAME

TV

PORTABLE

SLEEP

SP-AB

ENTER

TUNE

RECEIVER

RECEIVER

ECO

D AUX

A AUX

S.RTRV

1

8

9

10

11

12

2

3

4

5

6

7

RECEIVER

RECEIVER

RECEIVER
