E-3

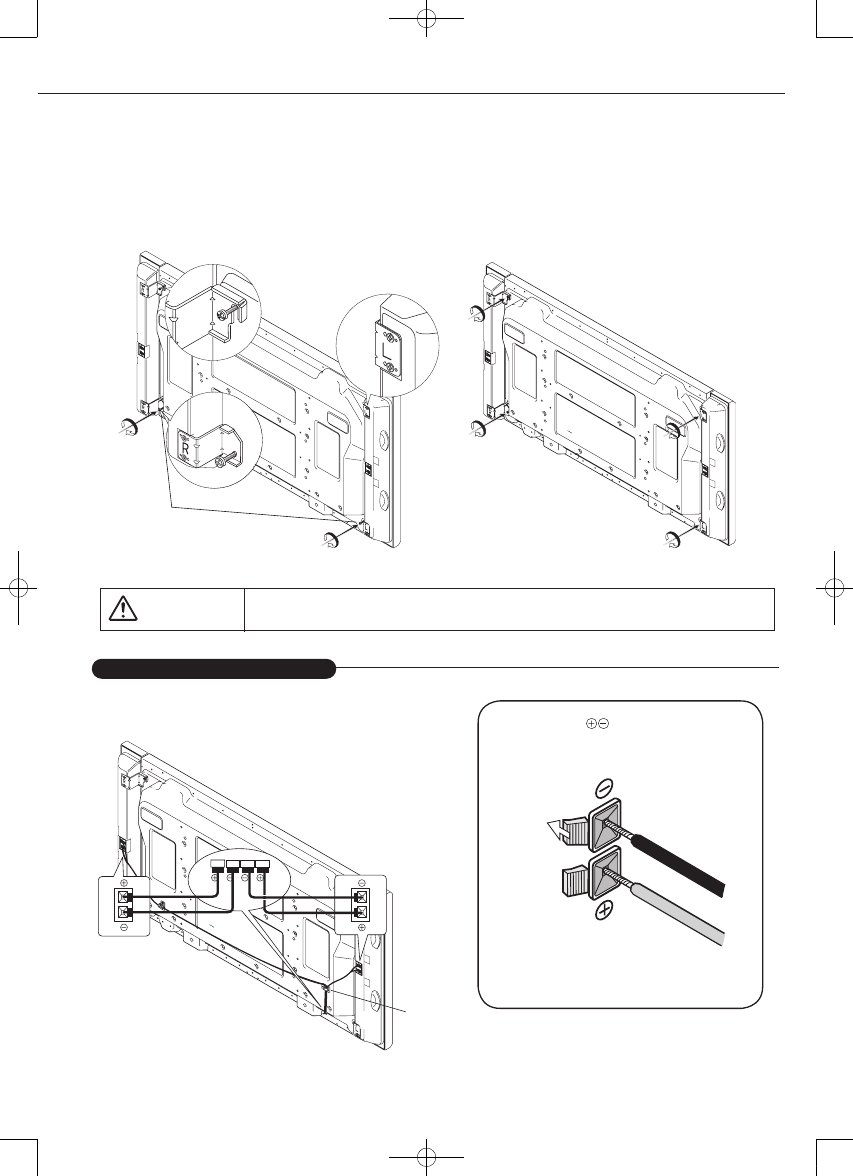

③ Catch the hooks on the top of the speakers to the partially
tightened screws, then line up the holes in the hooks on
the bottom of the speakers with the screw holes on the
bottom of the display and partially tighten the included
screws (M8) in them.
④ Fully tighten the four partially tightened screws.
Screws (M8)
● When the speakers are installed on the display, do not move the unit by lifting up the speakers.
The display could fall and cause injury.
WARNING
*Push the speaker against the display while driving
the screw.
Connect the display's SPEAKER R and L terminals with the
speakers' terminals using the included connection cords.
Connecting the cords
Turn off the power of all connected units before connecting the cords.
While holding the button of each speaker
t e r m i n a l , i n s e r t a c o n d u c t o r o f t h e
connection cord.
Red
Black
There is polarity with the conductor of each
connection cord.
Connect each conductor to the correct terminal.
Peel off the protective tape from the back of the clamper,
then mount the clamper in the desired position and clamp
the cords together.
Cord Clamper
After connecting the speaker terminals
with the connection cords, confirm
that the cords are connected at the
terminal securely by tugging on the
cords. A loose connection may cause
sound dropouts or noise.
