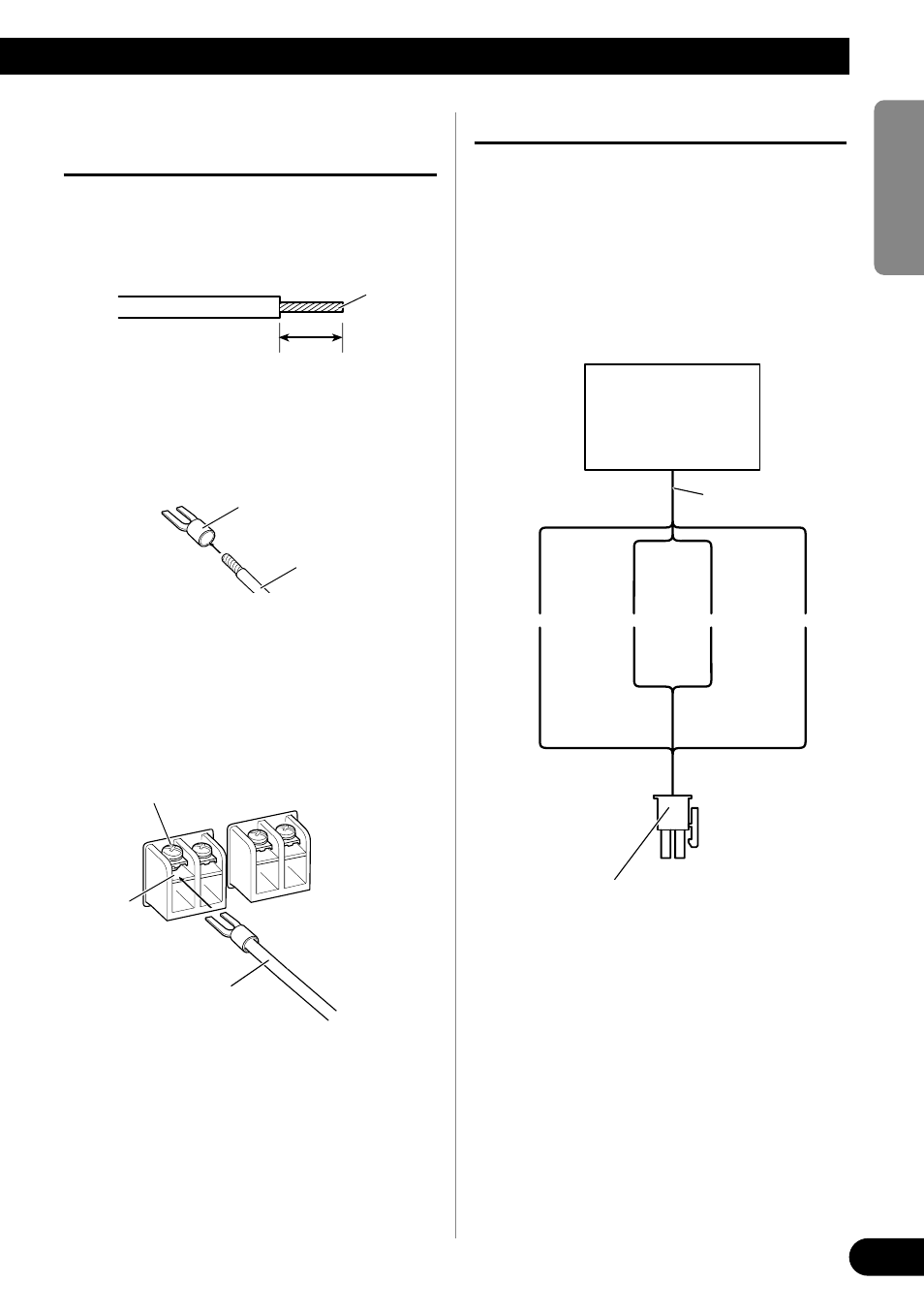

Connecting the Speaker Output
Terminals
1. Expose the end of the speaker wires
using nippers or a cutter by about
10 mm and twist.
2. Attach lugs to speaker wire ends.
Lugs not supplied.
• Use pliers, etc., to crimp lugs to wires.
3. Connect the speaker wires to the
speaker output terminals.
• Fix the speaker wires securely with the termi-
nal screws.
Using the Speaker Input
Connect the car stereo speaker output
wires to the amplifiers using the supplied
speaker input connector.
• Do not connect both the RCA input and the
speaker input at the same time.
7 Connections when using the speaker
input
10 mm
Twist
Speaker wire
Lug
Speaker
output
terminal
Terminal screw
Speaker wire
Speaker output
Car Stereo
Speaker input connector
To speaker input terminal of
this unit.
White:
Left + Gray:
Right +
White/black:
Left ≠ Gray/black:
Right ≠
