Connections 03
12
En
Chapter 3:
Connections
CAUTION
• Be sure to turn off the power and unplug the power cord
from the power outlet whenever making or changing
connections.
• Connect the power cord after all the connections
between devices have been completed.

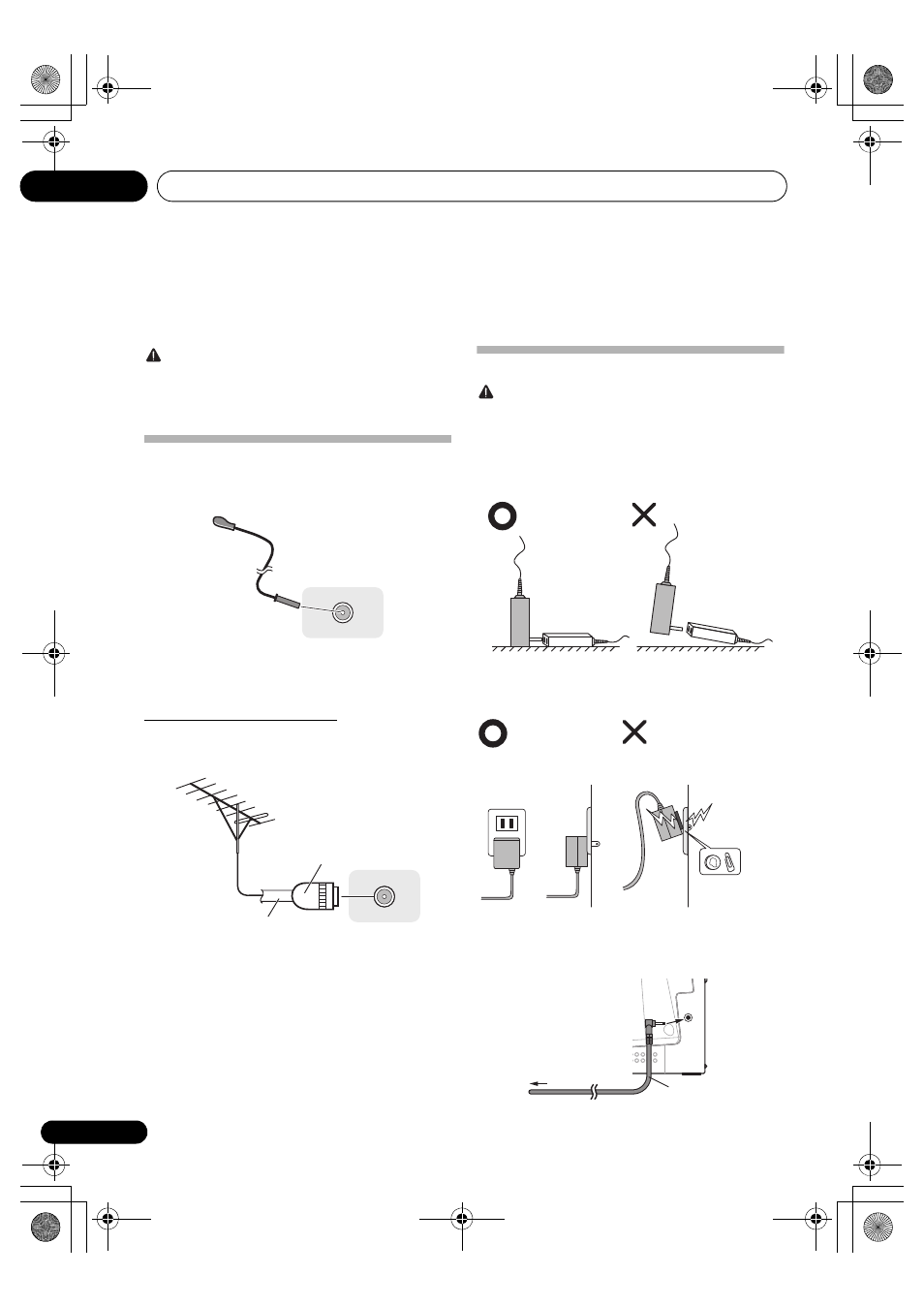

Connecting antenna
Connect the DAB/FM wire antenna as shown below. To
improve reception and sound quality, connect external
antennas (see Using external antennas below).
1 Connect the DAB/FM wire antenna into the
DAB/FM antenna socket.
For best results, extend the DAB/FM antenna fully and fix to a
wall or door frame. Don’t drape loosely or leave coiled up.
Using external antennas
To improve DAB/FM reception
Use a PAL connector (not supplied) to connect an external
DAB/FM antenna.
Plugging in
CAUTION
• Do not use any power cord other than the one supplied
with this unit.
• Do not use the supplied power cord for any purpose
other than that described below.
• The cord on the AC adaptor is 1.5 m long. Make sure that
the body of the AC adaptor is not suspended off the
ground during use, as this will place unnecessary force
on the DC plug.
• When inserting the AC adapter into a wall socket, make
sure that there is no gap between the AC adaptor and the
wall socket. Such a gap may cause a poor connection,
and metal items like coins or paperclips falling into it
may cause a short circuit and start a fire.
Connect the AC adaptor into a wall socket. Only connect the
AC adapter when all other connections to the unit have been
completed.
1
One-touch PAL
connector
75 coaxial
cable
In contact with the
ground
Suspended off the
ground
Front view Side view Side view
Metal objects such as
coins and paperclips
To AC outlet
Power cord
