Chapter 2:
Connecting up
Making cable connections
Make sure not to bend the cables over the top
of this unit (as shown in the illustration). If this
happens, the magnetic field produced by the
transformers in this unit may cause a
humming noise from the speakers.
Important
• Before making or changing any
connections, switch off the power and
disconnect the power cord from the AC
outlet.

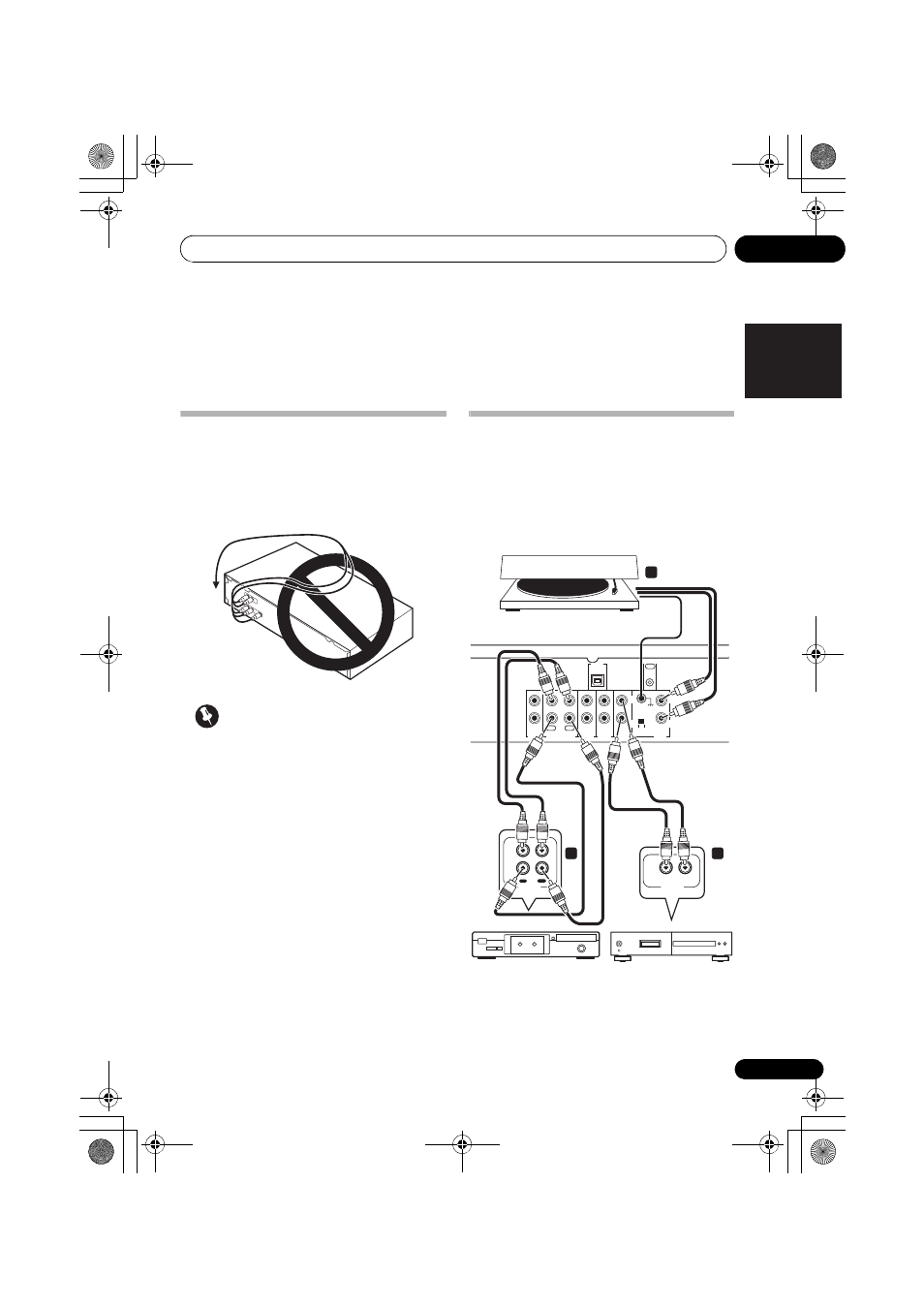

Connecting audio components
The number and kind of connections depends
on the kind of component you’re connecting.
Follow the steps below to connect a CD player,
tape recorder, turntable or other audio
component.
PRE
OUT TAPE TUNER AUX CD PHONO
MM/MC
L
R
GND L
R
USB
AUDIO IN
SIGNAL
CONTROL
OUT
IN
PLAY
OUT
REC
R
L
AUDIO IN/OUT
OUT
R L
AUDIO OUT
1 2
PLAY
OUT IN
REC
3
Turntable
Tape deck, etc.
This amplifier
CD player, etc.
