Example of installation on the floor
mat or on the chassis
1. Place the amplifier where it is to be
installed. Insert the supplied tap-
ping screws (4 mm
× 30 mm) into
the screw holes. Push on the screws
with a screwdriver so they make
marks where the installation holes
are to be located.
2. Drill 2.5 mm diameter holes at the
point marked, and install the ampli-
fier, either on the carpet or directly
to the chassis.
Replacing the top cover
1. Align the unit and top cover, and
insert the screw.
• The cover can be installed in the desired
direction to match to the amplifier.
2. Tighten the screw with a 4 mm
hexagonal wrench.

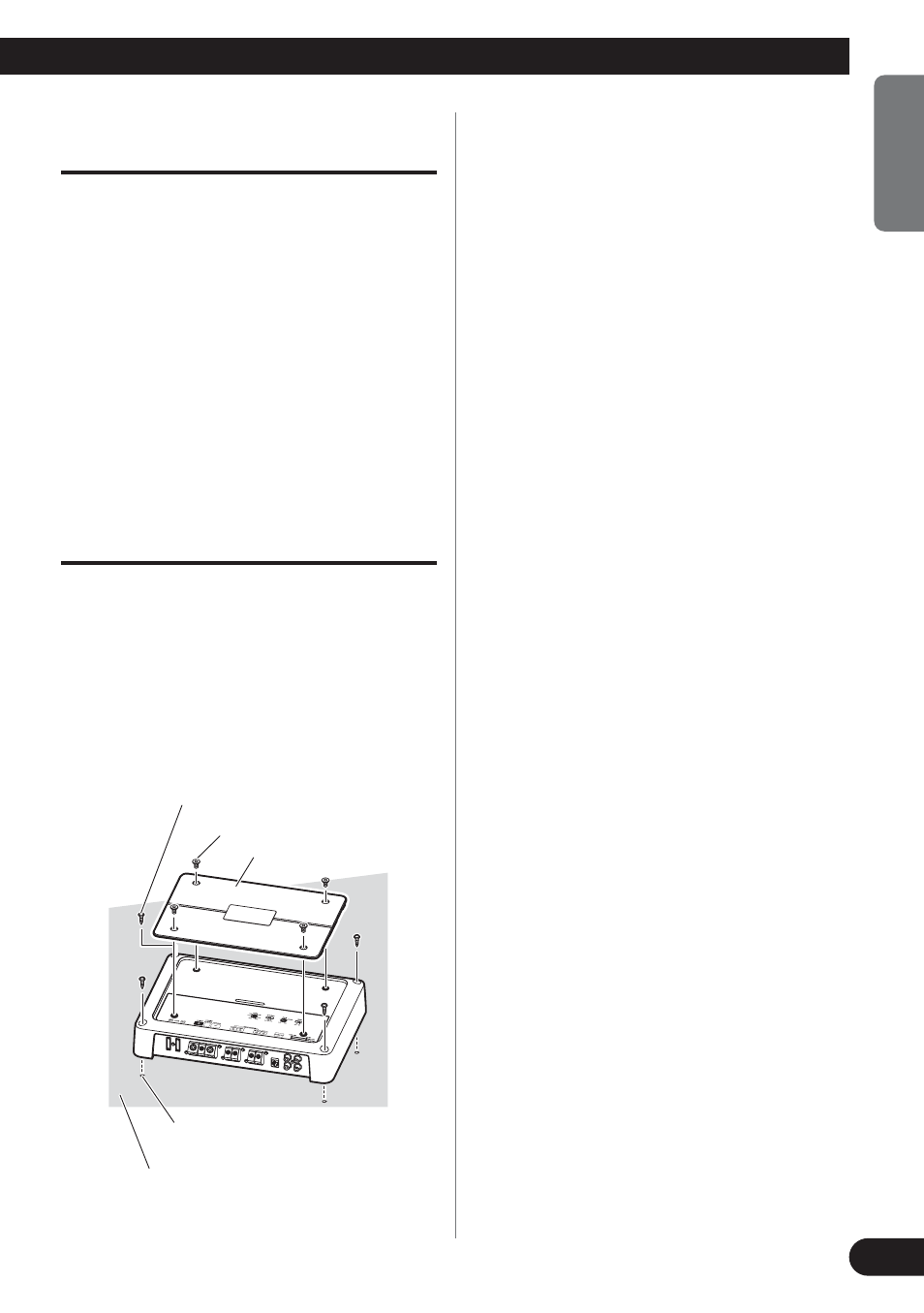

Drill a 2.5 mm diameter hole
Floor mat or chassis
Screw
Top Cover
Tapping-screws (4 mm
× 30 mm)
