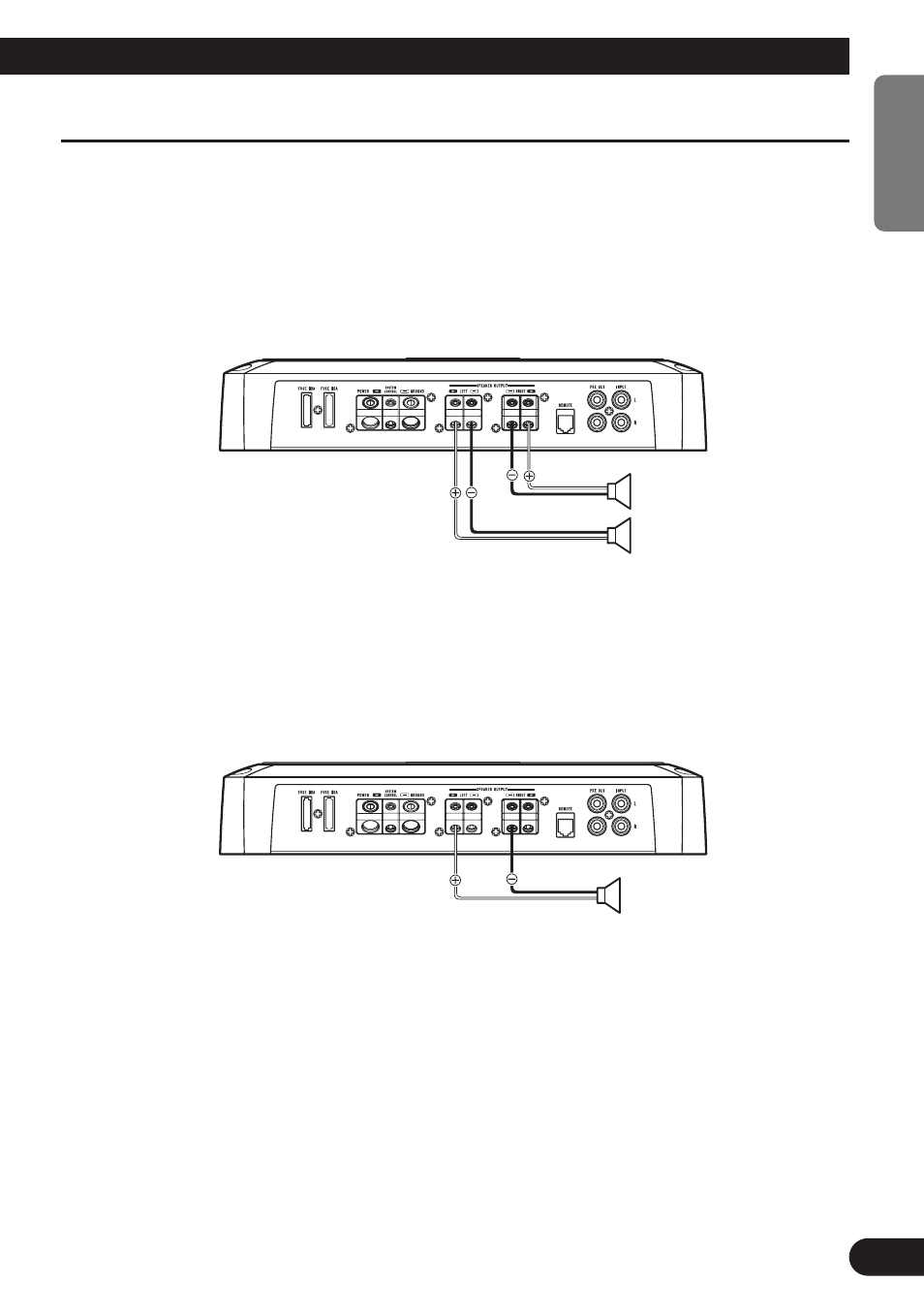

Connecting the Speaker Wires

The speaker output mode can be two-channel (stereo) or one-channel
(mono). Connect the speaker leads to suit the mode according to the fig-
ures shown below.

• Do not connect both the RCA input and the speaker input at the same time.

Two-channel (stereo)

One-channel (mono)

(Right)
Speaker
(Left)

Speaker
(Mono)
