Forward/Backward Angle of Inclination Adjustment Mechanism

On this stand, you can adjust the angle of inclination of the
Pioneer television within a range of approximately 2° forward
or backward according to your preference.

��

• Be sure to adjust the angle only after you have

attached the Pioneer television.

• Be sure to install it on a flat table or other flat

surface.

• Be sure to hold the top of the Pioneer television

with your hand while adjusting the angle.

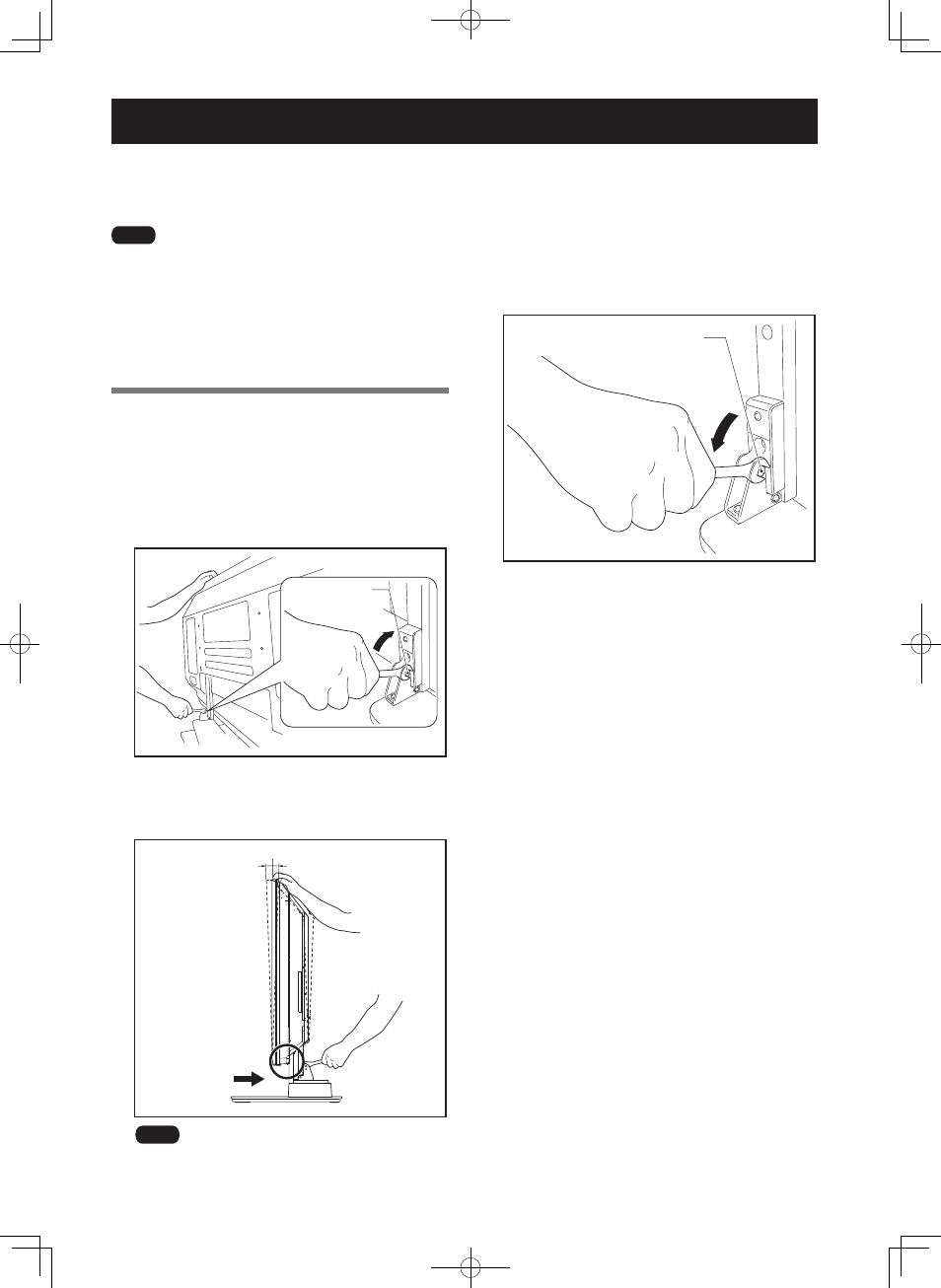

Adjustment Procedure

Loosen the forward/backward inclination

anchor bolts using the enclosed C wrench (2
locations on the left and right).

While being sure to hold the top of the Pioneer television
with your hand, loosen the forward/backward
inclination anchor bolts

on the left and right sides by

rotating them upwards using the enclosed C wrench.

��
��

��

Set the angle you prefer.

Set the angle you prefer by slowly moving the Pioneer
television.

��

While adjusting the angle, be very careful to keep your
hands out of the place indicated by the arrow on the
figure.

Tighten the forward/backward inclination

anchor bolts (2 locations on the left and
right).

Firmly tighten the forward/backward inclination
anchor bolts

on the left and right sides by rotating them

downward using the enclosed C wrench.
Be sure to hold the top of the Pioneer television with your
hand until you have fully tightened the bolts.

��

Check once more to make sure that the

forward/backward inclination anchor bolts
are fully tightened.
