Attaching the Plasma Television

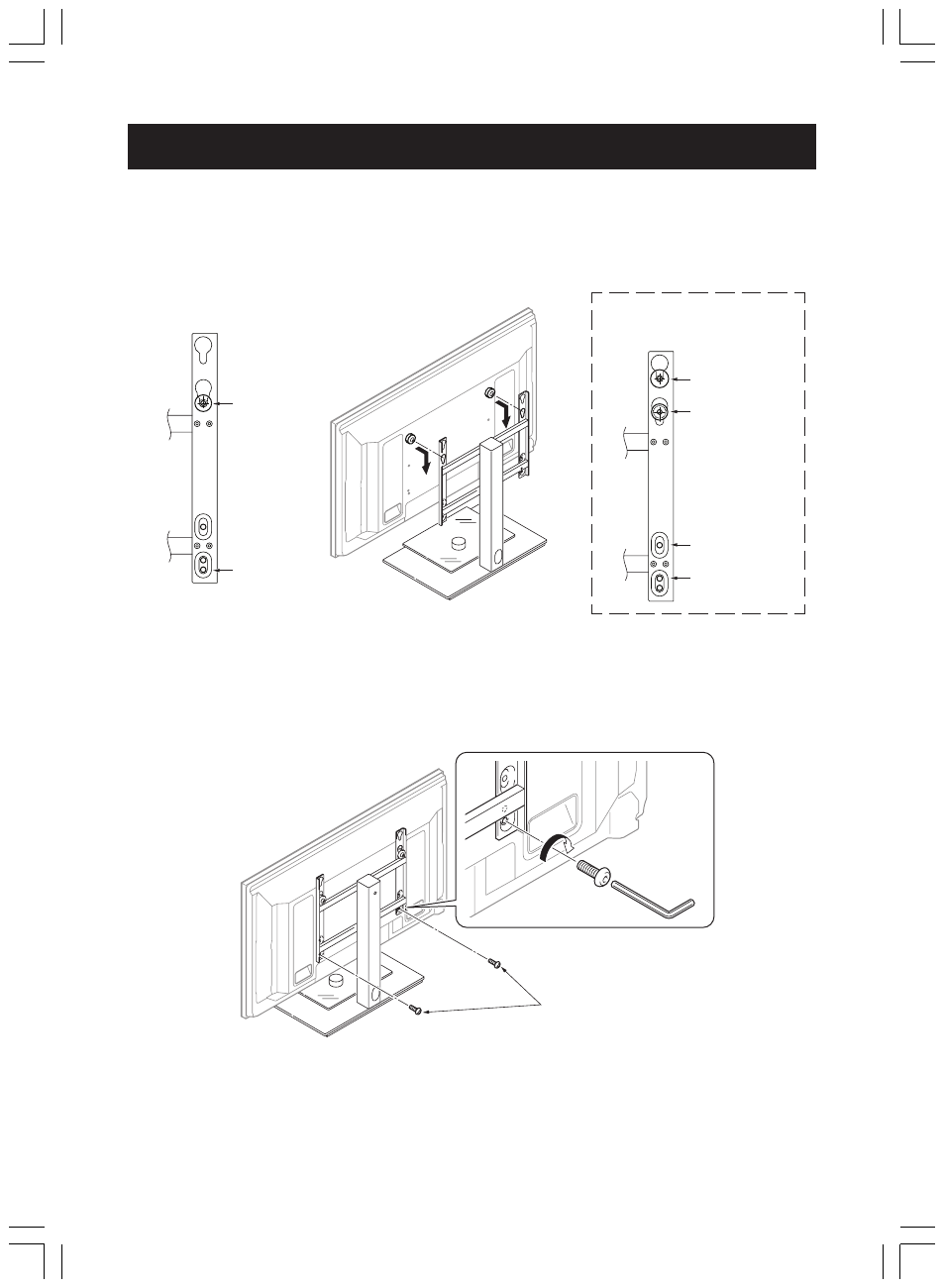

2. Lift the plasma television with the attachments attached and hang it on the stand.
z The position the plasma television is hung varies according to the type of plasma television you have.
z Make sure that nothing is placed on top of the glass plate.
Installation screws
(M8 x 20 mm)
This illustration shows the case of a
50 inch model (side speakers)
3. Fix the stand and plasma display firmly in place with installation screws (M8 x 20 mm).
z Firmly tighten the screws.
This illustration shows the case of a
50 inch model (side speakers)
Case of the 50 inch model
(side speakers)
Case of the 50 inch model (under
speaker) or 42 inch model
Hang the
attachment
in this hole.
42 inch model
50 inch model
(When installing
under speaker)
Installation screw
(M8 x 20 mm)
42 inch model
50 inch model
(When installing
under speaker)
