Controls and displays 02
8
En

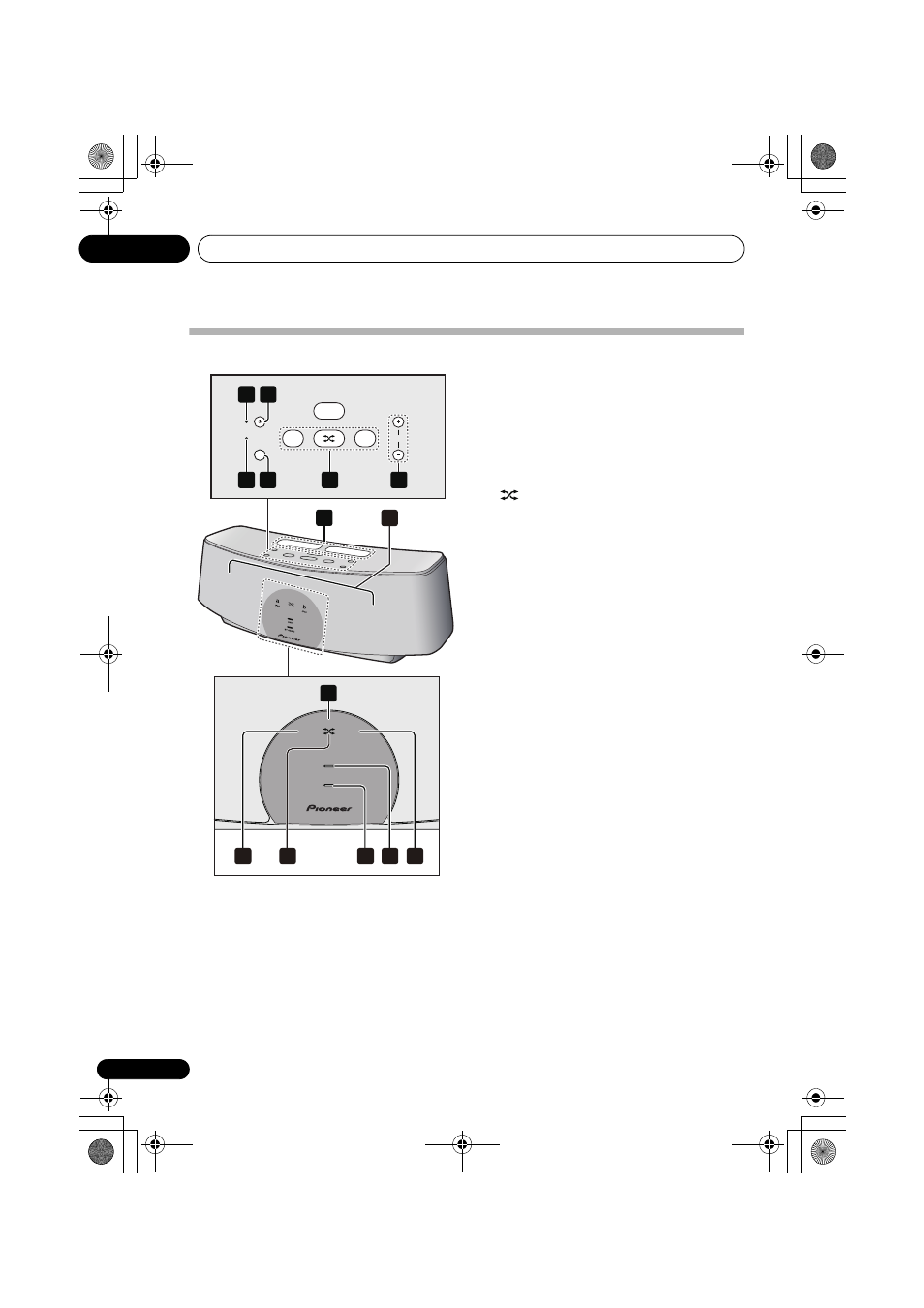

Front/top panel
1 Power Indicator
Lights when the power is on.
2  STANDBY/ON
Switches the unit between standby and on.
3 SLEEP indicator
Lights when the sleep timer is on.
4 INPUT SELECTOR
Use to select an input source. Press repeatedly
to switch between iPod a, iPod b, Bluetooth
AUDIO and external input (AUX).
5 a
Switches the input to the iPod/iPhone
connected to the iPod a connector port.
When iPod/iPhone are connected to both
connector ports iPod a and iPod b, the
SHUFFLE
2 function can be used to
alternately play tracks on iPod a and iPod
b
(page 11).
b
Switches the input to the iPod/iPhone
connected to the iPod b connector port.
6 VOLUME +/–
Use to set the listening volume.
7 iPod/iPhone connector ports
8 Speaker units
9 iPod a indicator
Lights when the iPod a input is selected.
10 SHUFFLE 2 indicator
Lights when the SHUFFLE 2 function is on.
11 BT AUDIO indicator
Lights when the BT AUDIO input is selected.
12 AUX indicator
Lights when the AUX input is selected.
13 iPod b indicator
Lights when the iPod b input is selected.
14 Remote control sensor
a b
iPod
AUX
BT AUDIO
iPod
STANDBY/ON
SLEEP VOLUME a
INPUT SELECTOR
b a
3 4 5
1 2
7
14
9 13 12 11 10
8
6
