24









03

Connecting your equipment

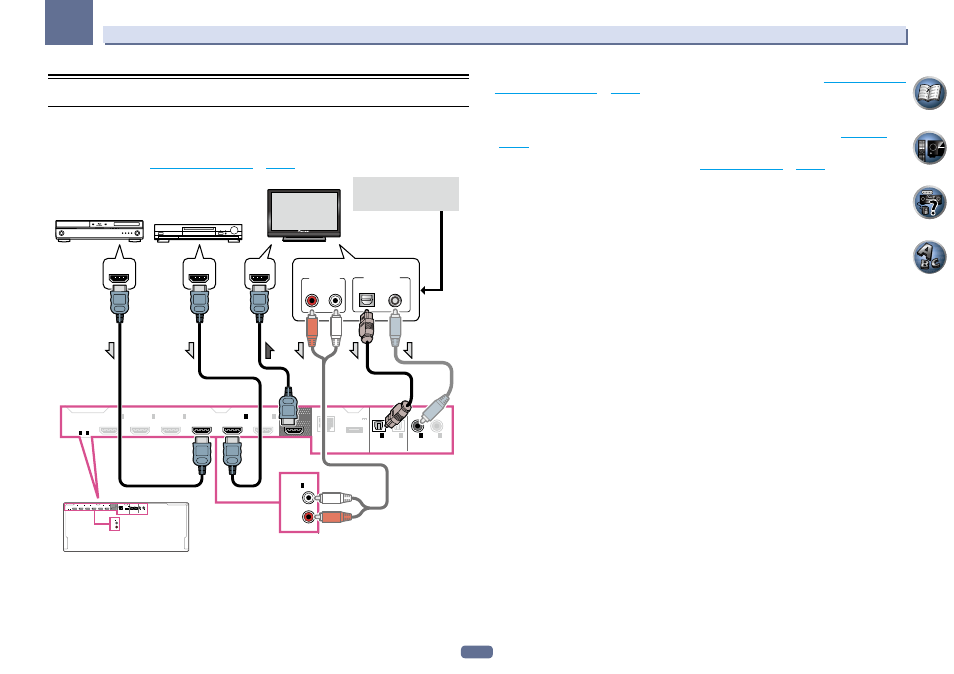

Connecting your TV and playback components

Connecting using HDMI

If you have an HDMI or DVI (with HDCP) equipped component (Blu-ray Disc player (BD), etc.), you can connect it
to this receiver using a commercially available HDMI cable.
If the TV and playback components support the Control with HDMI feature, the convenient Control with HDMI
functions can be used (see

Control with HDMI function

on

page 57

).

HDMI

BD IN

OUT

(OUTPUT 5 V

0.6 A MAX)

ASSIGNABLE

IN

1

(DVD)

IN

2

(SAT/CBL)

IN

3

(DVR/BDR)

IN

4

(VIDEO)

IN

6

LAN

(10/100) DC OUTPUT

for WIRELESS LAN

OPTICAL

COAXIAL

ASSIGN-

ABLE

ASSIGNABLE

IN

1

(TV)

IN

2

(DVR/BDR)

IN

1

(DVD)

IN

2

(SAT/CBL)

1

-

6

ASSIGNABLE

IN

1

(CD)

ASSIGNABLE

IN

1

(CD)

HDMI

BD IN

OUT

ASSIGNABLE

IN

1

(DVD)

IN

2

(SAT/CBL)

IN

3

(DVR/BDR)

IN

4

(VIDEO)

IN

6

1

-

6

OPTICAL

COAXIAL

ASSIGN-

ABLE

IN

1

(TV)

IN

2

(DVR/BDR)

IN

1

(DVD)

IN

2

(SAT/CBL)

(OUTPUT 5 V

0.6 A MAX)

DC OUTPUT

for WIRELESS LAN

LAN (10/100)

DIGITAL OUT

COAXIAL

OPTICAL

ANALOG

R

L

AUDIO OUT

HDMI IN

HDMI OUT

HDMI OUT

HDMI/DVI-compatible
Blu-ray Disc player

Other HDMI/DVI-
equipped component

HDMI/DVI-compatible
monitor

Select one

This connection is required in
order to listen to the sound of
the TV over the receiver.

! For input components, connections other than HDMI connections are also possible (see

Connecting your DVD

player with no HDMI output

on

page 25

).

! If you want to listen to the sound of the TV over the receiver, connect the receiver and TV with audio cables.

— When the TV and receiver are connected by HDMI connections, if the TV supports the HDMI ARC (Audio

Return Channel) function, the sound of the TV can be input to the receiver via the HDMI OUT terminal, so
there is no need to connect an audio cable. In this case, set ARC at HDMI Setup to ON (see

HDMI Setup

on

page 58

).

— If you use a coaxial digital audio cable or RCA (analog) audio cable, you’ll need to tell the receiver which digi-

tal or analog audio input you connected the TV to (see

The Input Setup menu

on

page 38

).
