Pioneer DEH-30MP - Manual

INST
ALLA
TION MANUAL
MANUEL D’INST
ALLA
TION
<05J00000>
DEH-30MP
Printed in China
Imprimé en Chine
EW
This product conforms to new cord colors.
Los colores de los cables de este producto se confor-
man con un nuevo código de colores.
Dieses Produkt entspricht den neuen Kabelfarben.
Le code de couleur des câbles utilisé pour ce produit
est nouveau.
Questo prodotto è conforme ai nuovi codici colori.
De kleuren van de snoeren van dit toestel zijn gewijzigd.
С‡ММУВ ЫТЪУИТЪ‚У ТУУЪ‚ВЪТЪ‚ЫВЪ МУ‚˚П
ЪВ·У‚‡ÌËflÏ Í ˆ‚ВЪЫ ФУ‚У‰У‚.

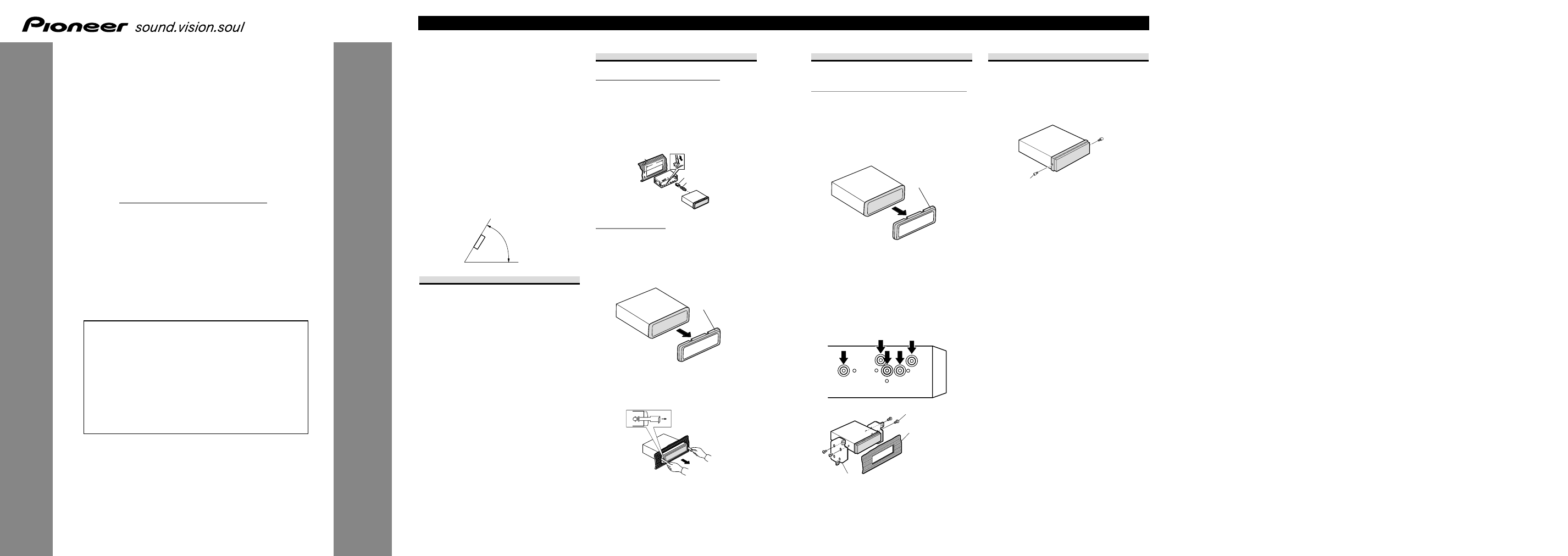

DIN Rear-mount
Installation using the screw holes on the
side of the unit
1. Remove the frame.
To remove the frame, extend top and bottom of
the frame outwards in order to unlock it. (When
reattaching the frame, point the side with a
groove downwards and attach it.)
• It becomes easy to remove the frame if the
front panel is released.
2. Fastening the unit to the factory
radio mounting bracket.
Select a position where the screw holes of the
bracket and the screw holes of the head unit
become aligned (are fitted) and tighten the screws
at 2 places on each side. Use either truss screws
(5
× 8 mm) or flush surface screws (5 × 9 mm),
depending on the shape of the screw holes in the
bracket.
Fixing the front panel
If you do not operate the removing and attaching
the front panel function, use the supplied fixing
screws to fix the front panel to this unit.
1. Fix the front panel to the unit using
fixing screws.
Fixing screw
Screw
Dashboard or
Console
Factory radio
mounting bracket
Frame
Note:
• Before making a final installation of the unit,
temporarily connect the wiring to confirm that the
connections are correct and the system works
properly.
• Use only the parts included with the unit to
ensure proper installation. The use of
unauthorized parts can cause malfunctions.
• Consult with your nearest dealer if installation
requires the drilling of holes or other
modifications of the vehicle.
• Install the unit where it does not get in the
driver’s way and cannot injure the passenger if
there is a sudden stop, like an emergency stop.
• The semiconductor laser will be damaged if it
overheats, so don’t install the unit anywhere hot
— for instance, near a heater outlet.
• If installation angle exceeds 60° from horizontal,
the unit might not give its optimum performance.
DIN Front/Rear-mount
This unit can be properly installed either from
“Front” (conventional DIN Front-mount) or
“Rear” (DIN Rear-mount installation, utilizing
threaded screw holes at the sides of unit chassis).
For details, refer to the following illustrated
installation methods.
DIN Front-mount
Installation with the rubber bush
After inserting the holder into the dashboard,
then select the appropriate tabs according to the
thickness of the dashboard material and bend
them.
(Install as firmly as possible using the top and
bottom tabs. To secure, bend the tabs 90 degrees.)
Removing the Unit
To remove the frame, extend top and bottom of
the frame outwards in order to unlock it. (When
reattaching the frame, point the side with a
groove downwards and attach it.)
• It becomes easy to remove the frame if the
front panel is released.
Insert the supplied extraction keys into the unit,
as shown in the figure, until they click into place.
Keeping the keys pressed against the sides of the
unit, pull the unit out.
Frame
53
182
Dashboard
Holder
Rubber bush
Screw
60 °
Installation
