Switches the unit between standby and on
Press  STANDBY/ON (1).
Setting the clock
1. Press CLOCK/TIMER (8) and ENTER (4).
2. Use
k/l and ENTER (4 ) to set the day, hour and minute.
Setting the timer
1. Press CLOCK/TIMER (8).
2. Use
k/l and ENTER (4 ) to adjust the day of the week and time.
Control the display brightness
Press DIMMER (e ) to switch the display brightness in four steps.
Control sound and adjust volume
Press EQUALIZER, P.BASS, BASS or TREBLE (9 ) to adjust sound quality.
Press VOLUME +/– (d) to adjust the listening volume.
Press MUTE (5) to mute the sound.
Playing iPod/iPhone/iPad or USB device using the USB terminal
1. Press USB (2) and connect your iPod/iPhone/iPad to the USB terminal.
2. Press d/ (6
) to start playback.
Listening to the audio CD
1. Press CD (2).
2. Press OPEN/CLOSE (7) to open disc door and set a disc.
3. Press d/ (6
) to start playback. Use numeric buttons (3) or o/p (6) to select the track.
4. Press REPEAT (b) or RANDOM (a ) to adjust the play mode.
Listening to the radio
1. Press TUNER (2).
2. Press TUNE +/– (c) to tune in to the desired station.
Bluetooth® audio playback (X-SMC01BT only)
1. Press BT AUDIO (2).
2. Turn on the power to the Bluetooth
capable device that you wish to pair with, and perform pairing
procedure on it.

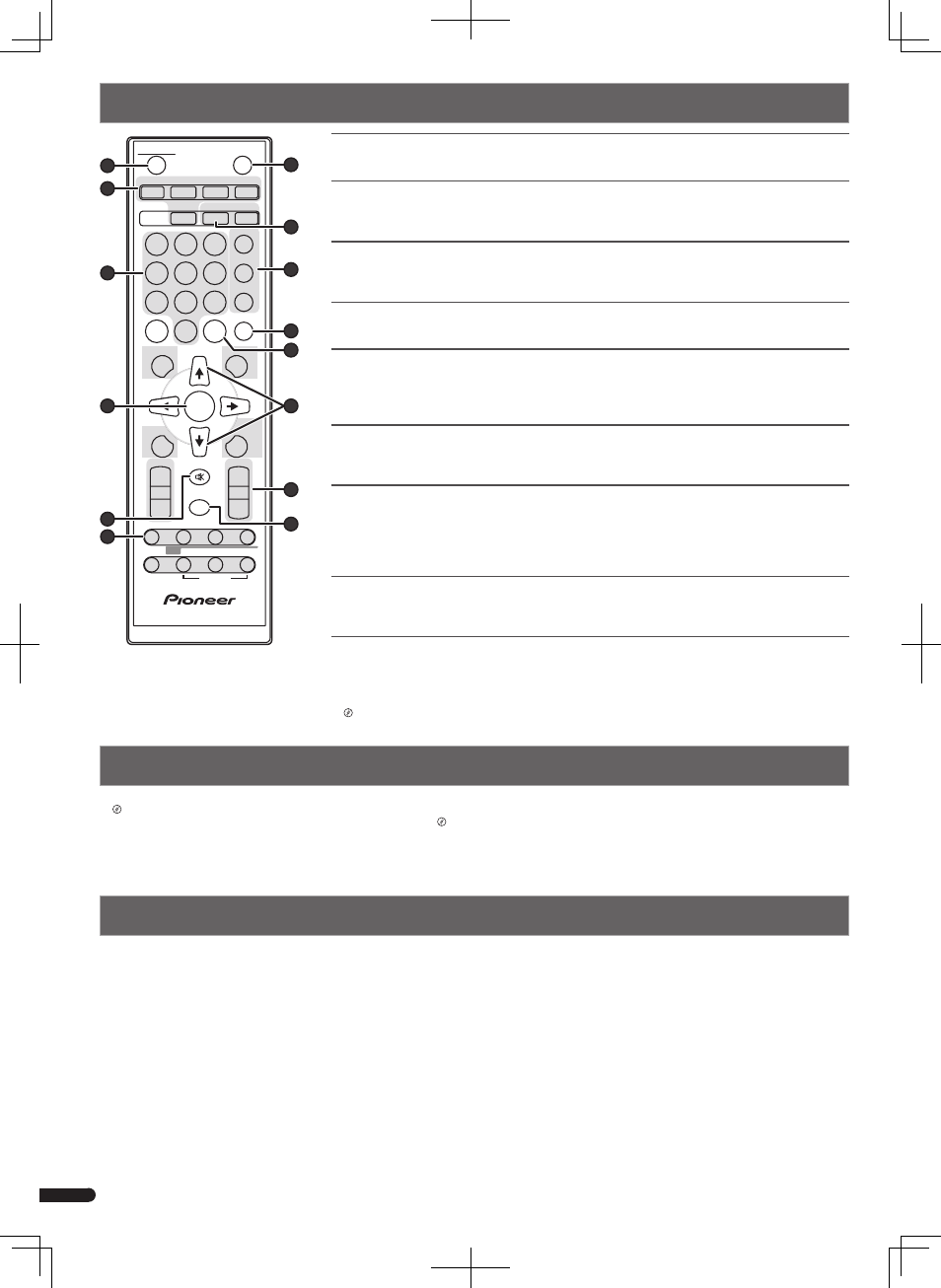

STANDBY/ON
 
CD USB TUNER AUDIO IN
DISPLAY FOLDER
MENU
PRESET VOLUME
ST/MONO ASPM PTY DISPLAY
+
MUTE
TUNE–
TUNE+
DIMMER
   
 
–
+
–
MEMORY
/PROGRAM
1 2 3
4 5 6
7 8 9
0
BT AUDIO CLOCK/TIMER SLEEP
EQUALIZER
P.BASS
BASS/TREBLE
RANDOM CLEAR REPEAT
OPEN/CLOSE
RDS
ENTER
OPTION
8
9
10
11
13
14
1
2
3
4
5
6
12
7
l “Pairing with the unit (Initial registration)”
