Pioneer DVH-P5900MP User Manual
Page 9
8
English
Español
Deutsch
Français
Italiano
Nederlands

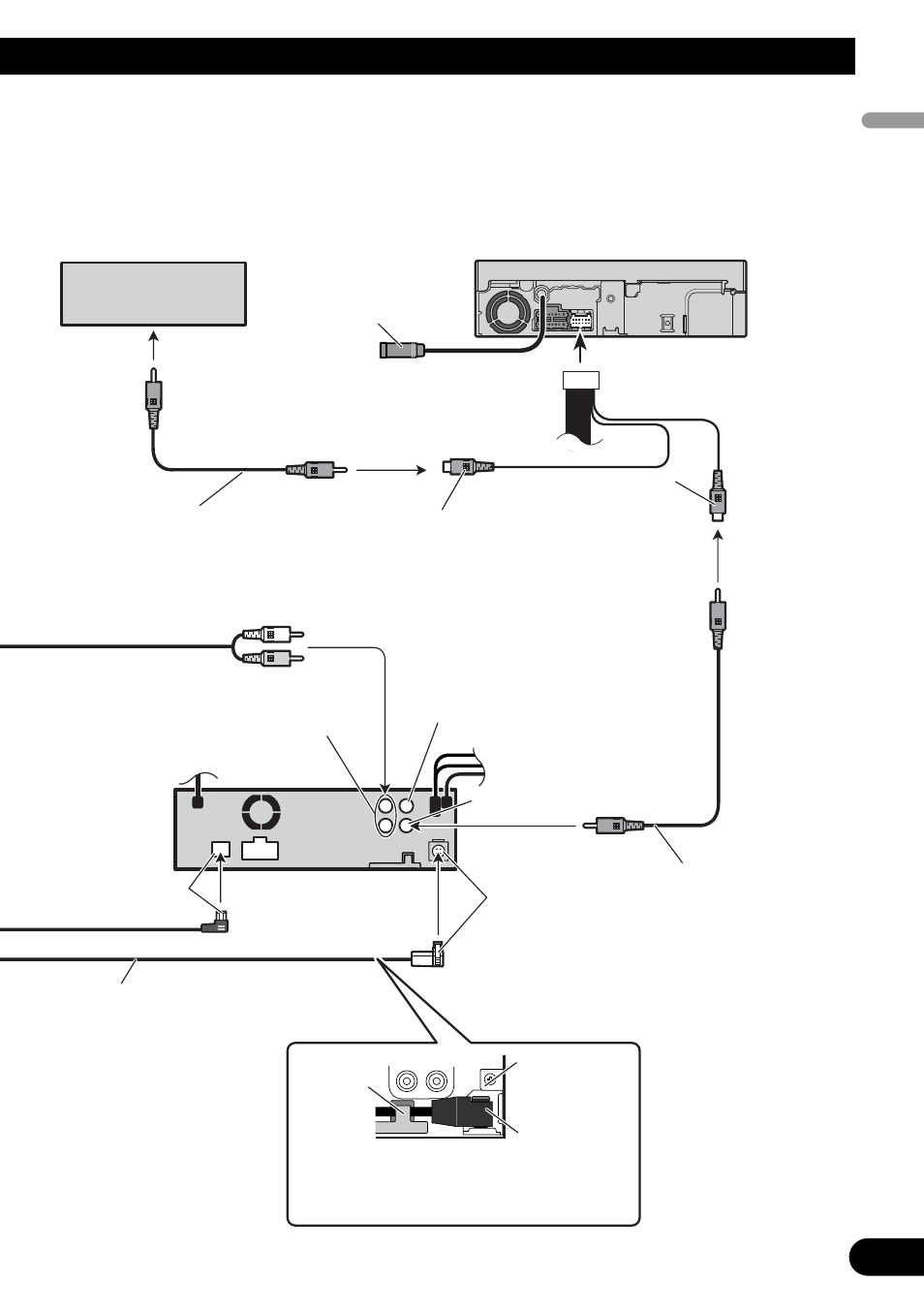

Video input 2
(VIDEO 2/BACK
CAMERA INPUT)
Rear view camera
Yellow
RCA cable
(sold separately)
Blue
Black
Video input
Video output
Video input
(VIDEO INPUT)
(Yellow)
AV system display
(e.g. AVX-7600)
(sold separately)
DEQ output
RCA cable
(supplied)
This product
This product
Optical cable
(supplied with multi-channel processor)
Not used
1.5 m
Hook
When connecting an optical cable, secure the
optical cable with the hook as illustrated.
Optical cable
