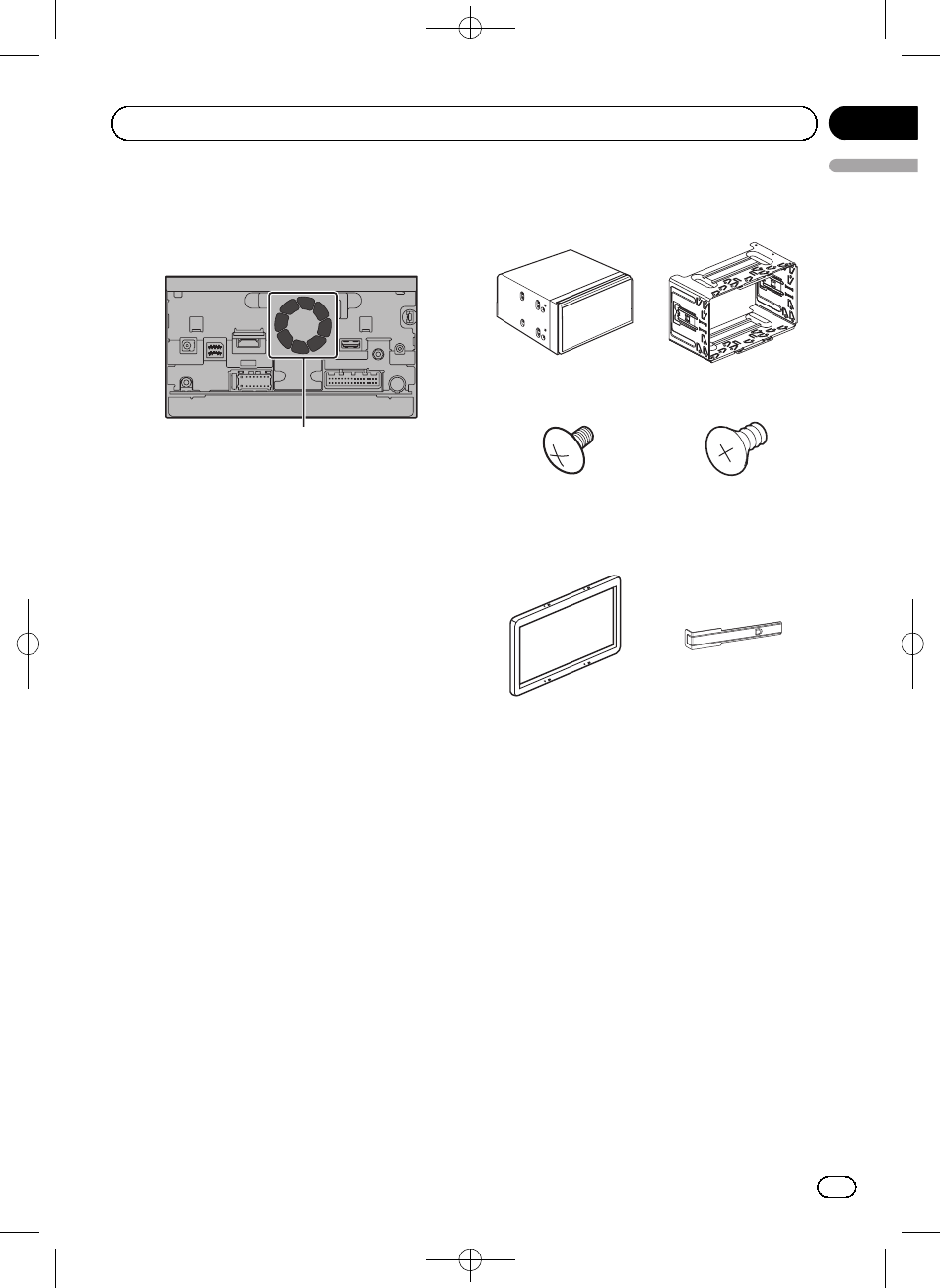

! The cords must not cover the area shown
in the figure below. This is necessary to
allow the amps and navigation mechanism
to dissipate heat.
Do not cover this area.
! The semiconductor laser will be damaged
if it overheats, so don
’t install the naviga-
tion unit anywhere hot
— for instance, near
a heater outlet.
Parts supplied
Parts marked (*) are pre-installed.
The navigation unit Holder*
Truss head screw
(5 mm × 8 mm)
(6 pcs.)
Flush surface screw
(5 mm × 9 mm)
(6 pcs.)
Trim ring* Extraction Key
(2 pcs.)
