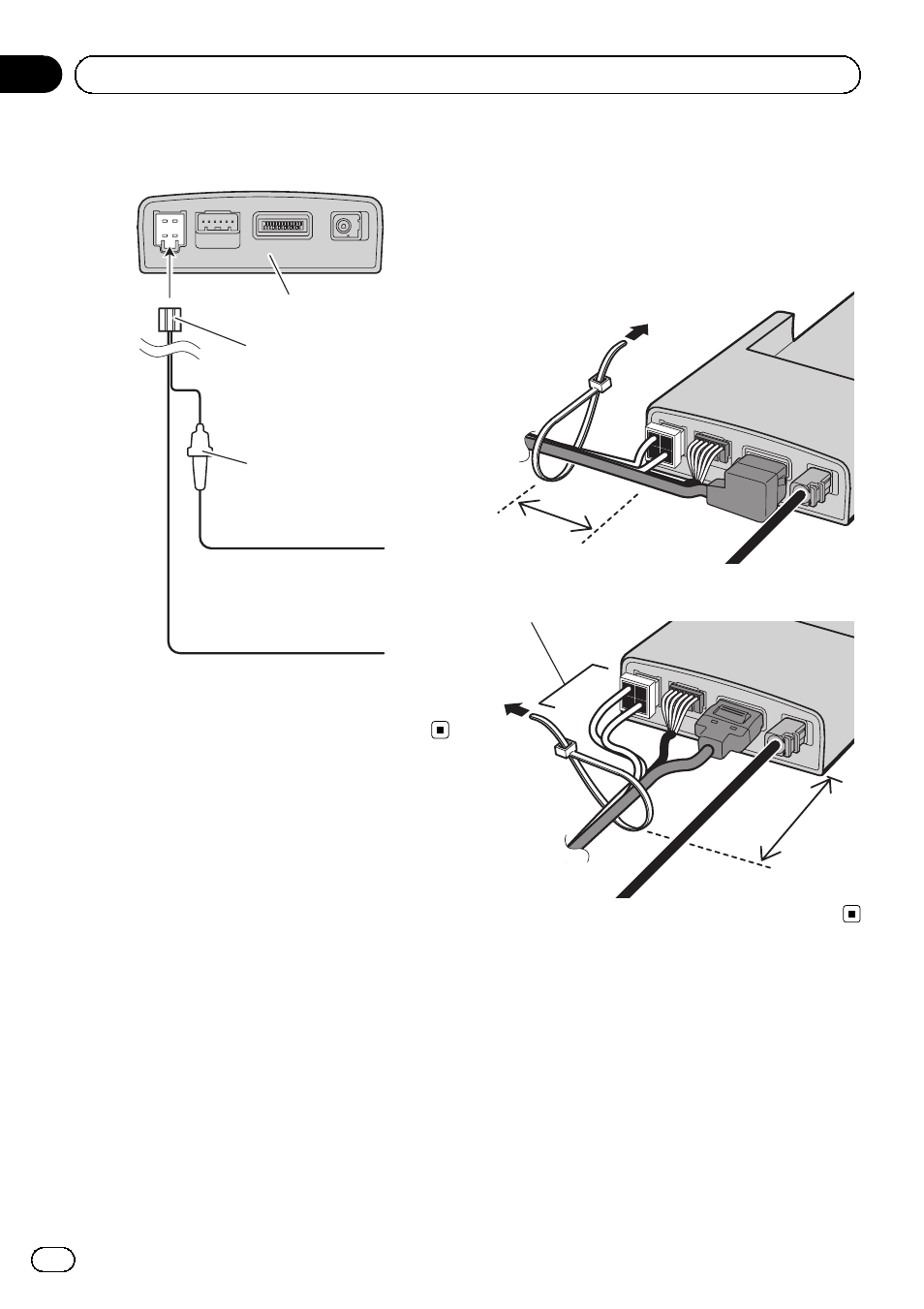

Connecting the power cord
Yellow
To terminal always supplied
with power regardless of
ignition switch position.
Black (earth)
To vehicle (metal) body.
Power cord
Base unit
Fuse holder
Tying the cables
Tie loose cables in a bundle to prevent the
cables breaking.
% Tie loose cables with the lock tie.
4 cm to 8 cm
Leave enough slack part between each terminal and
tying part.
4 cm to 8 cm
