<2>

Connecting the units

WARNING

• To avoid the risk of accident and the potential

violation of applicable laws, no viewing of front

seat video should ever occur while the vehicle is

being driven.

• In some countries or states the viewing of images

on a display inside a vehicle even by persons

other than the driver may be illegal. Where such

regulations apply, they must be obeyed.

CAUTION

• PIONEER does not recommend that you

install or service your display yourself.

Installing or servicing the product may

expose you to risk of electric shock or other

hazards. Refer all installation and servicing

of your display to authorized Pioneer service

personnel.

• Secure all wiring with cable clamps or

electrical tape. Do not allow any bare wiring

to remain exposed.

• Do not drill a hole into the engine

compartment to connect the yellow lead

of the unit to the vehicle battery. Engine

vibration may eventually cause the insulation

to fail at the point where the wire passes from

the passenger compartment into the engine

compartment. Take extra care in securing the

wire at this point.

• Make sure that wires will not interfere with

moving parts of the vehicle, such as the

gear shift, parking brake or seat sliding

mechanism.

• Do not shorten any leads. If you do, the

protection circuit may fail to work properly.

WARNING

LIGHT GREEN LEAD AT POWER CONNECTOR

IS DESIGNED TO DETECT PARKED STATUS

AND MUST BE CONNECTED TO THE POWER

SUPPLY SIDE OF THE PARKING BRAKE SWITCH.

IMPROPER CONNECTION OR USE OF THIS

LEAD MAY VIOLATE APPLICABLE LAW AND MAY

RESULT IN SERIOUS INJURY OR DAMAGE.

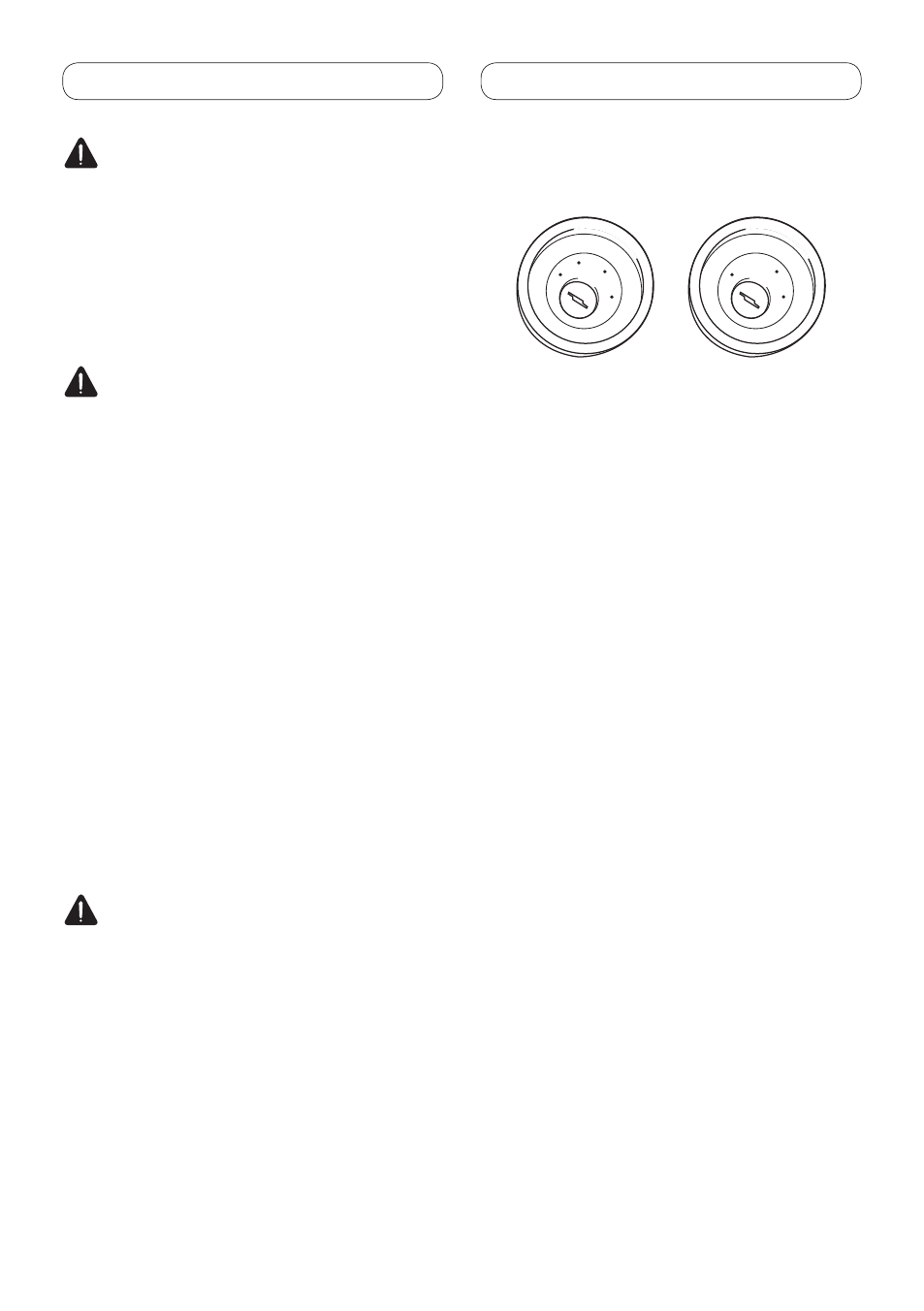

Notes

• This unit cannot be installed in a vehicle without

ACC (accessory) position on the ignition switch.

ACC ON

S

TA

RT

O

FF

ON

S

TA

RT

O

FF

ACC position

No ACC position

• Use this unit in other than the following

conditions could result in fire or malfunction.

— Vehicles with a 12-volt battery and negative

grounding.

— Speakers with 50 W (output value) and 4 ohm

to 8 ohm (impedance value).

• To prevent short-circuit, overheating or

malfunction, be sure to follow the directions

below.

— Disconnect the negative terminal of the

battery before installation.

— Secure the wiring with cable clamps or

adhesive tape. To protect the wiring, wrap

adhesive tape around them where they lie

against metal parts.

— Place all cables away from moving parts, such

as gear shift and seat rails.

— Place all cables away from hot places, such as

near the heater outlet.

— Do not pass the yellow cable through a hole

into the engine compartment to connect to a

battery.

— Cover any disconnected cable connectors with

insulating tape.

— Do not shorten any cables.

— Never cut the insulation of the power cable of

this unit in order to share the power to other

equipment. Current capacity of the cable is

limited.

— Use a fuse of the rating prescribed.

— Never wire the speaker negative cable directly

to ground.

— Never band together multiple speaker’s

negative cables.

• Control signal is output through blue/white cable

when this unit is powered on. Connect it to an

external power amp’s system remote control or

the vehicle’s auto-antenna relay control terminal

(max. 300 mA, 12 V DC). If the vehicle is equipped

with a glass antenna, connect it to the antenna

booster power supply terminal.
