SERVICE (cont.
TANK HEATER SWITCH (cont.)
15. Reconnect the two black wires to the tank heater
switch terminals.
16. Set tank assembly inside the hood on mounting
brackets and secure with two #8-32 screws.
17. Reconnect the wires to the limit thermostat and
tank heaters. Refer to Limit Thermostat and Tank
Heater sections in this manual when reconnecting
wires.
18. Reinstall the faucet tube and reconnect the water
supply tube to the coil assembly.
19. Secure the sprayhead tube to the hood using hex
nut.
20. Install sprayhead.
21. Install fill basin, inlet gasket and secure to tank lid
with tank inlet fitting.
22. Carefully install water fill tube into the back of the
fill basin.
23. Reconnect and turn on the incoming water supply.
24. Refer to Fig. 16 when reconnecting the wires.
P1135

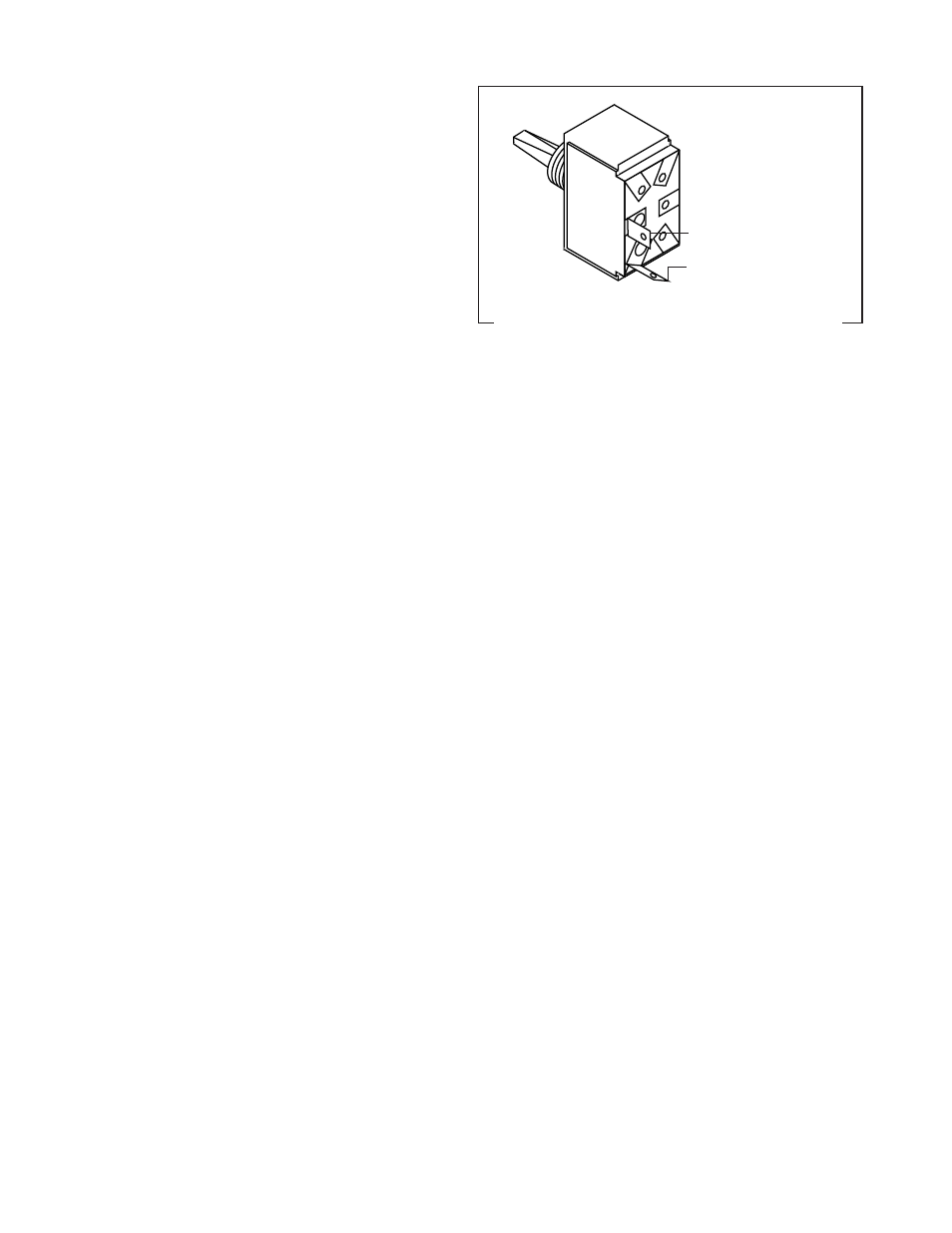

FIG. 16 TANK HEATER SWITCH TERMINALS
28182 090100
BLK to Limit thermostat
BLK to Terminal Block
(Black Insert)
