Connecting the RS23 / RS24 Foot Switch
The RS23/RS24 foot switch works only with the
Transcription Module.
Connect the foot switch either to a USB port or a
serial port on your PC.

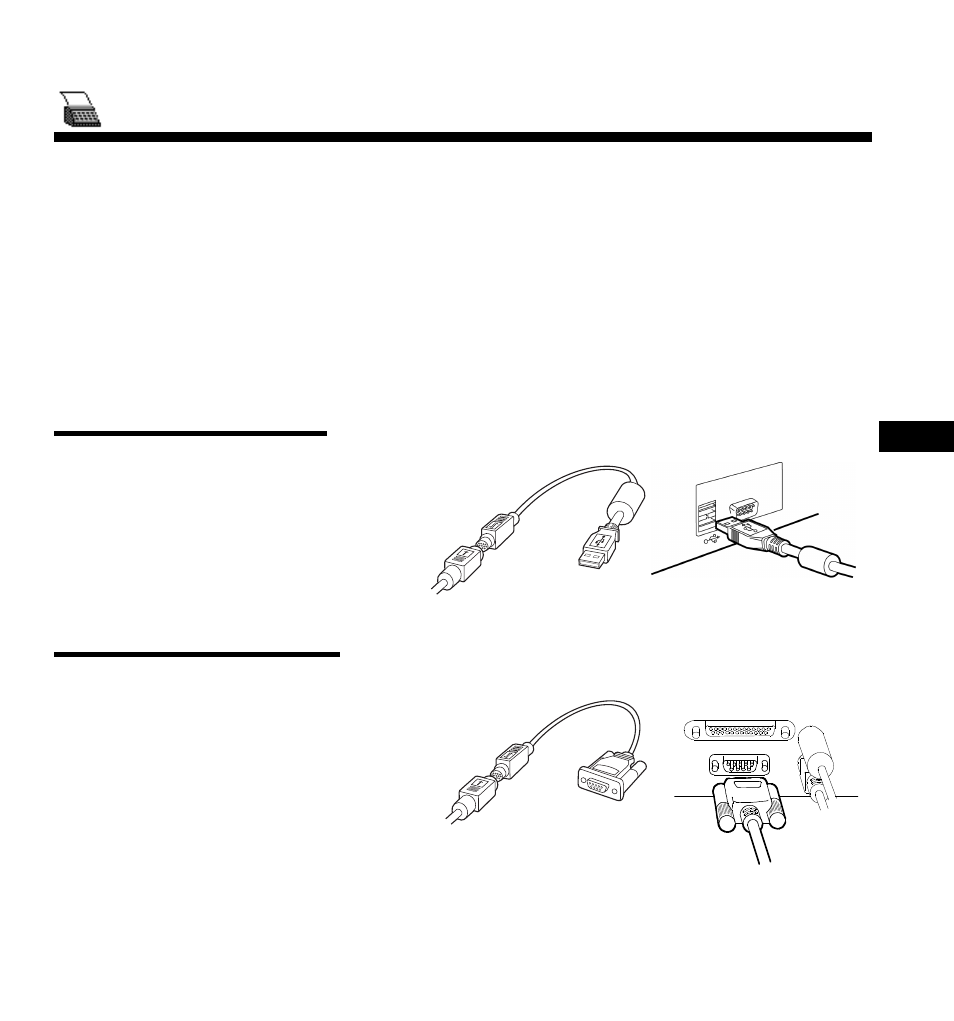

Connecting to a USB Port
1
Connect the foot switch cable to
the USB adapter cable.
2
Connect the USB adapter cable
to the PC’s USB port.
Connecting to a Serial Port
1
Connect the foot switch cable to
the serial adapter cable.
2
Connect the serial adapter cable
to the PC’s serial port.
USB adapter
Serial adapter
1
1
2
2
