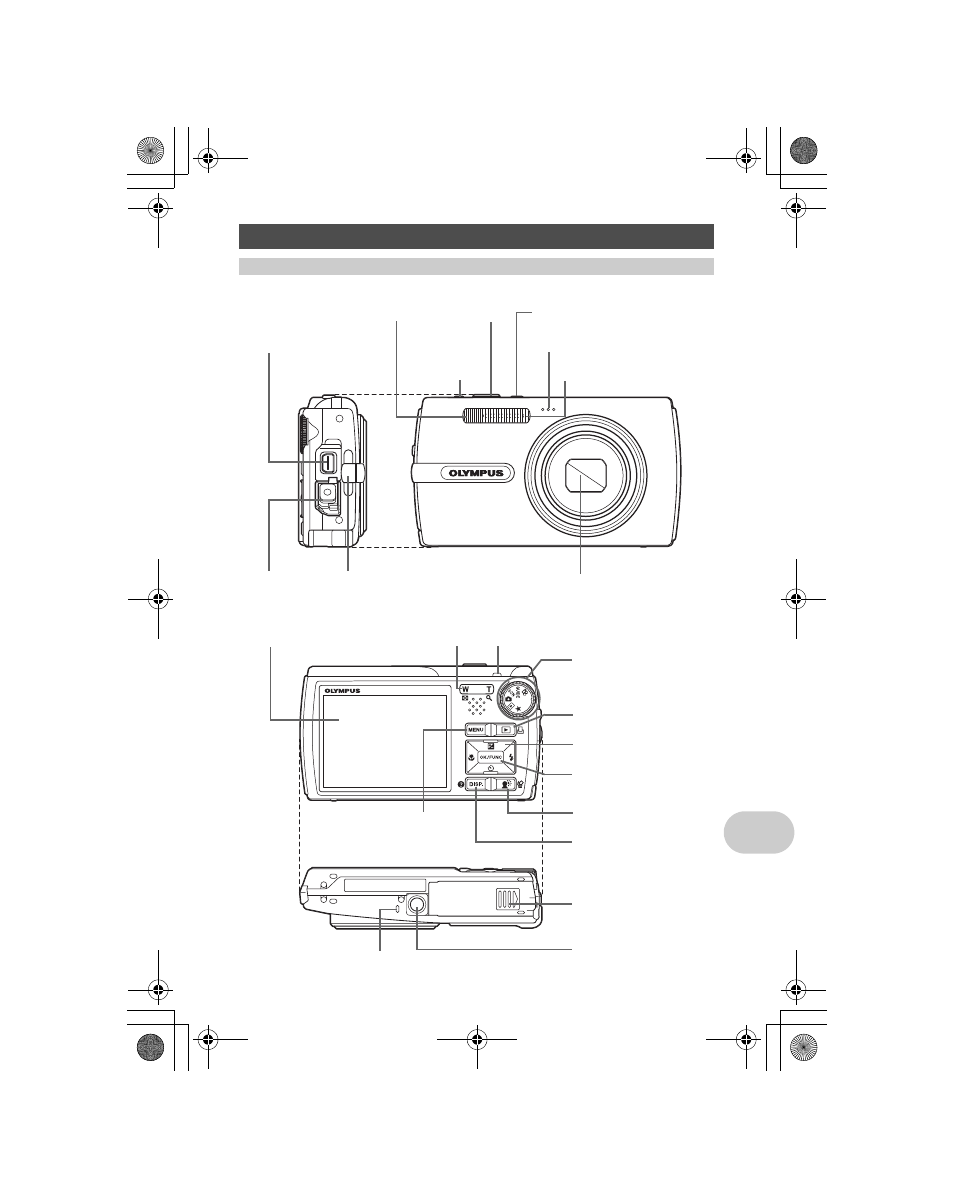

CAMERA DIAGRAM
Camera
Flash (P. 16)
Shutter Button
(P. 9, 11) Self-Timer Lamp
(P. 16, 56)
Lens
(P. 11, 62)
Zoom Button (P. 15)
f/S Button
(Shadow Adjustment
Technology/Erase)
(P. 10, 17)
Arrow Pad ( 1243)
(P. 14)
e Button (P. 14)
Strap Eyelet
(P. 3)
Battery/Card Compartment
Cover
(P. 4)
Tripod Socket
Connector Cover
(P. 37, 38, 47)
Multi-Connector
(P. 37, 38, 47)
Monitor (P. 35, 74)
m Button
(P. 14)
Microphone (P. 26)
Speaker
o Button
(P. 6, 11)
Card Access Lamp
(P. 49, 56, 64)
h button
(Image stabilizer)
(P. 17)
Mode Dial
(P. 6, 10, 12)
q/< button
(Playback/Print) (P. 17)
g/E Button (P. 18)
