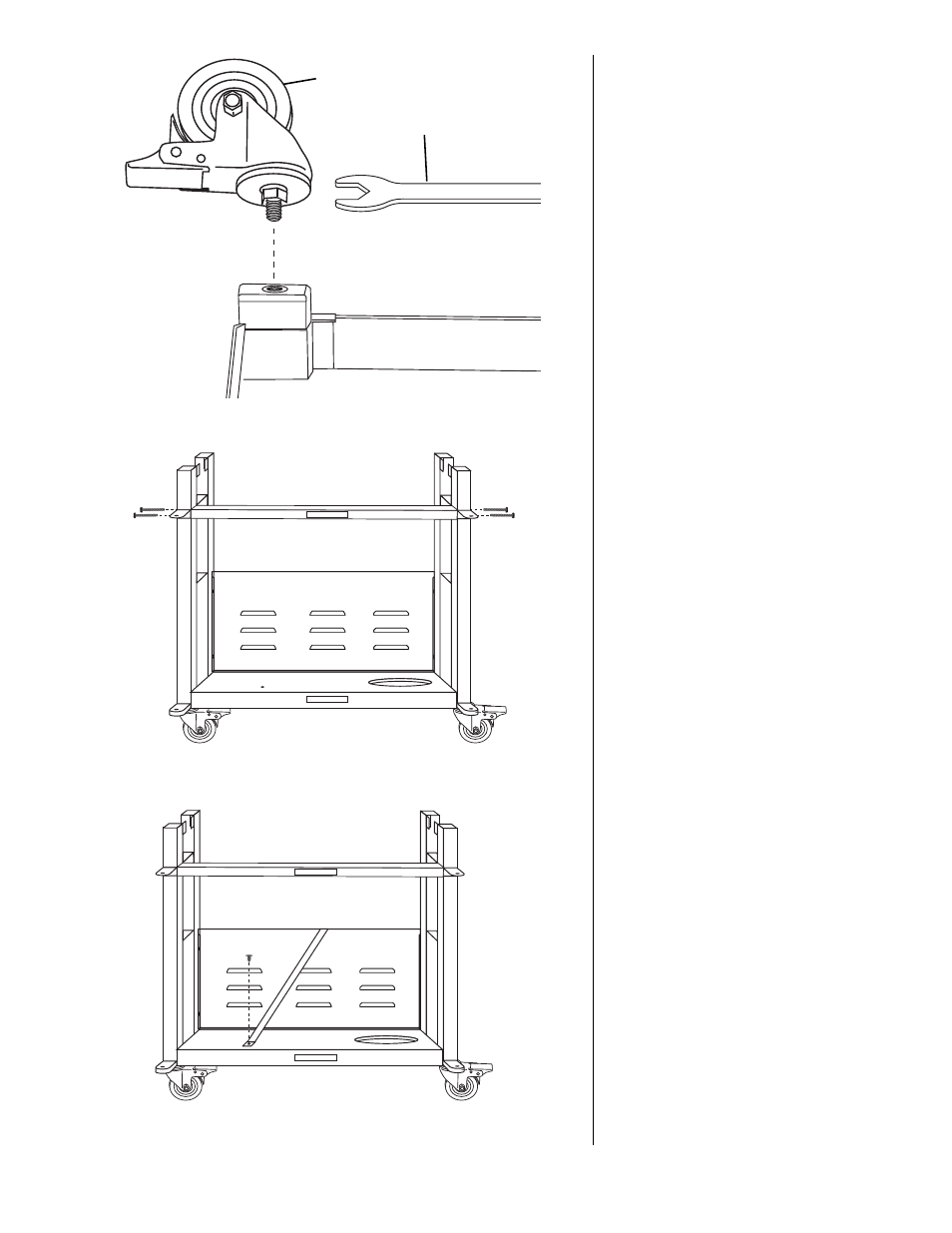

Step 4
Attach locking casters to the bottom
of the left side cart panel. Tighten
caster bolts securely using hex nut
wrench provided in parts card.
Step 5
Install door bracket using the four
M6 x 50mm bolts. Make sure door
stop is set toward front of cart.
Note: Leave bolts hand tight until
Step 8.
Step 6
Attach the tank block bar onto the
base panel using one M6 x 12mm
bolt. Top of the tank bar will be
attached in Step 7.
24
Locking Caster
Hex Nut Wrench
