402400 to 402499

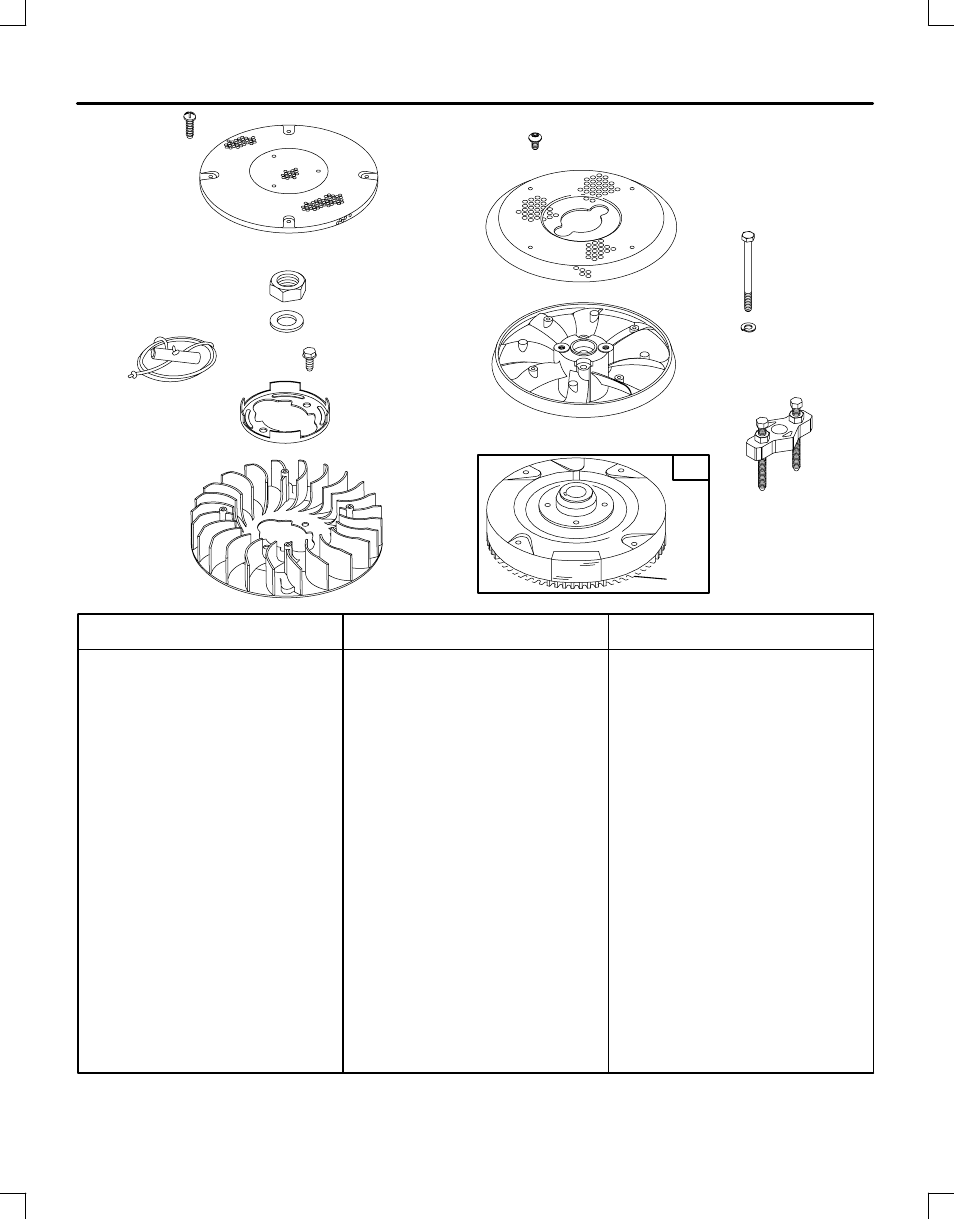

9489–12 Assemblies include all parts shown in frames. 65
12
1006
823
75
332
78
23
726
1005
468
324
321
74
85
189
518
363
23 491180 Flywheel
––––––– Note –––––
491179 Flywheel
Used on Type No(s).
1106, 1126, 1205,
1209, 1210, 1212,
1213, 1214, 1220,
1221, 1224, 1225,
1505, 1507, 4009,
4010, 4026.
74 93808 Screw–Phillips
75 222511 Washer–Spring
78 94326 Screw–Torx R Hex.
85 94385 Screw–Hex.
189 90366 Washer–Lock
321 213852 Fan–Booster
(Used After Code Date
93011700).
213472 Fan–Booster
(Used Before Code
Date 93011800).
––––––– Note –––––
213854 Fan–Booster
(Used After Code Date
93011700).
213460 Fan–Booster
(Used Before Code
Date 93011800).
Used on Type No(s).
1210, 1211, 1213,
1217, 1223, 1226,
4012.
324 224779 Screen–Rotating
332 230674 Nut–Hex.
363 19203 Puller–Flywheel
468 224521 Screen–Rotating
518 69932 Rope–Starter
726 391362 Gear–Ring
(Including Mtg. Parts)
823 94627 Screw–Hex.
1005 281053 Fan–Flywheel
––––––– Note –––––
280815 Fan–Flywheel
(Used Before Code
Date 93011800).
Used on Type No(s).
1106, 1205, 1206,
1210, 1211, 1213,
1217, 1218, 1220,
1221, 1223, 1224,
1225, 1226, 4012.
1006 224413 Retainer–Fan
––––––– Note –––––
223726 Retainer–Fan
(Used Before Code
Date 93011800).
Used on Type No(s).
1106, 1205, 1206,
1210, 1211, 1213,
1217, 1218, 1220,
1221, 1223, 1224,
1225, 1226, 4012.
K Included in Gasket Set–Part No. 491856.
z Included in Valve Overhaul Kit–Part No. 498047.
D Included in Carburetor Kit–Part No. 491539.
H Included in Pump Repair Kit–Part No. 393397.
