402400 to 402499

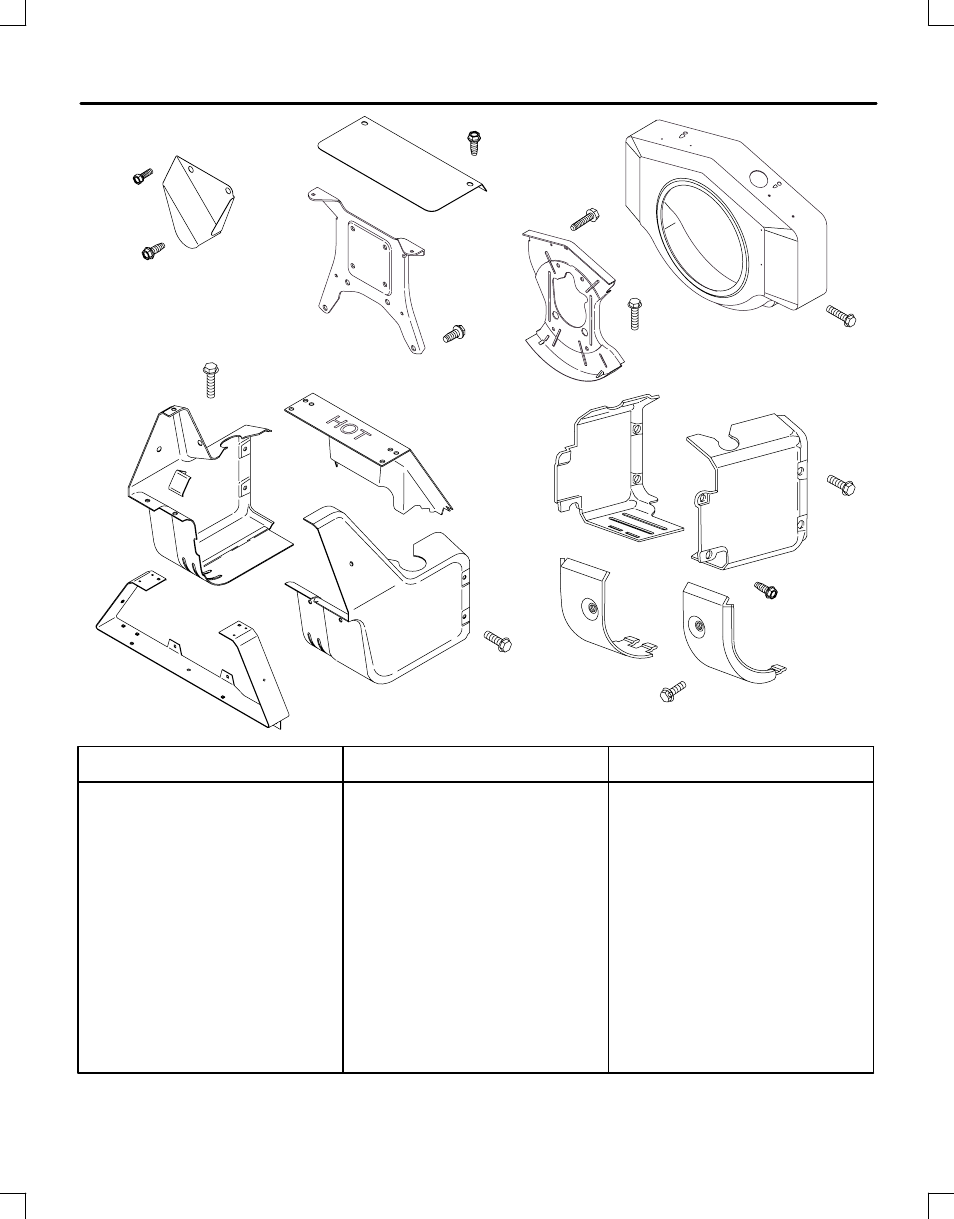

9489–11 Assemblies include all parts shown in frames. 65
11
567
423
865
308
308A
307
307
306A
866
305
865A
304
573
306
305
305
867
863
725
423
423
423
727
823
305
304 491245 Housing–Blower
305 94786 Screw–Hex.
94513 Screw–Hex.
(5/8” Long)
306 222846 Shield–Cylinder
306A 223734 Shield–Cylinder
307 94386 Screw–Hex.
(Used After Code Date
91081800).
––––––– Note –––––
93163 Screw–Hex.
(Used Before Code
Date 91081900).
308 224774 Cover–Air Guide
308A 224775 Cover–Air Guide
423 93343 Screw–Hex.
567 94811 Screw–Hex.
(Back Plate to Cyl.)
573 491444 Plate–Back
725 224777 Shield–Heat
727 222987 Guard–Flywheel
823 94627 Screw–Hex.
863 222776 Bracket–Muffler
865 392991 Cover–Air Guide
(Cylinder #1)
865A 495618 Cover–Air Guide
(Cylinder #2)
866 393025 Cover–Air Guide
867 224773 Frame–Air Guide
K Included in Gasket Set–Part No. 491856.
z Included in Valve Overhaul Kit–Part No. 498047.
D Included in Carburetor Kit–Part No. 491539.
H Included in Pump Repair Kit–Part No. 393397.
