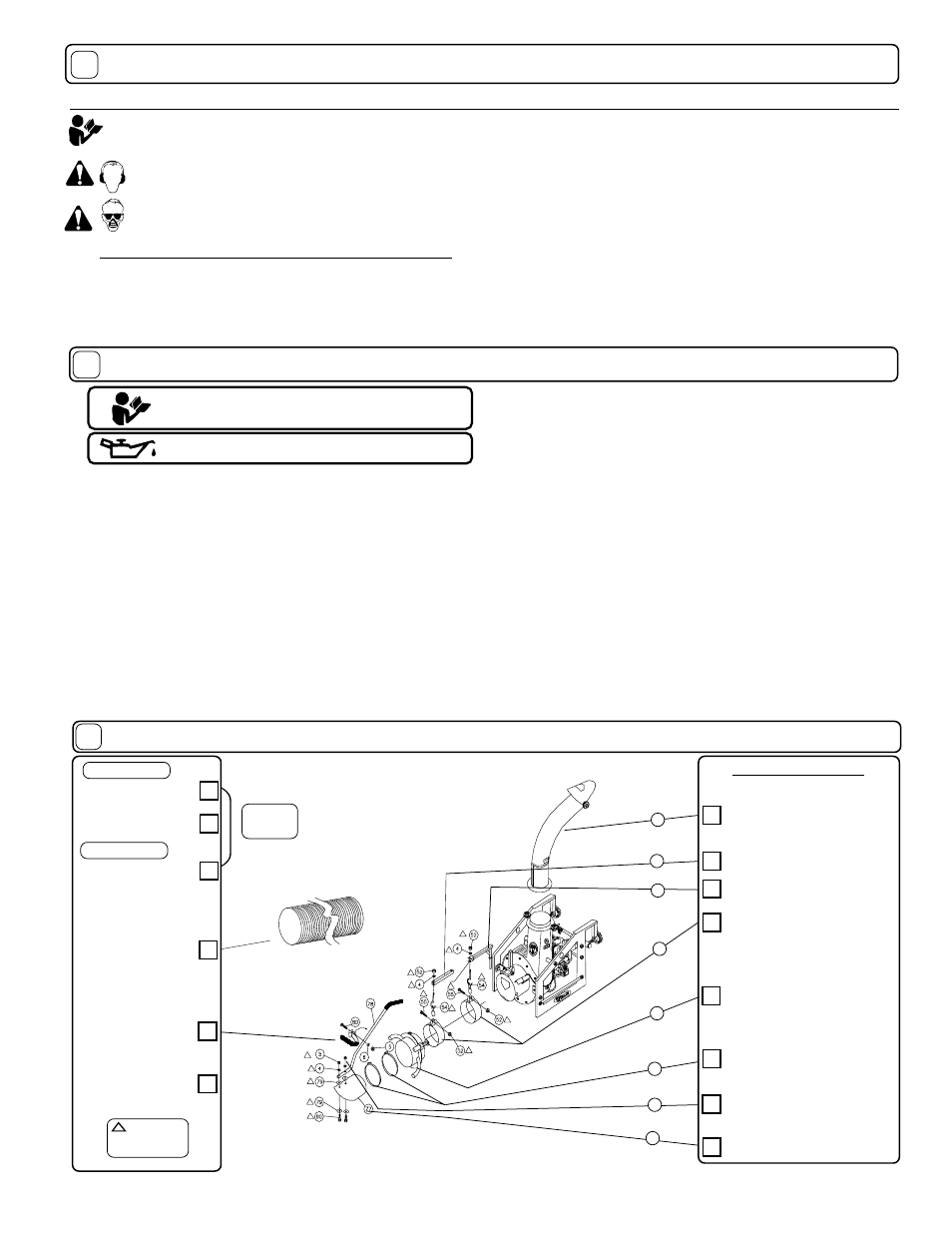

Part No. 811237 Form No. F050304A Page 3 of 12
For your safety and the safety of others, these directions should be followed:
Use of Ear Protection is recommended while
operating this machine.
Do not operate this machine without first reading
owner's manual and engine manufacturer's manual.
Use of Eye and Breathing protection is recom-
mended when using this machine, especially in dry
and dusty conditions.
·DO NOT place hands or feet inside nozzle intake opening,
near debris outlet or near any moving parts.
·DO NOT start engine without hose and exhaust elbow
connected firmly in place to housing and exhaust outlet.
GENERAL SAFETY
PACKING CHECKLIST
9
Boxing Checklist
Exhaust Elbow 811191
Boom Square Arm 810875
Check
Boom Pivot WA 810870
Band Hose Boom 8" (203mm)
810880 Qty. 2
Coupler Weld Assy. 8"(203mm)
811170
Hose Clamps 8"(203mm)
810566 Qty. 2
Handle Nozzle 811020
Nozzle 8"(203mm) 811007
11
These items should be included in
your carton. If any of these parts are
missing, contact your dealer.
ASSEMBLY
10
·DO NOT operate without discharging exhaust into enclosed
container.
·DO NOT operate during excessive vibration.
·DO NOT remove hose until engine has been turned off and has
come to a complete stop.
·DO NOT operate machine with hose or exhaust elbow removed.
·DO NOT use this machine for vacuuming exclusively sand,
dust, fine dirt, rock, glass, string like material, grain, rags,
cans, metal, bark or water.
·DO NOT operate this machine on slopes greater than 20%.
·DO NOT pick up any hot or burning debris, or any toxic or
explosive material.
·DO NOT allow children to operate this equipment.
PUT OIL IN ENGINE BEFORE STARTING.
Read all safety and operating instructions
before assembling or starting this unit.
Your Billy Goat is shipped from the factory in one carton and is
completely assembled except for the exhaust elbow, nozzle, handle
loop for nozzle, hose booms, hose bands, hose coupler, hose clamps
and related hardware.
1. ASSEMBLE exhaust elbow (item 10), to main unit and firmly tighten
knobs (item 90), that are preassembled to main unit.
2. SECURELY ATTACH unit to tailgate of a truck or to a trailer, so that
the exhaust discharges into an enclosed container.
3. ATTACH hose to hose coupler (item 24), using hose clamp (item
60) NOTE: This unit is equipped with a unidirectional hose. Assemble
hose so that interior hose material seams face toward unit.
4. ASSEMBLE hose coupler to housing of main unit and securely
tighten knob (item 13), that is preassembled to housing front plate.
5. ASSEMBLE nozzle handle loop (item 82), to nozzle handle using
screw (item 80), washer (item 6) and lock nut (item 5). Adjust handle
loop to desired height and angle and securely tighten in place.
6. ASSEMBLE nozzle handle (item 78), to nozzle (item 77), using
screws (item 80), washers (item 79), washers (item 4) and lock nuts
(item 5).
7. ATTACH assembled nozzle to hose using hose clamp (item 60).
Before tightening hose clamp, position nozzle handle upward when hose
is stretched to prevent twisting load on hose assembly during operation.
8. ASSEMBLE tube square boom (item 51), to boom pivot (item 50),
using chain loop assembly (item 54), washers (item 4) and lock nut
(item 52).
9. ASSEMBLE remaining chain loop assembly (item 54), to end of tube
square boom (item 51) using washer (item 4) and lock nut (item 52).
10. SLIDE boom assembly into square tube on front of housing.
11. ASSEMBLE hose bands (item 56) around hose and onto chain loop
assemblies on boom assembly using screws (item 55) and lock nuts
(item 52) (see ADJUSTING HOSE BOOM on page 5).
Engine
Manual Per
Model
10
50
59
60
78
77
51
56 Hose 8"x 12.5'
P/N 810523
TR MODELS
Parts Bag
& Literature
Assy
Handle Loop Nozzle
P/N 811019
Parts Bag &
Literature Assy
P/N 811128
Briggs & Stratton 11 HP
Honda 13 HP
HTR MODELS
Briggs & Stratton
Vanguard-Twin 18 HP
