3

4

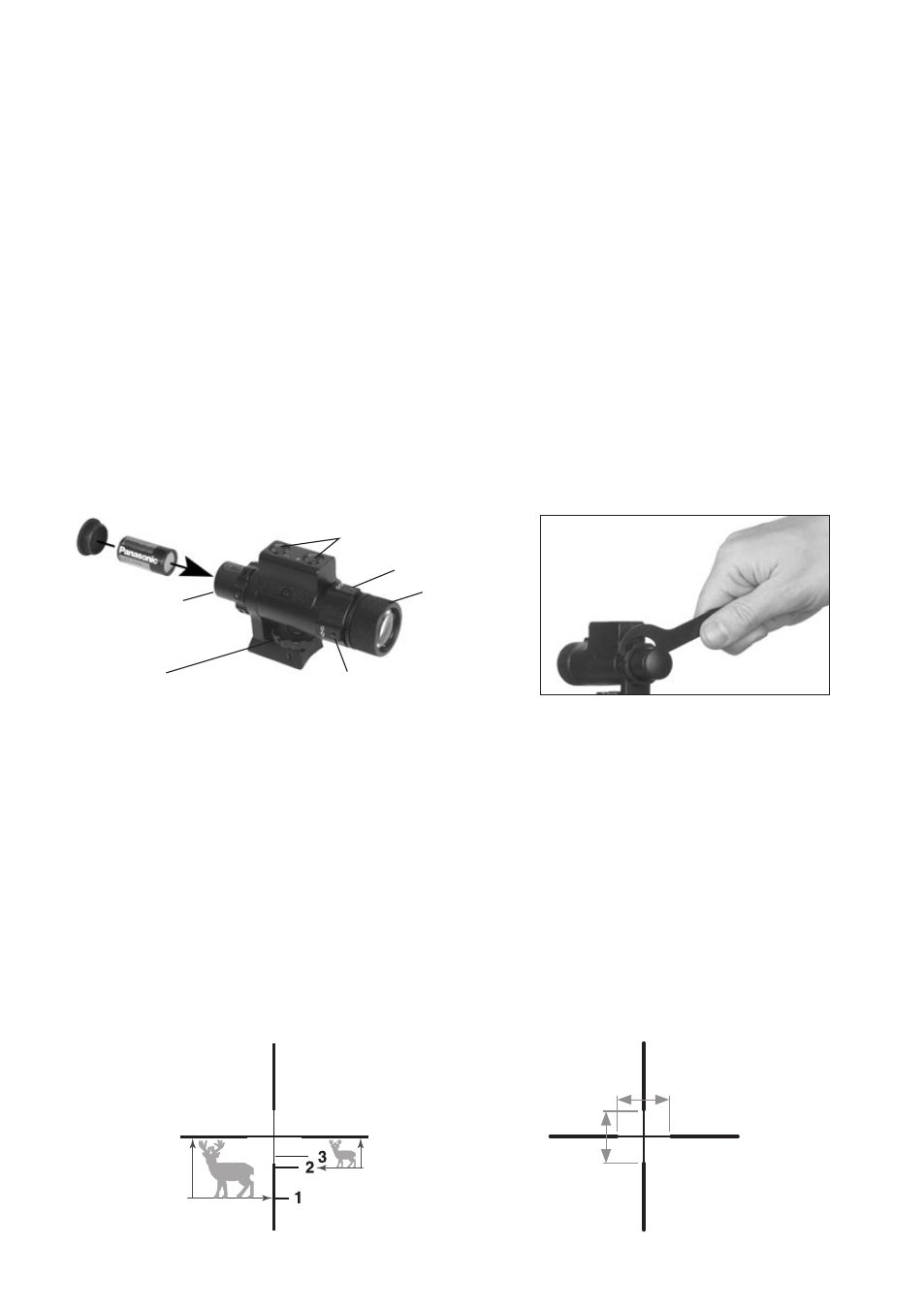

IR Brightness

Adjustment

Battery

Housing

Fixation

Screw

IR Elevation

IR Windage

IR Focusing

If a 6’ target fits

between these two

lines then the target

is 100 yards away

If a 6’ target fits

between these two

lines then the target

is 200 yards away

The thin lines

correspond to

1.25 yards at 100

yards distance

IR ILLUMINATOR

Infra-red (IR) Illuminators are common for

night vision technology. The IR light greatly

enhances the performance of your Aries

scope, while remaining almost totally invis-

ible to the naked eye. In dark environment,

power up the Aries scope. Now, find a scene

and examine it without the IR on then with IR

powered up. Note the difference in illumina-

tion. It is important to remember that the IR

illuminator is simply an infra red light source,

and like any light source it may loose its

effectiveness over a great distance.
To fix the IR Illuminator to the riflescope

screw the thumb screw on the IR into the

thread on the scope. To switch the IR on and

to adjust the brightness rotate the rheostat

located on the side of the Illuminator. The

changes of adjustment could be observed

while looking through the scope. The IR is

off when the mark on the rheostat coincides

with “0” on the scale.

NOTE: The riflescope could be equipped with

digitally controlled IR.

The IR illuminator control buttons are

located on its side. To switch the Digital IR

illuminator on/off press “+” and “-” buttons

simultaneously. When the IR illuminator is

switched on you can see the green LED lit.

By pushing the buttons “+” and “-” you may

adjust the IR brightness.
The IR beam is focusable to change the

field of coverage. To change the beam width

slightly turn the IR lens.
You could change the IR control panel fitting

your needs. The screw-tool included into

the set should be used for weakening the

fixing screw located on the IR. Rotate the IR

placing at in the most convenient position.

Tighten the screw with the screw-tool to fix

the new position.

The range finder reticle in Aries 6900/7900/

8900 was designed to assist you in deter-

mining the range of your target.
These distances are based on a 6’ target.
A 6’ target fits between the numbered base-

line (the three short horizontal lines directly

next to the numbers) and the main horizon-

tal line. If the 6’ target fits between the 1 and

the right horizontal post of the main line the

target is 100 yards away. If the same target

fits between the 2 and the right post of main

line the target is 200 yards away. The same

is with the three, the target is 300 yards

away.

Aries 390 reticle gives a clearly aiming

point, even when hard-to-see game blends

into the background. Thinner posts and

crosshairs center section covers a mini-

mum of the target and allow for less target

coverage, making precision shots on small

targets easy.
Heavy posts stand out against cover and

leads your eye directly to the center inter-

section. The result is fast precision aiming.

RANGEFINDER RETICLE
