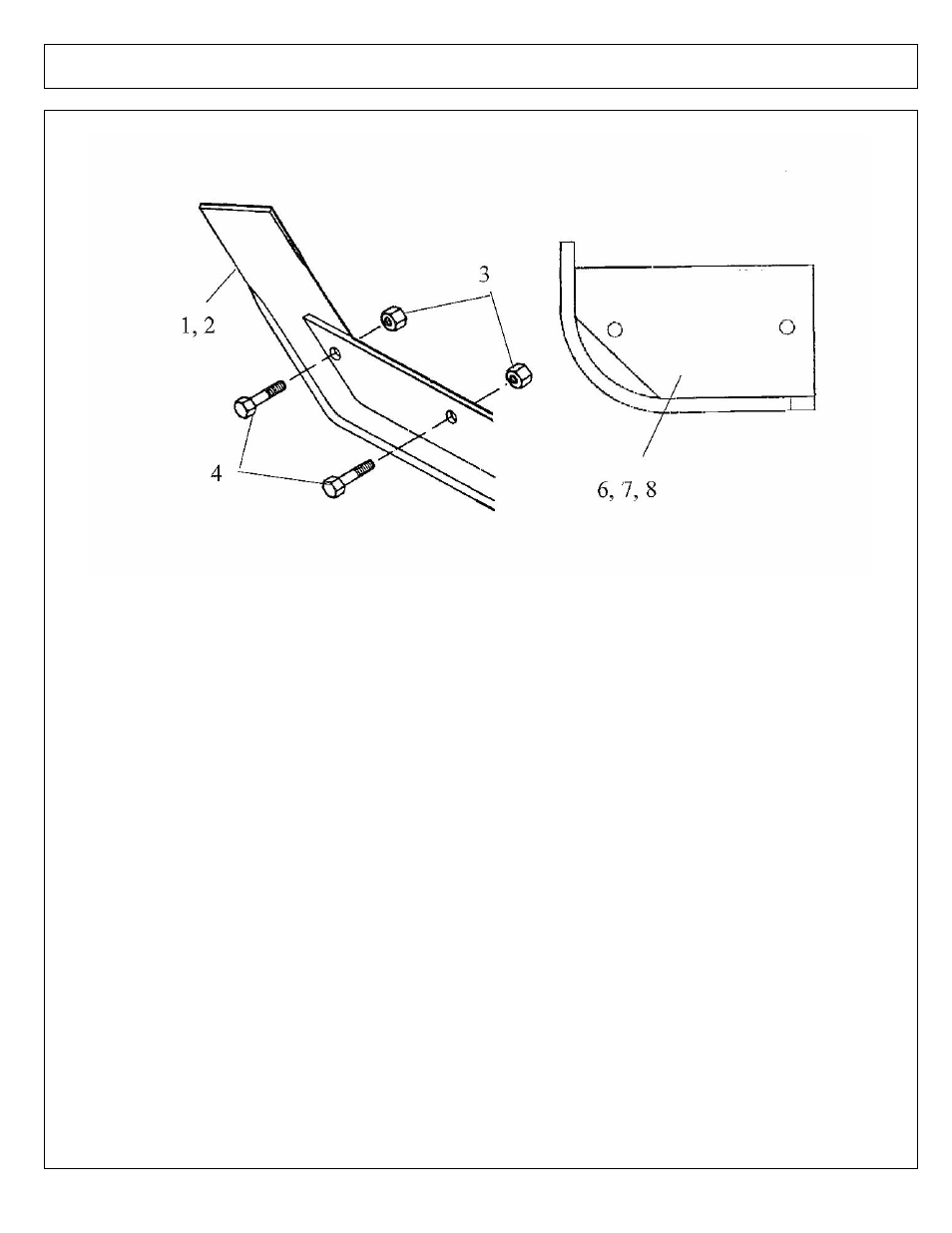

SKID SHOES - CENTER & WING SECTIONS
ITEM PART NO. QTY. DESCRIPTION
1 00750993 1 SKID SHOE WELDMENT, RH WING (SHOWN)
2 00750989 1 SKID SHOE WELDMENT, LH WING
3 02716500 4 LOCKNUT, TOPLOCK 1/2"-NF PLB
4 00749171 4 BOLT, HEX HEAD 1/2"-20UNF X 1-1/4" PL GR5
5 00750991 - SKID SHOE KIT, LH & RH WING, (ITEMS 1,2,3 & 4)
6 00751305 2 SKID SHOE WELDMENT, CENTER SECTION
7 00749171 4 BOLT, HEX HEAD 1/2"-20UNF X 1-1/4" PL GR5
8 02716500 4 LOCKNUT, TOPLOCK 1/2"-NF PLB
