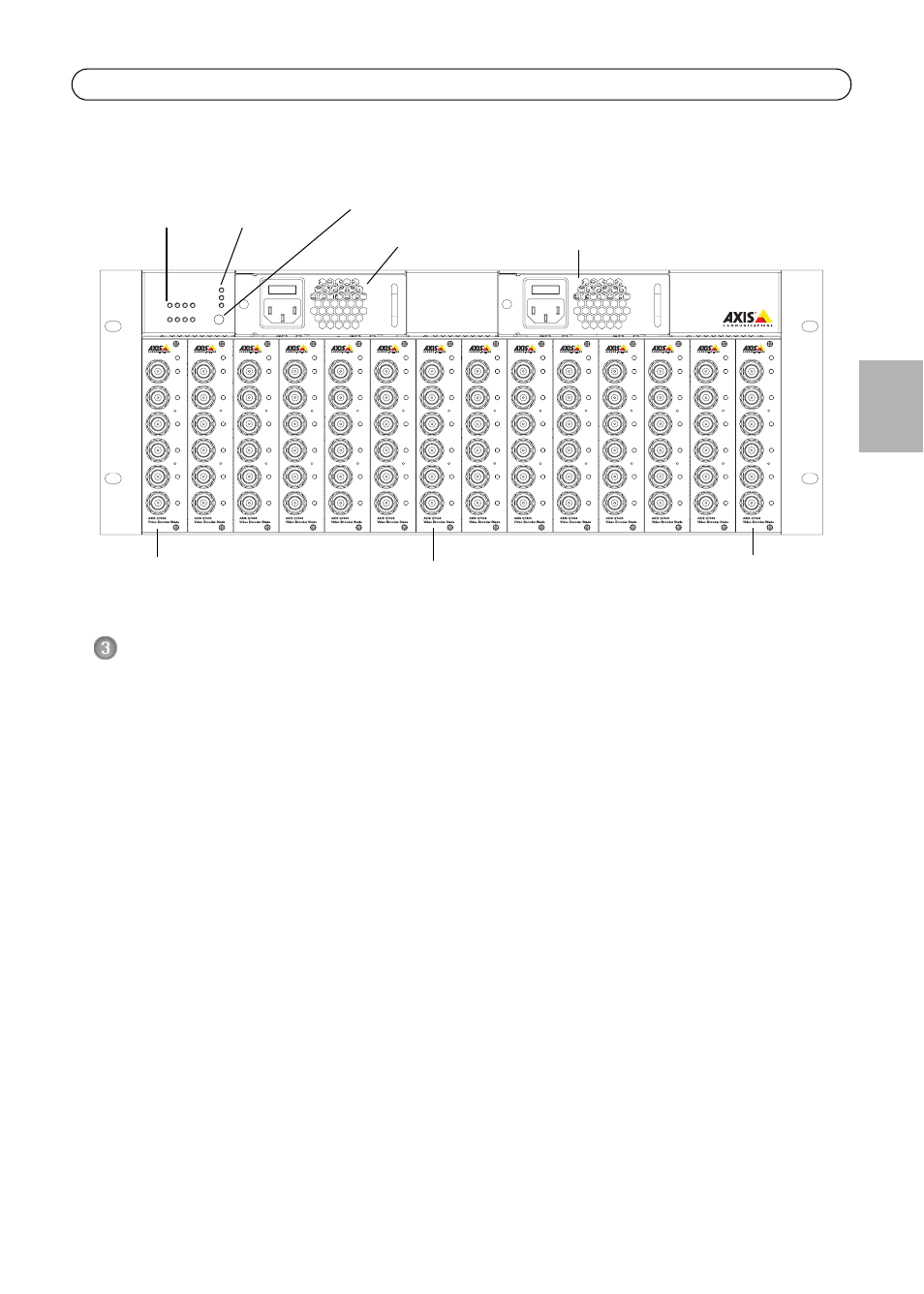

AXIS Q7900 Rack (FrontView)
Install the hardware
General placement requirements
The location of the AXIS Q7900 must meet the following requirements:
• Ambient temperature: 0° to +45°C (32° to 113°F)
• Relative humidity: 20-80%
• Power source within 1.8 meters
• There must be a minimum of 5cm free space on the top, bottom, front and rear of the AXIS
Q7900 to ensure adequate ventilation
• No excessive dust
Placement requirements for installation in a 19” equipment rack
When mounting the AXIS Q7900 in an equipment rack, never stack other units directly on top - the
mounting brackets are not designed to support more than 1 unit.
• Pozidriv screwdriver #1
• Pozidriv screwdriver #3
• The AXIS Q7900 must be grounded to the same ground as the equipment rack.
• The equipment rack must be braced and bolted to the floor.
