Page 87
81

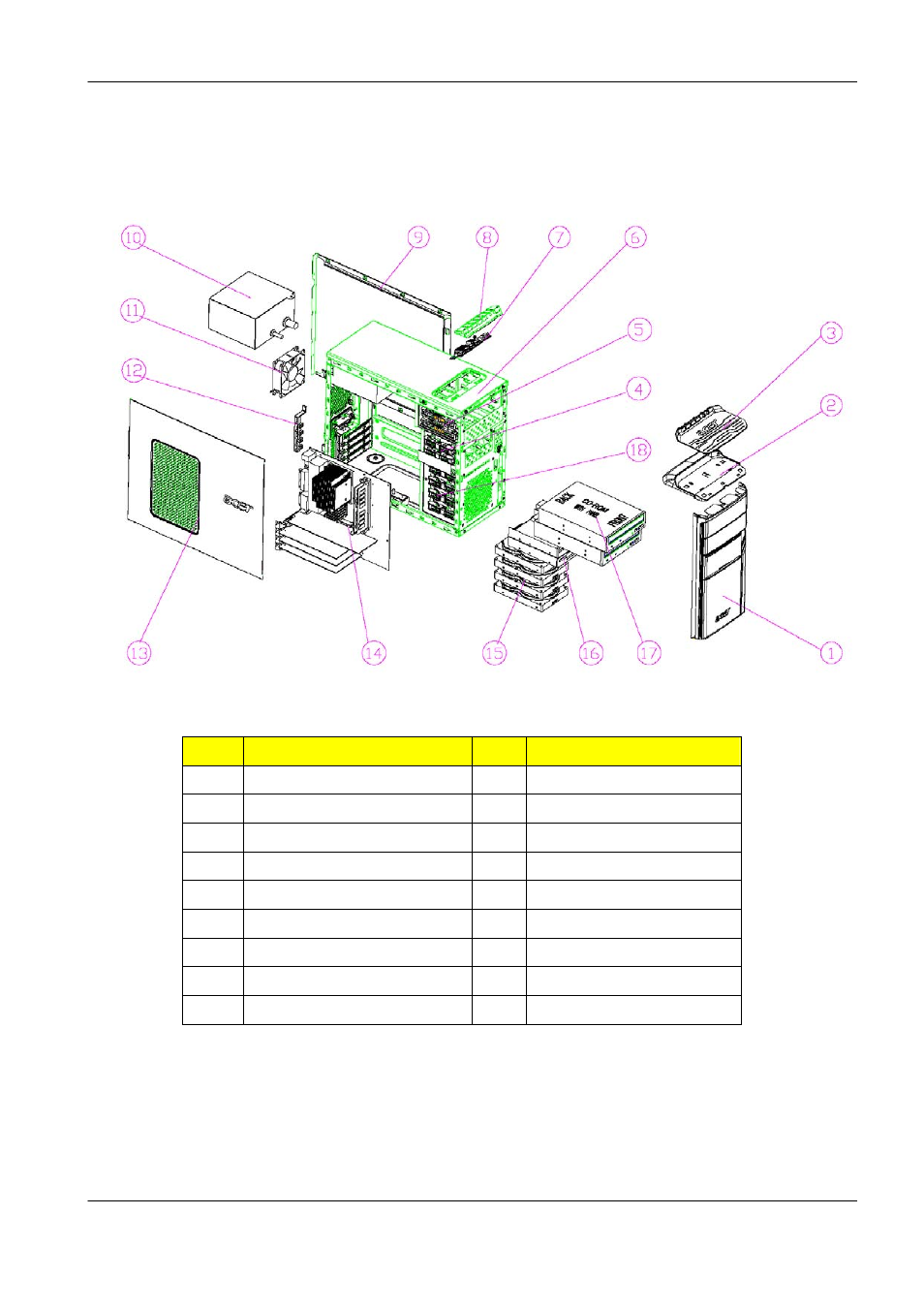

Exploded Diagram
NO
DESCRIPTION
NO DESCRIPTION
1 AM50_MAIN_BEZEL
10
POWER
SUPPLY
2 AM50_USB
11
FAN
3 AM50_USB_PANEL
12
PCI-BRACKET
4
FDD_LOCK_SLIDE
13
LEFT SIDE DOOR
5
CD_ROM LOCK SLIDE
14
HOTHER BOARD
6 CHASSIS
15
HDD
7 USB_PCB_ASN
16
3.5
DEVICE
8 USB-SHIELDING
17
CD-ROM
9
RIGHT SIDE DOCR
18
HDD-LOCK-SLIDE
