11

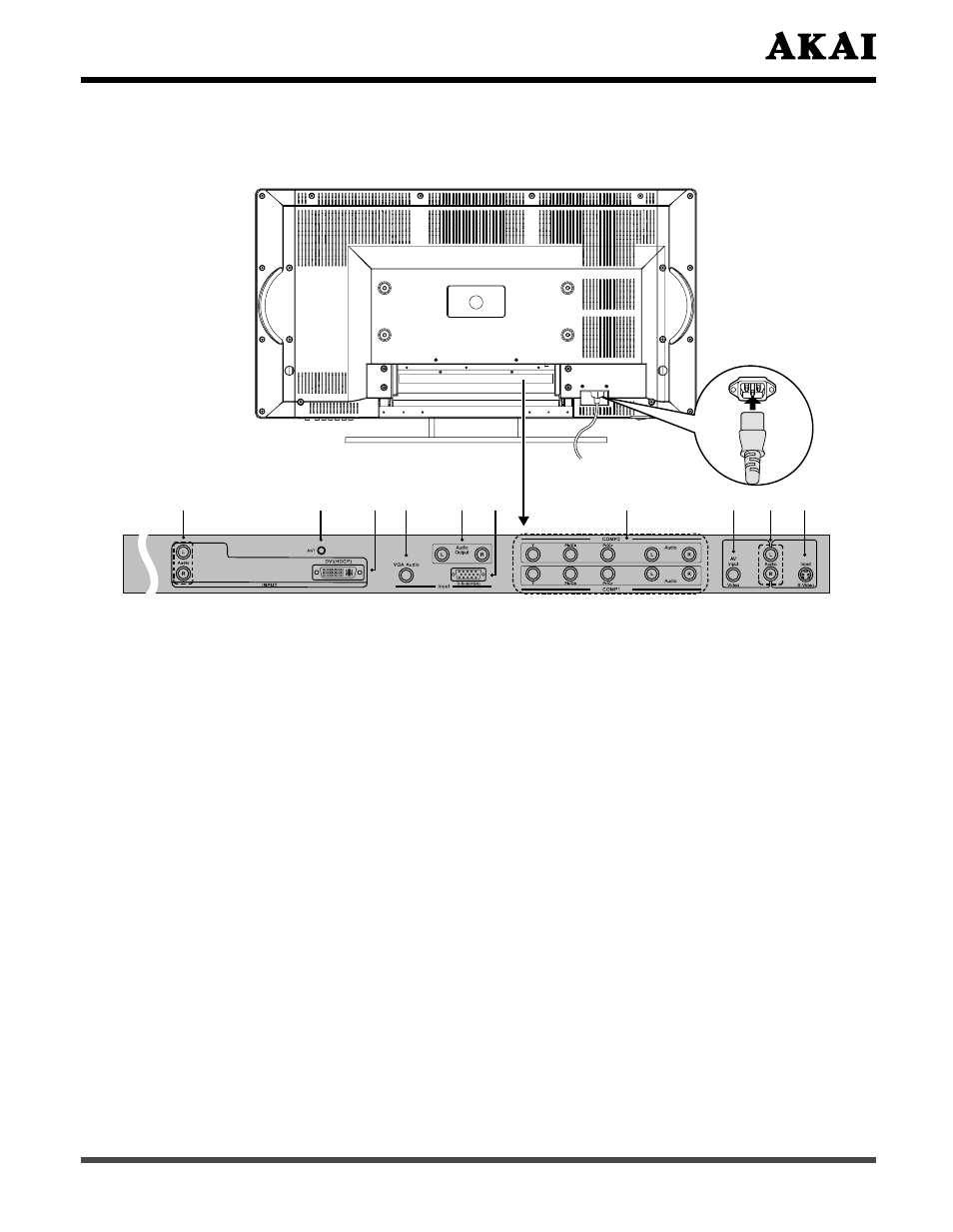

4.2 Rear View
Sketch map
Use the included power cord and connect to an earthed 100-240V, 50/60Hz AC outlet.
Signal input and other terminals:
. DVI(HDCP) Audio INPUT: Connect to the audio L and R output jacks of a device
with DVI Audio output.
. ANT In: Connect antenna or cable 75 Ohm coaxial Aerial to receive TV/CABLE signal.
. DVI(HDCP) INPUT: Connect to the digital video output jack of a device with DVI output.
. VGA Audio INPUT: Connect the audio terminal to the audio output terminal of the PC.
. AUDIO OUTPUT: Connect audio amplifier or other TV set that with audio input.
. D-SUB(VGA) INPUT: For PC display purpose. Connects to the Mini D-Sub 15 pins
analog output connector of the PC display card.
. COMPONENT1,COMPONENT2 YPbPr/YCbCr INPUT: Connect the separate
component video cables to the device having component video outputs
(YPbPr/YCbCr) to the Y, Pb/Cb, and Pr/Cr jacks of the TV.
COMPONENT1, COMPONENT2 YPbPr/YCbCr AUDIO INPUT: Connect the audio
cable to device’s audio L and R jacks and to the L and R audio jacks of the TV.
. VIDEO INPUT: Video and Audio inputs for external devices, such as a camcorder or
VCR.
. AUDIO INPUT: With AV and S-Video inputs share this terminal.
. S-VIDEO INPUT: Video inputs for external devices with an S-Video output.
