Konica Minolta KIP Color 80 - Manual (Page 9)

3

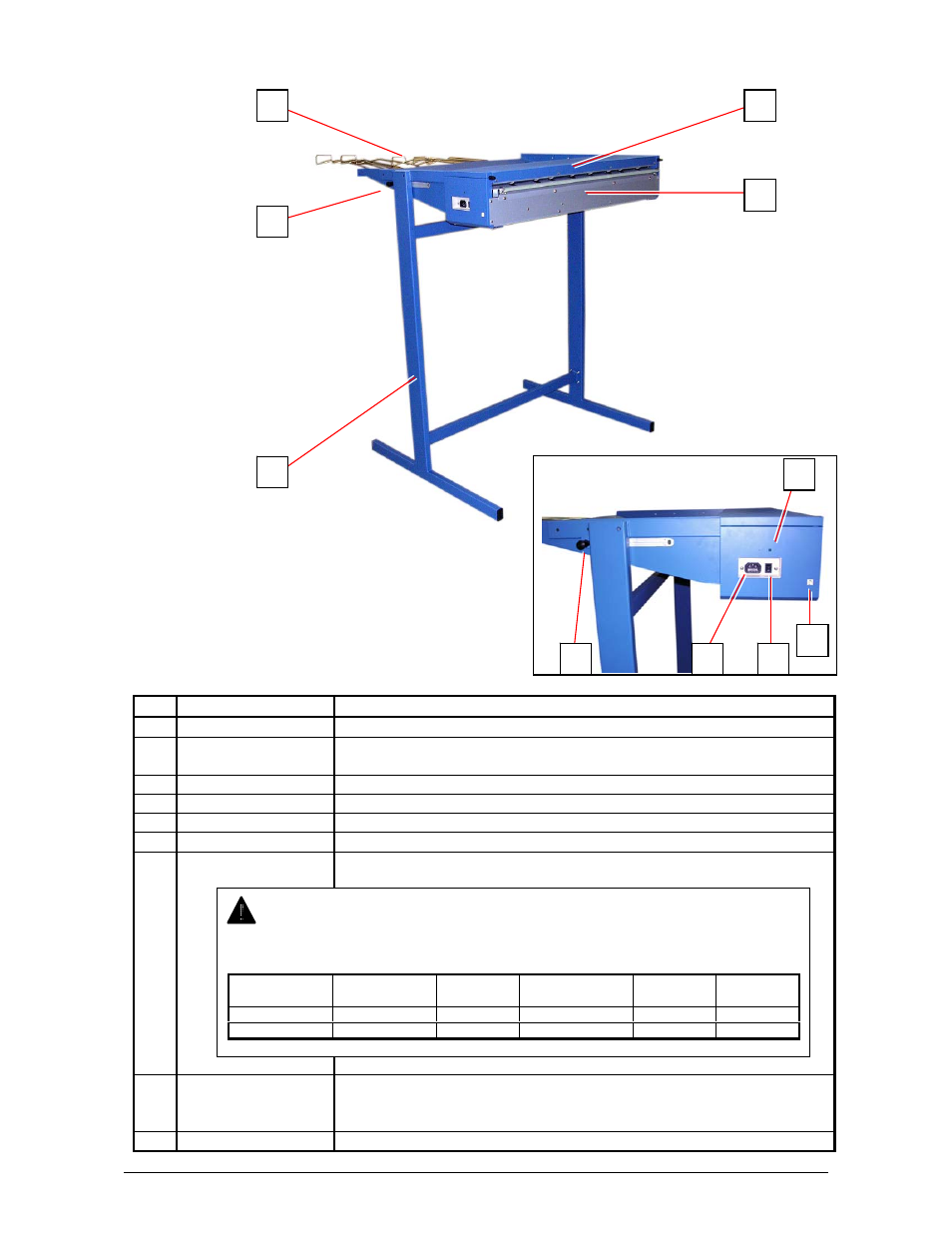

1. 3 Appearance
No. Part Name Function
1 Stacker Unit Prints are stacked here
2 Upper Panel Assy Contains feed rollers to eject prints
Will be opened to remove a jammed print
3 ST Wire Tray Supports large print stacking
4 Stacker Stand
5 ST Tray Stopper Locks/unlocks Stacker Unit
6 Power Switch Turns on/off the machine
7 AC Inlet Connect a power cord here
8 Modular Connector Connect Modular Cable here
Exclusive use for communication with the KIP Color 80 (K-107)
(Do not connect a telephone line) (RJ-11 5VDC max, less than 3m)
9 Power Indicator Indicates the machine’s power on
1
2 3
4
5 6 7
8
9
5
NOTE
One of the following power cords is included in the product accessory.
Voltage
(minimum)
Plug Socket Length
(maximum)
Remarks
US 115VAC / 7A NEMA5-15 IEC60320: C13 2.4m UL-Listed
Europe / Asia 250VAC / 10A KP-4819D KS-31A 4.8m VDE
