Atlantis Land A02-IPCAM5 - Manual (Page 17)

14
3.2.2 MPEG4

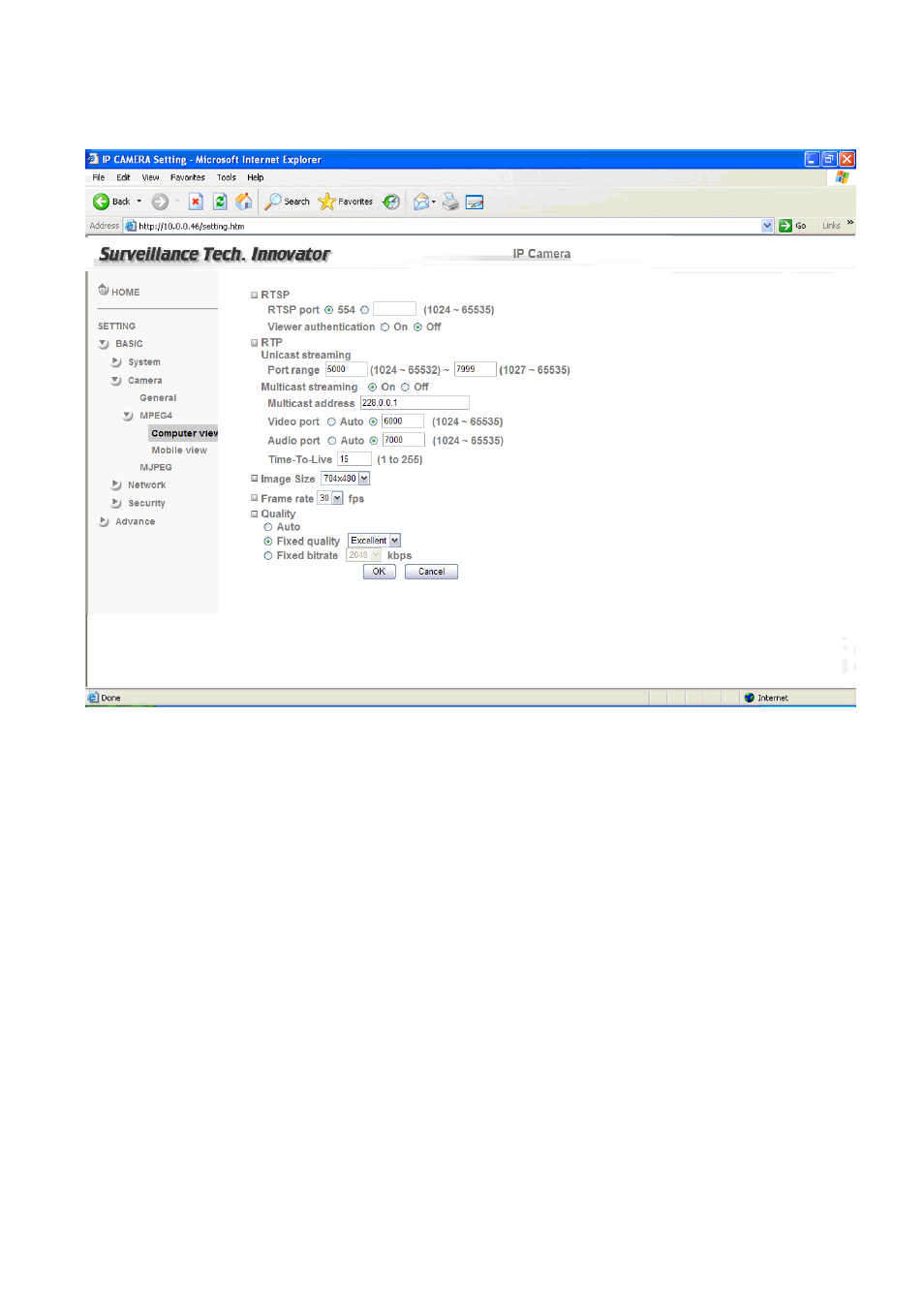

3.2.2.1 Computer View
RTSP (If RTSP mode is ON)
RTSP port: Specify the transmission port number of RTSP streaming video. Default
value is 554.
Viewer authentication: If the viewer authentication is ON, users viewing through RTSP
will be requested to key-in username and password.
RTP (If RTSP mode is ON)
Unicast streaming:
Unicast streaming Video/Audio port range: Specify the transmission port range of
RTP streaming video. RTP will select a port randomly from the range.
Multicast streaming:
Multicast address: Specify the multicast server address.
Video / Audio Port: Specify the transmission port number of the video data. Specify an
even number from 1024 to 65534.
Time-To-Live: Set the maximum TTL that multicast can pass through.
