37
Lenovo IdeaTab S2109A-F
1060 HDMI board
For access, remove these FRUs in order:
• “1010 Base cover” on page 27
• “1020 Battery pack” on page 31
• “1030 System board” on page 32
• “1040 Integrated camera” on page 34
• “1050 Speakers” on page 35

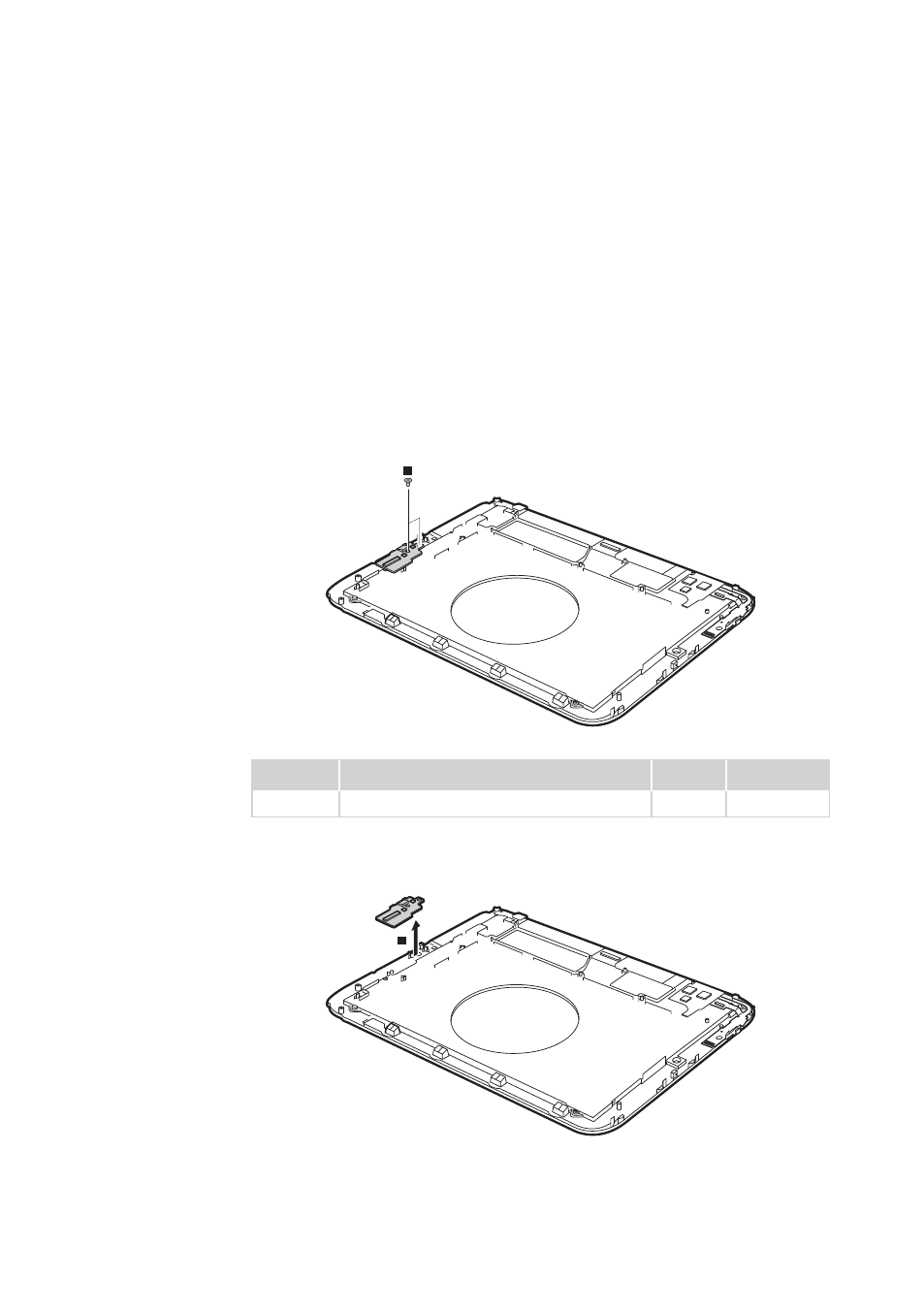

Figure 6. Removal steps of HDMI board
Remove the two screws 1 .
1
Step Screw (quantity) Color Torque
1
M3.6 x 2.2 mm, flat-head, nylon-coated (1) Black 0.8-1.0 kg/cm
Remove the HDMI board in the direction shown by arrow 2 .
2
