28
Lenovo IdeaTab S2109A-F Hardware Maintenance Manual

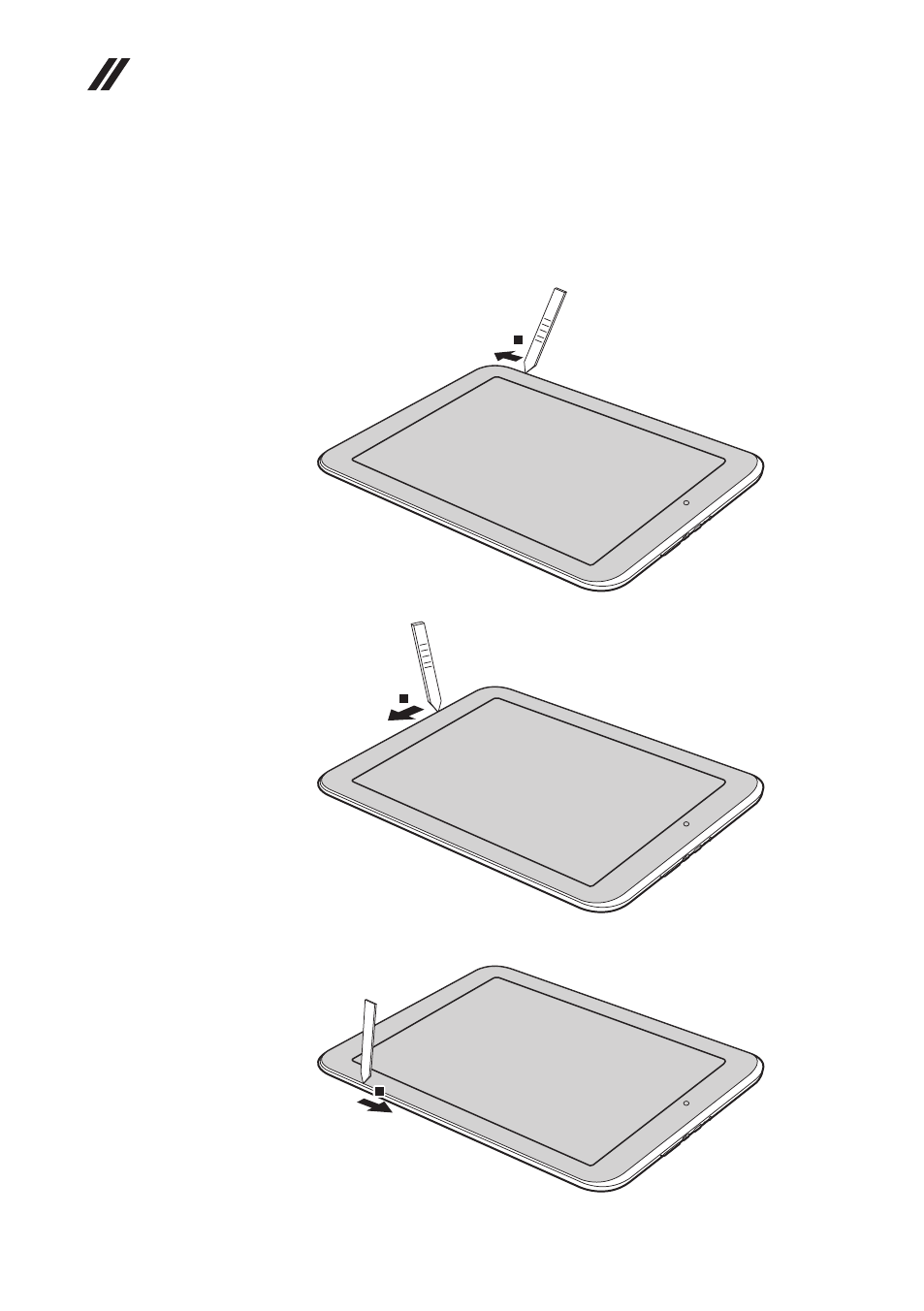

Figure 1. Removal steps of base cover (continued)
Insert the plastic plate tool between base cover and the panel module, then
slide the plastic plate tool around the tablet in the direction shown by arrows 5
6 7
to separate the base cover from the rest of the tablet.
5
6
7
