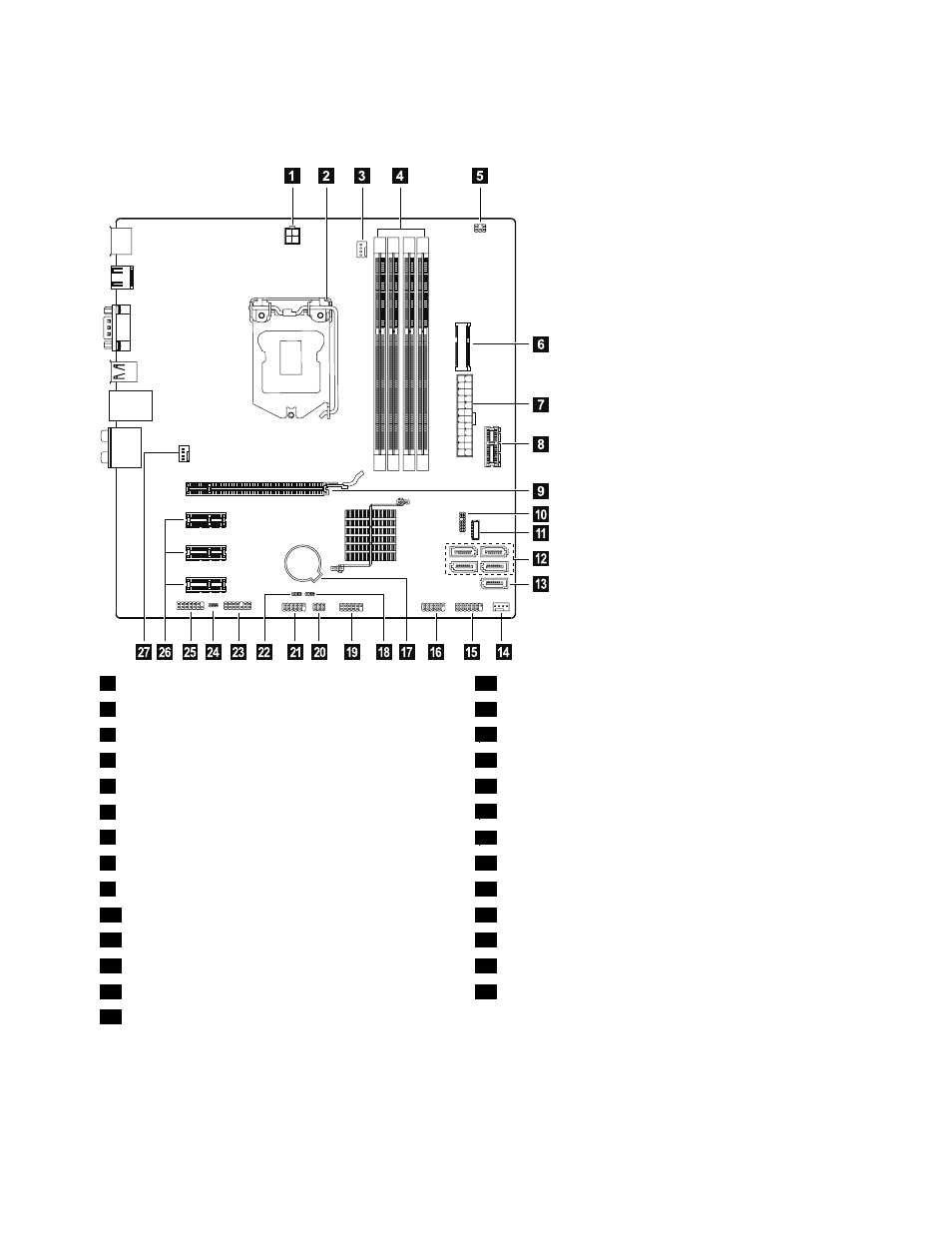

X310
1 2 3 4
7
6
8
9
5
1 5 1 6 1 7 1 8 1 4
1 0
1 1
2 1 2 2 2 0 1 9
1 2
1 3
2 3 2 4 2 5 2 6 2 7
1 12V power connector 15 Front panel connector
2 Microprocessor and heat sink 16 Front USB 2.0 connector
3 Microprocessor fan header 17 Battery
4 Memory slots (4) 18 Clear CMOS jumper
5 Thermal sensor header 19 Front USB 3.0 connector
6 Mini PCI-E slot 20 Mode switch connector
7 Power connector 21 Serial (COM2)connector
8 Front USB 3.0 slot 22 ME disable jumper
9 PCI express X 16 adapter slot 23 LPC debug connector
10 SPI debug connector 24 Clear CMOS jumper
11 Solid state disk power connector 25 Front audio connector
12 SATA connectors (4) 26 PCI express X 1 adapter slots (3)
13 eSATA connector 27 System fan header
14 Power fan header
24 Lenovo Erazer X310 Hardware Maintenance Manual
