Bracket details, Exhibit 3-1 the expresssas r348 adapter brackets, Exhibit 3-2 the expresssas r380 adapter brackets – ATTO Technology R348 v User Manual
Page 11
6
For Windows Vista
• Windows Vista detects your adapter and
automatically installs the required drivers.
If drivers do not load, refer to
Install drivers
on
page 3 and
8
Connect SAS devices: insert SAS cable from each
device to a connector on the ATTO ExpressSAS host
adapter until you hear a click.
Use the ATTO Configuration Tool to configure RAID
groups. Refer to the ATTO Utilities Installation and
Operation Manual for complete information.
Bracket details

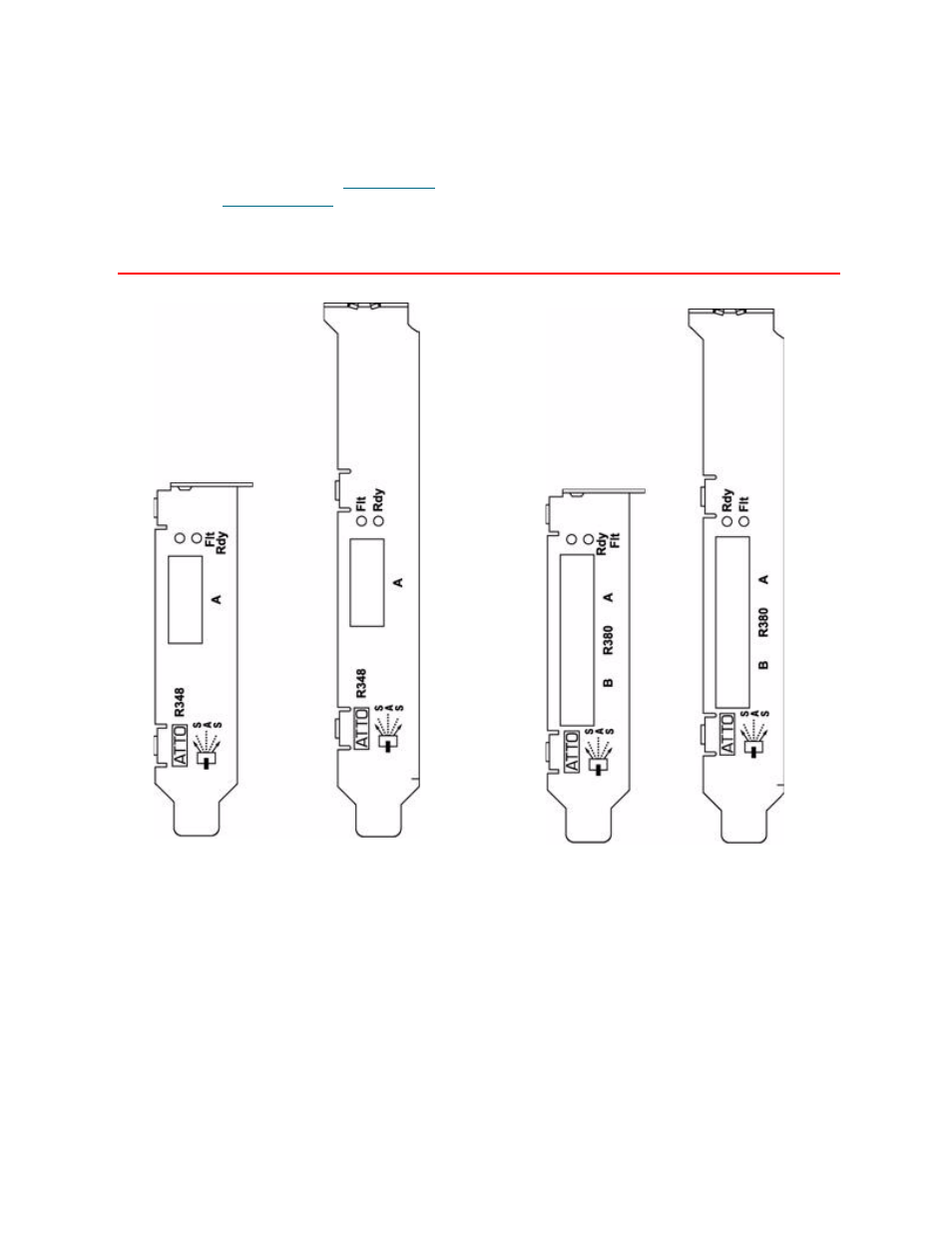

Exhibit 3-1 The ExpressSAS R348 Adapter brackets
Exhibit 3-2 The ExpressSAS R380 Adapter brackets
